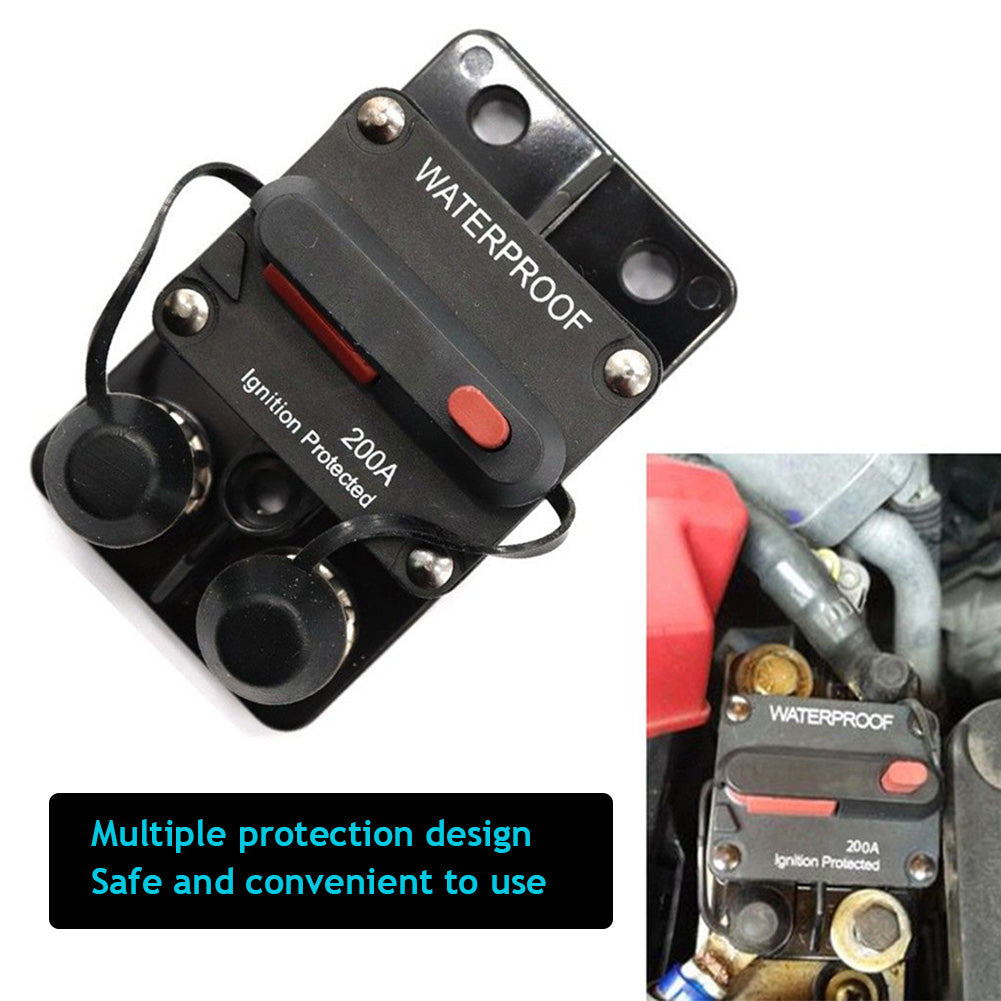

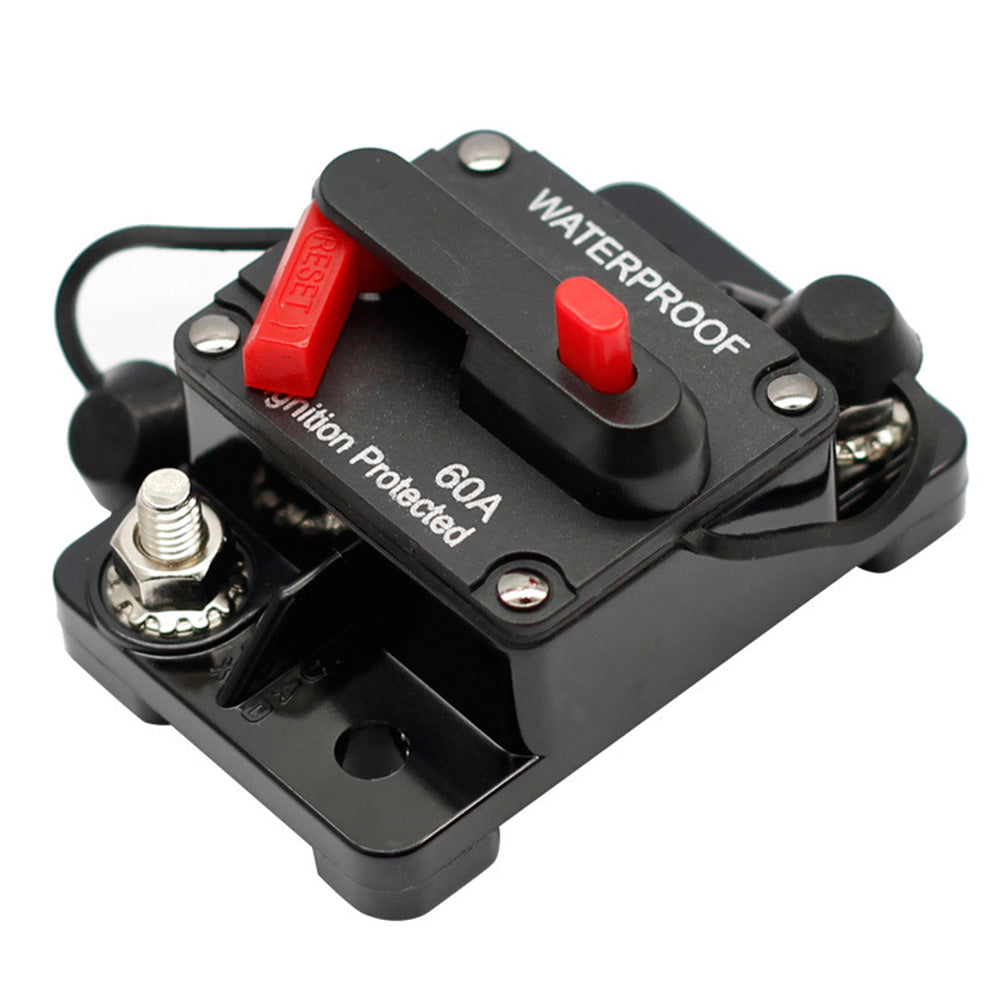

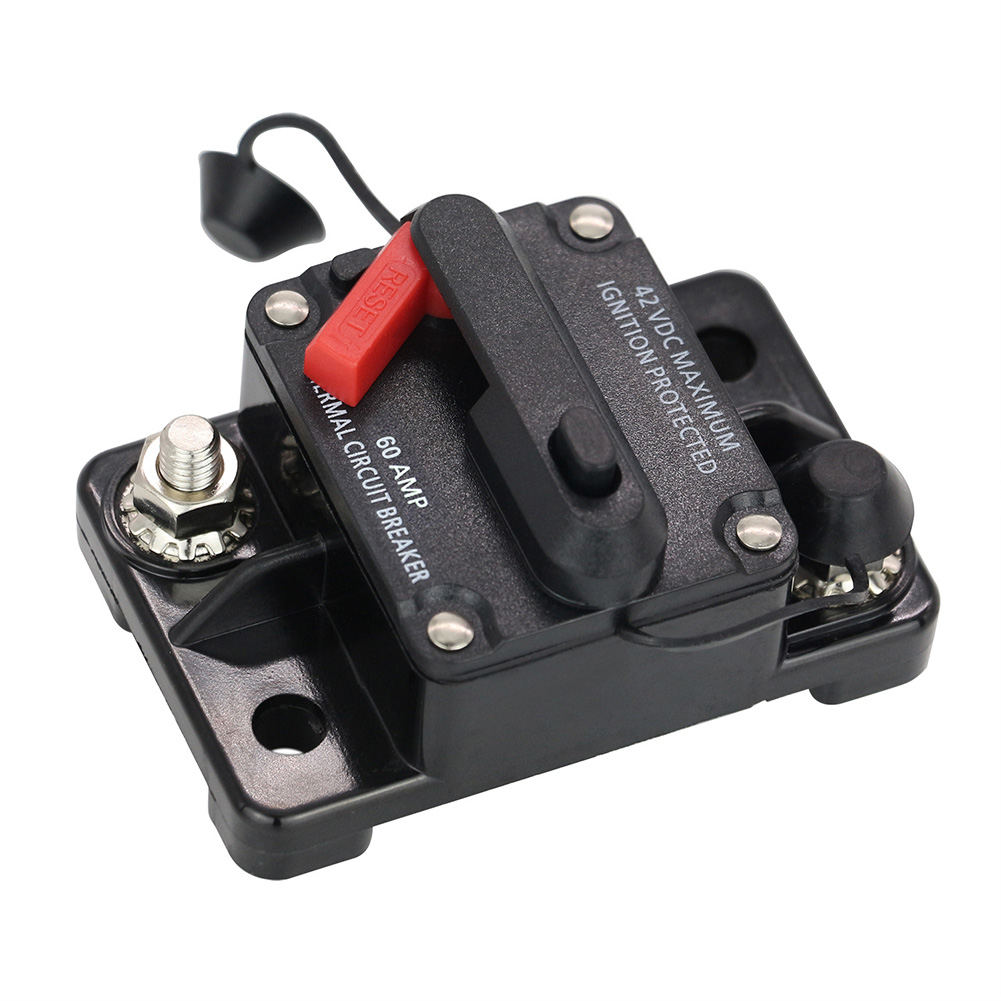

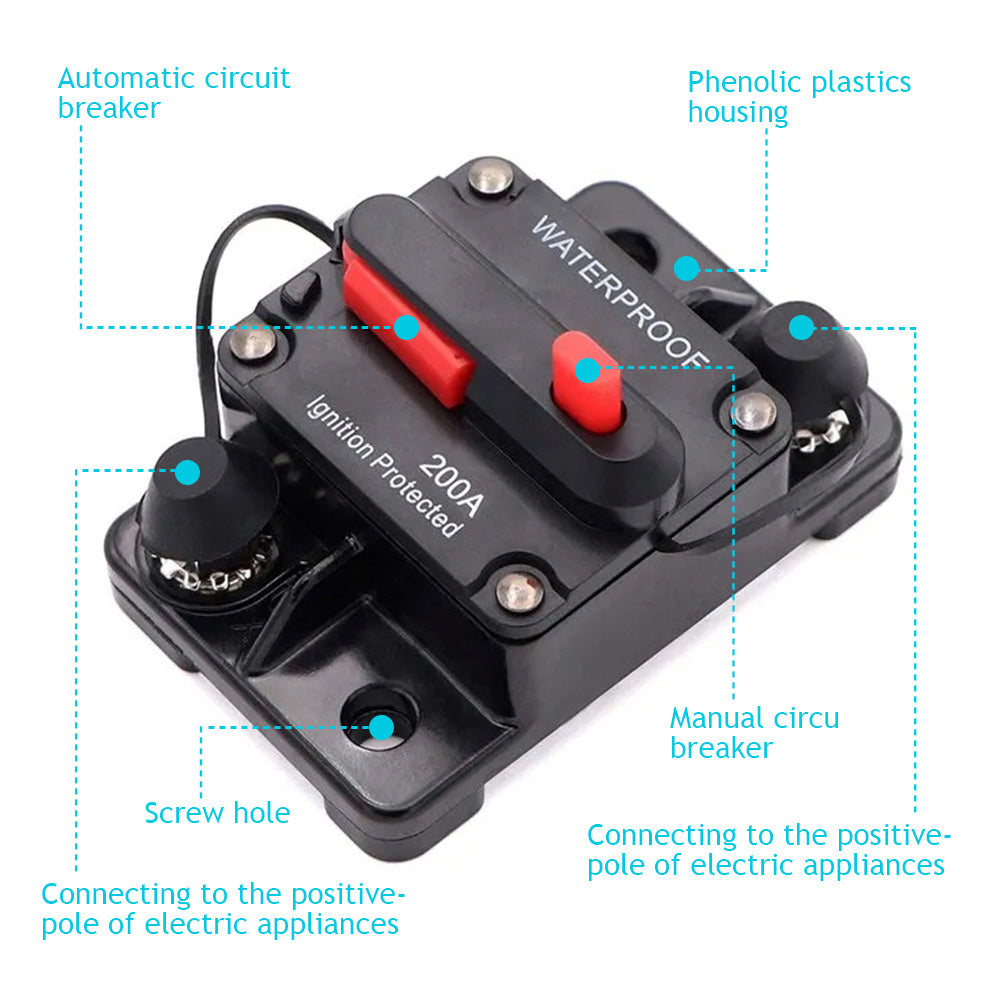

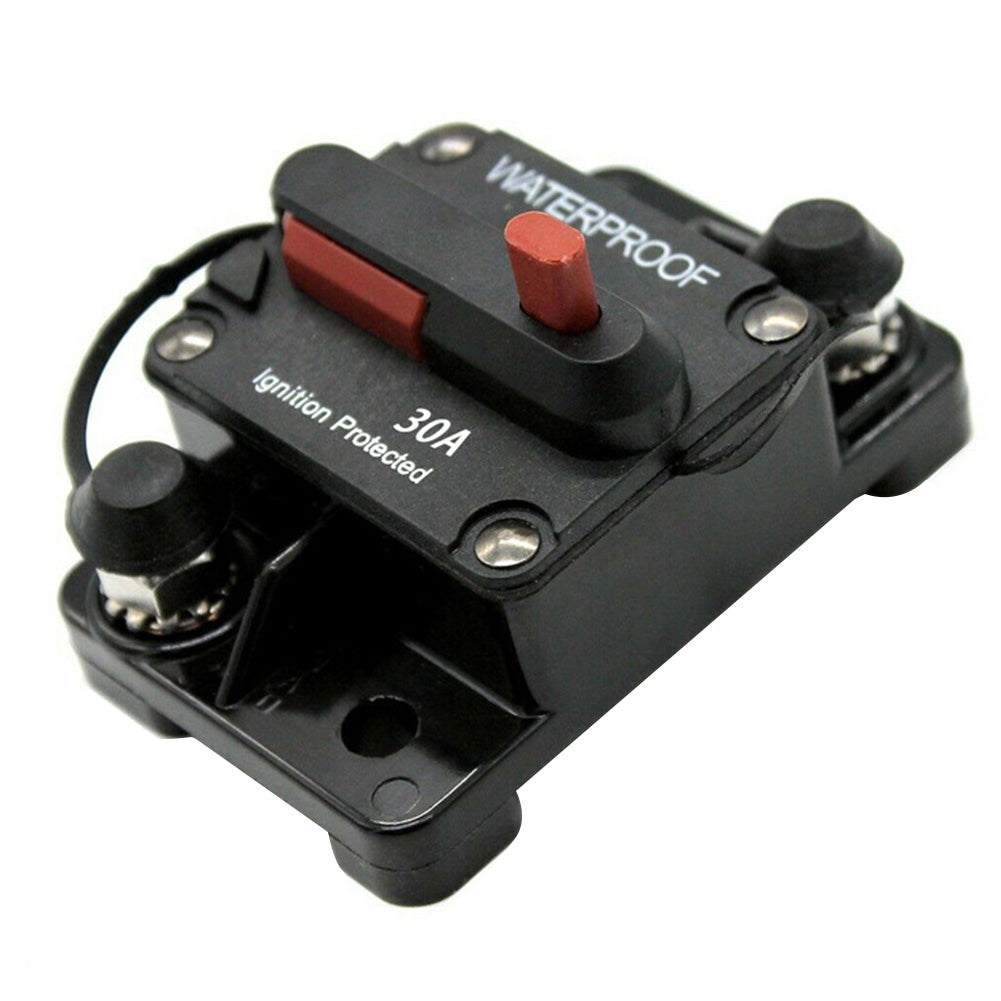

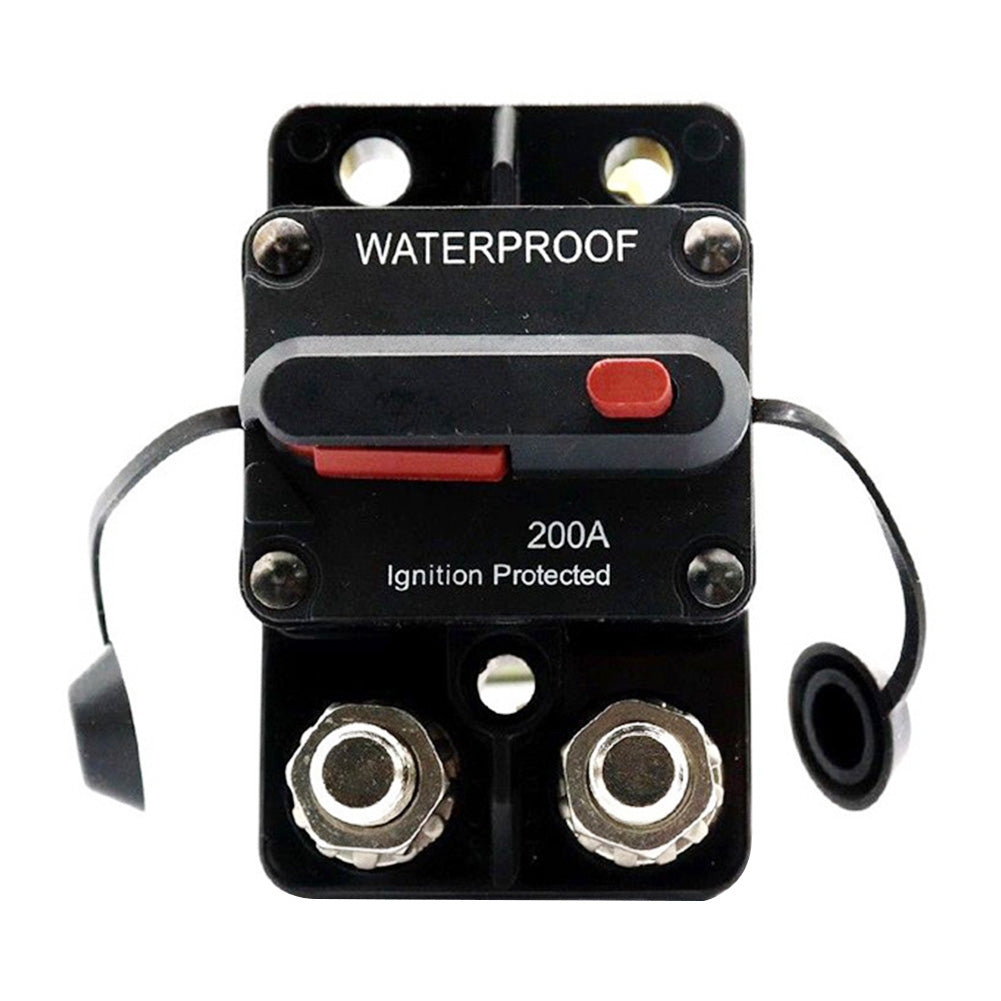

Main Features:

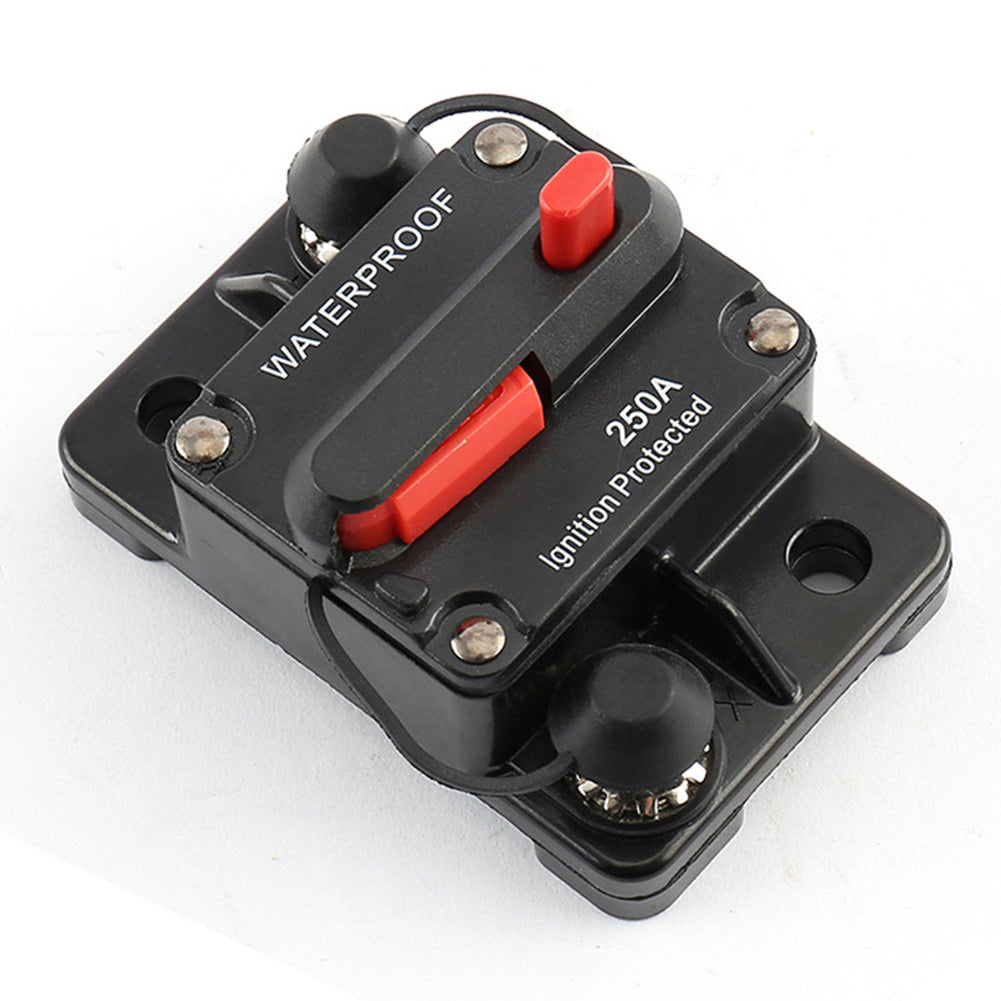

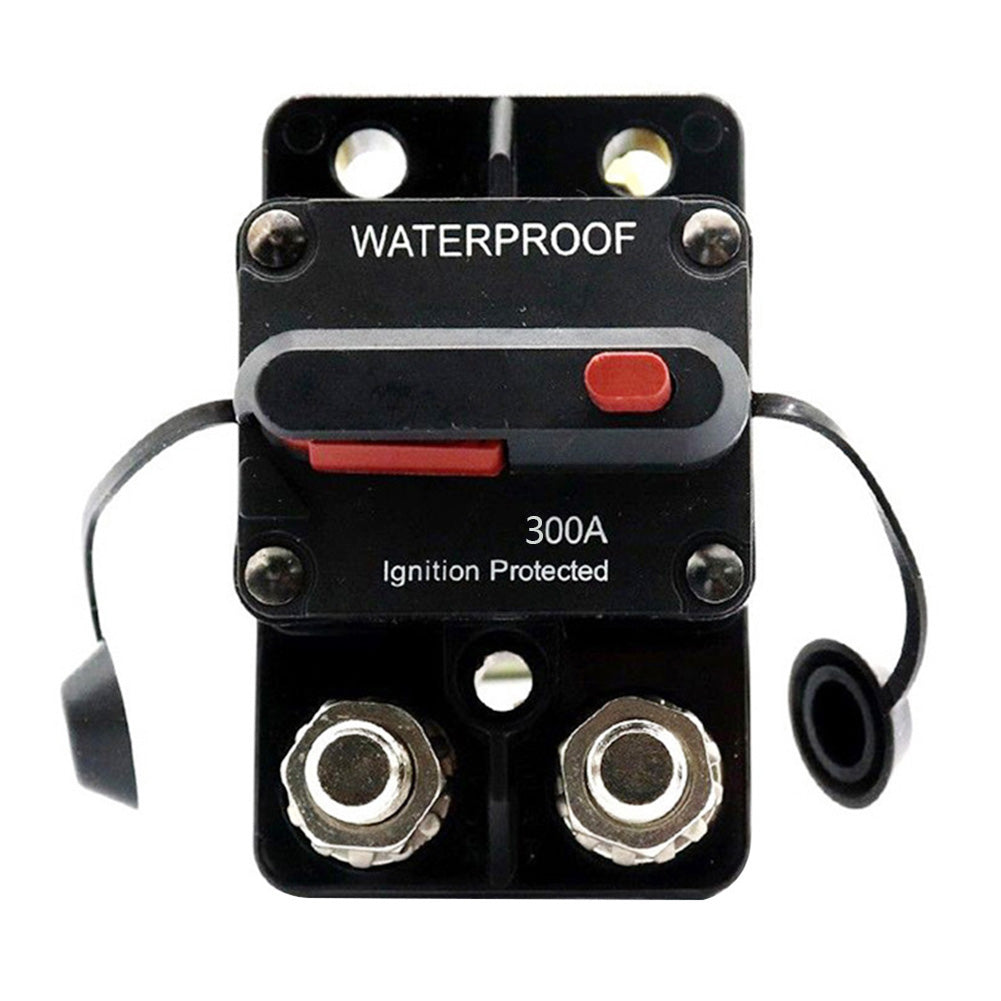

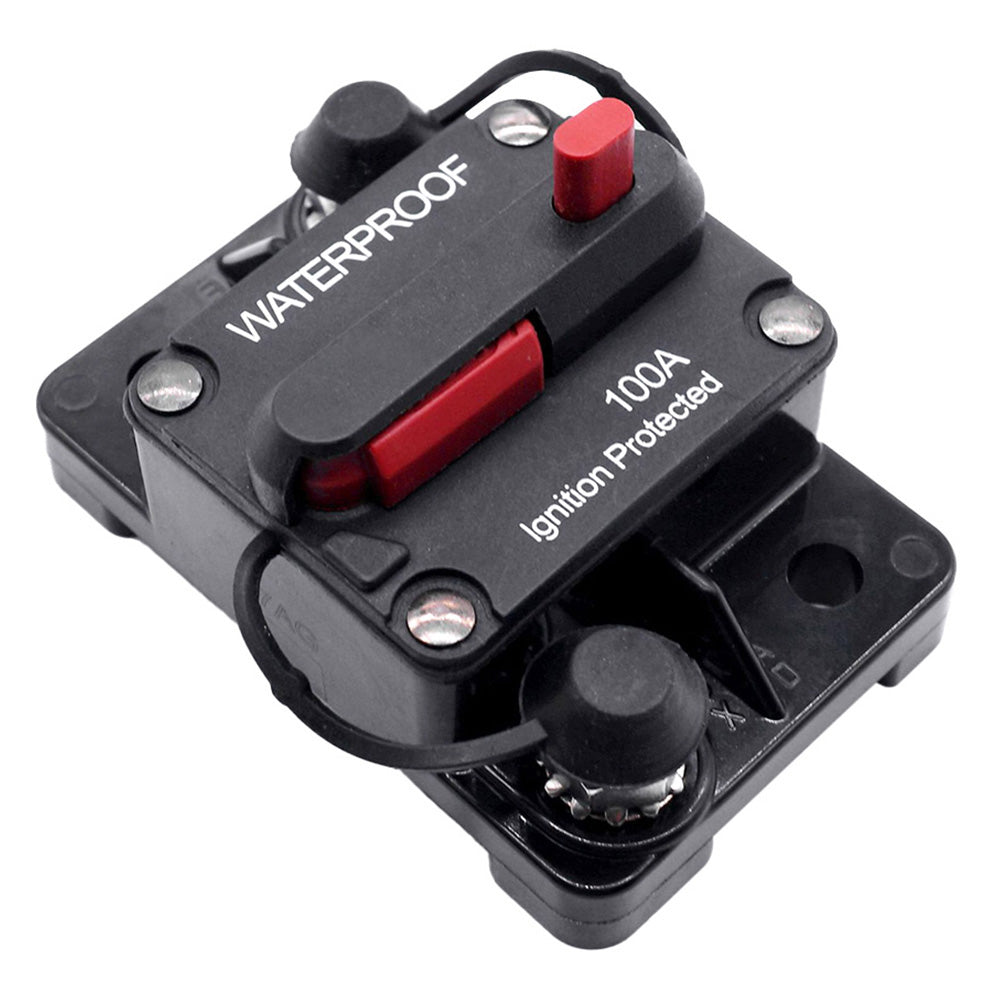

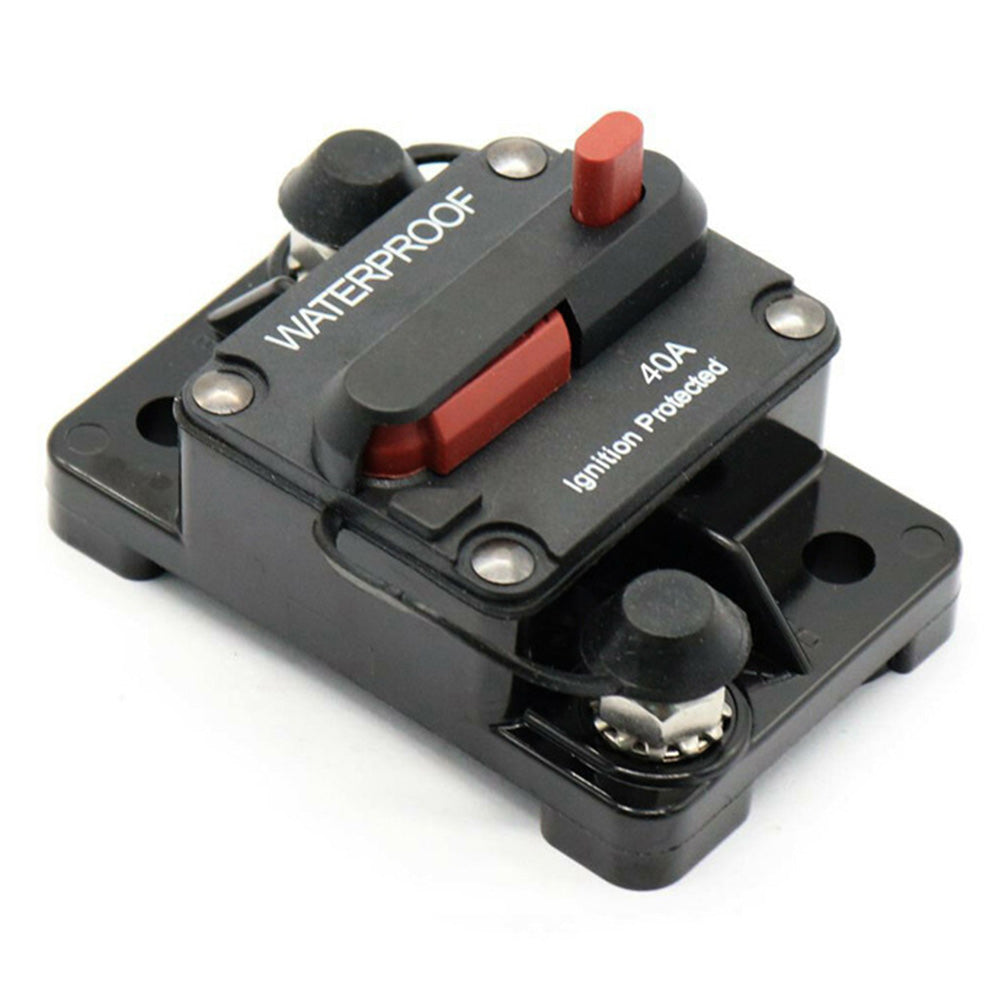

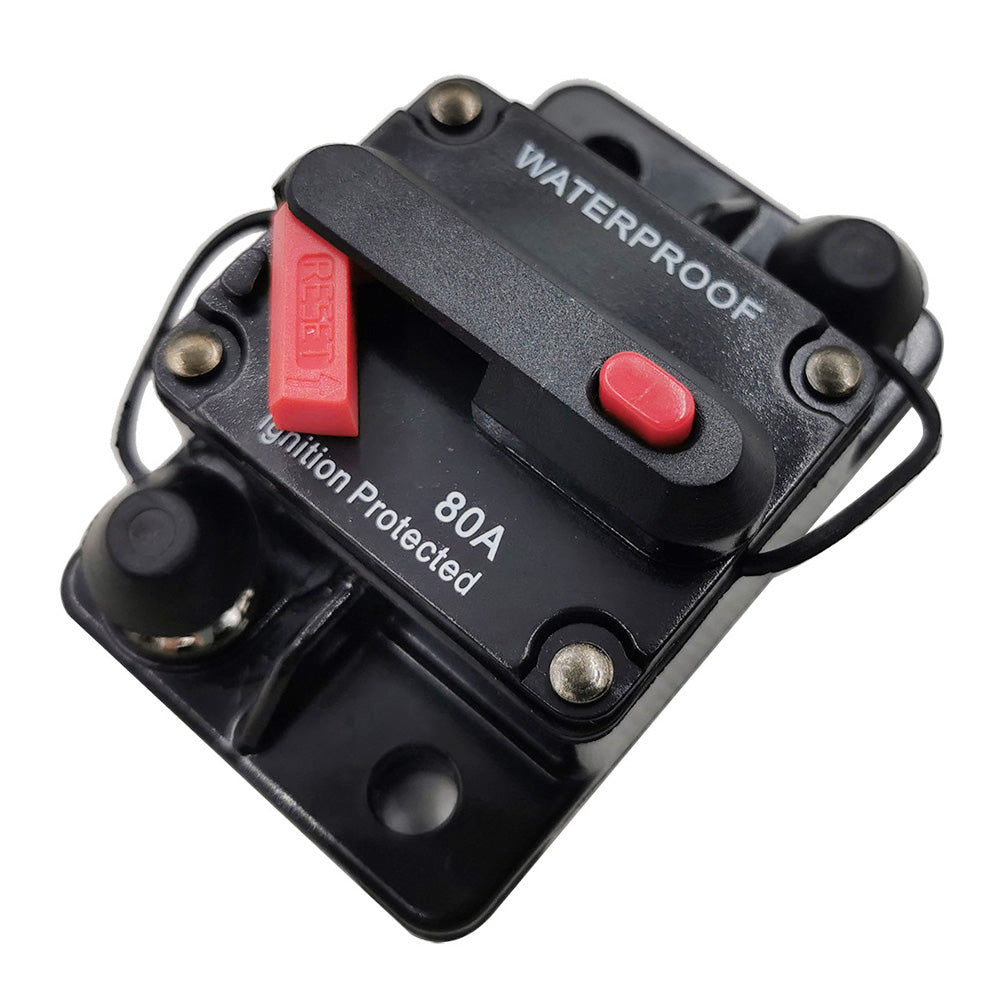

- High amp thermal trip circuit breaker with manual reset switch.
- When the circuit current exceeds the rated current of the product, the fuse will burn out and automatically disconnect, which can effectively protect electrical appliances
- Suitable for other electrical systems. Very suitable for use in harsh environments such as racing, to provide current overload or short circuit protection.
- Rubber protective caps can prevent unnecessary short circuits.

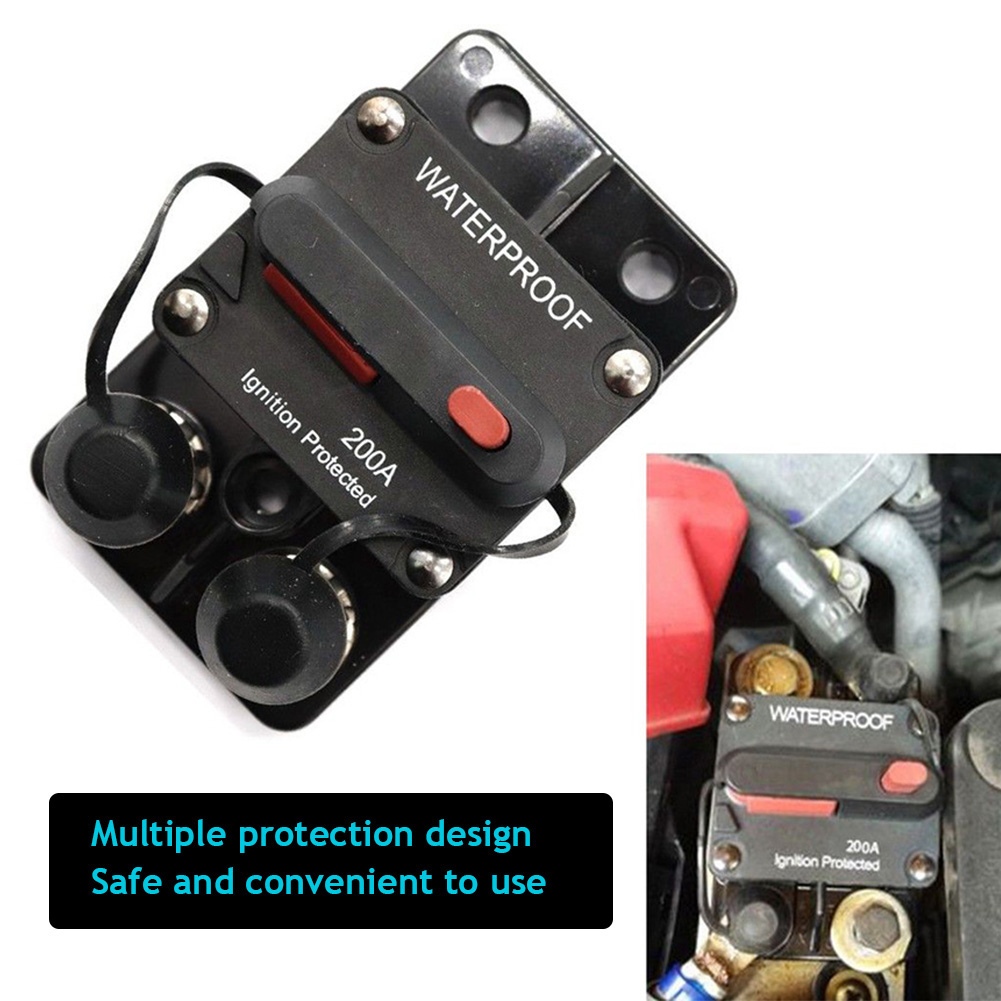

- Commonly used in truck, bus, RV, and ship applications;
- Also used for battery costs and audio systems.
- Switchable surface mounted circuit breakers are commonly used
- Auxiliary and accessory circuits for trucks, buses, Recreational vehicle and marine systems.
- Sealing and waterproofing devices for the engine compartment and bilge area.
- The trip switch manual can quickly disconnect circuits in emergency situations.

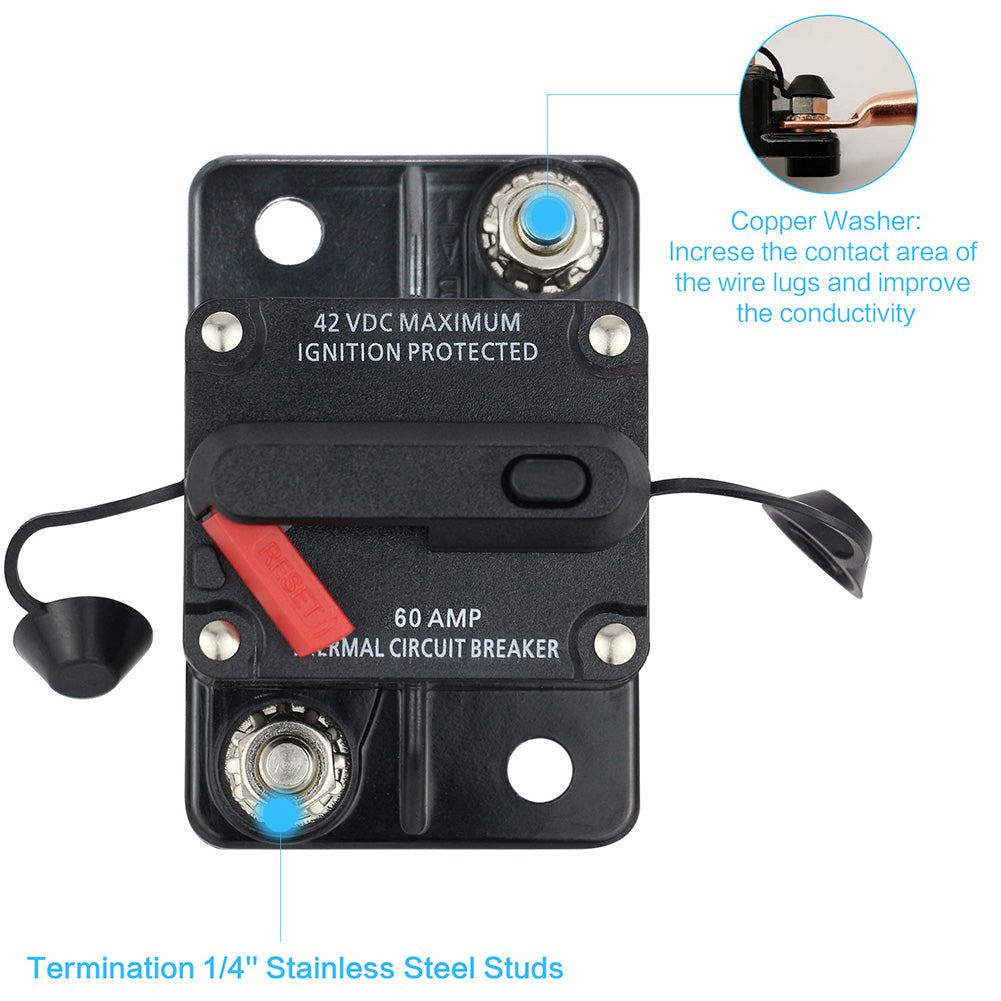

- Connecting bolt size - M6 x 2 nuts with integrated locking ring to prevent loose due to vibration.

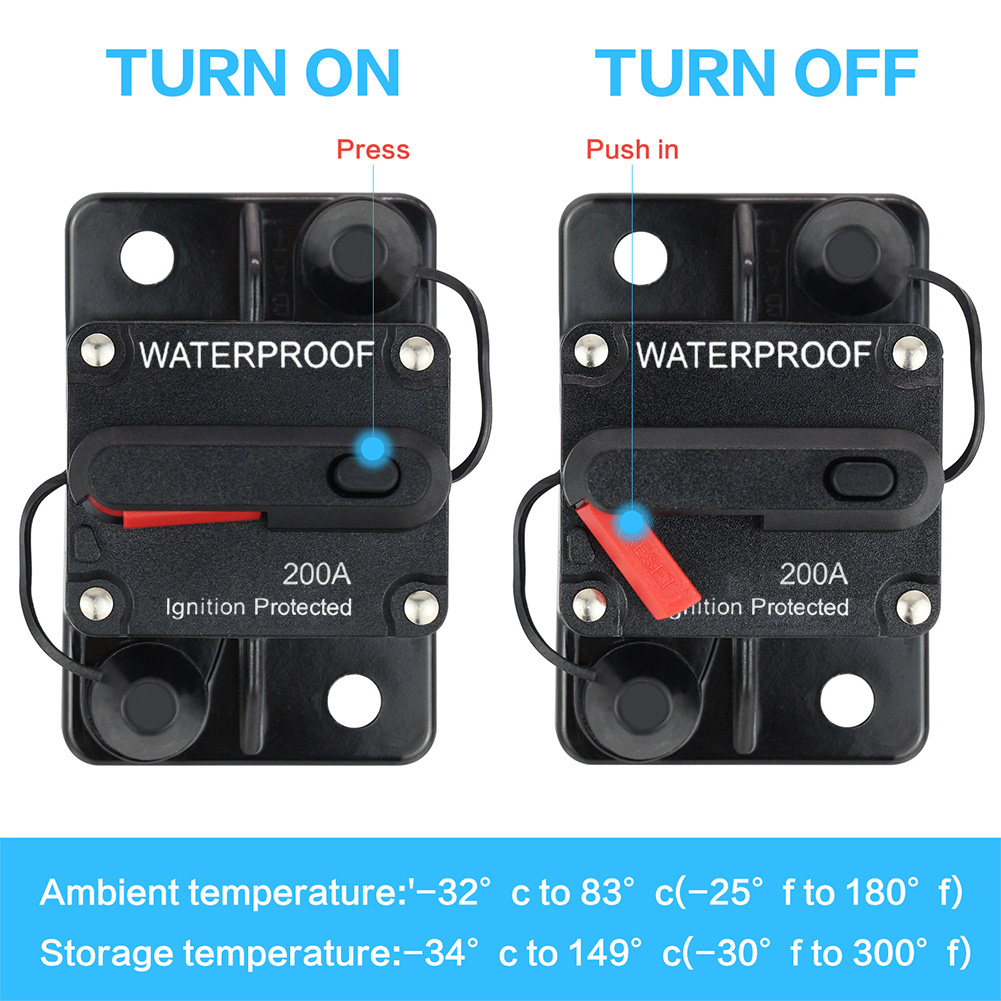

How to use: Working method:
- Open circuit protection: When the current reaches the disconnection value,the long handle automatically pops open and cuts off the power.Generally, the short-circuit situation jumps off.

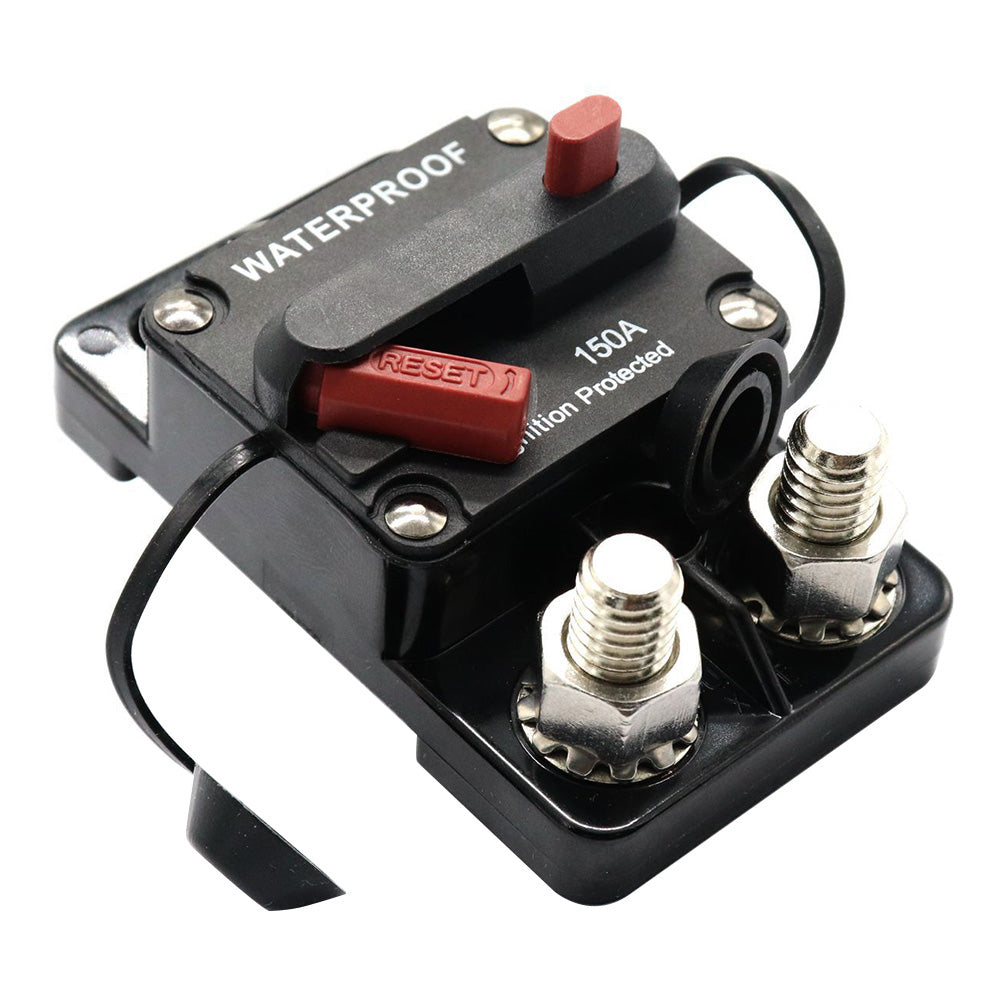

- After the fault is removed, press the long handle back to the original.Bit can form a pathway.

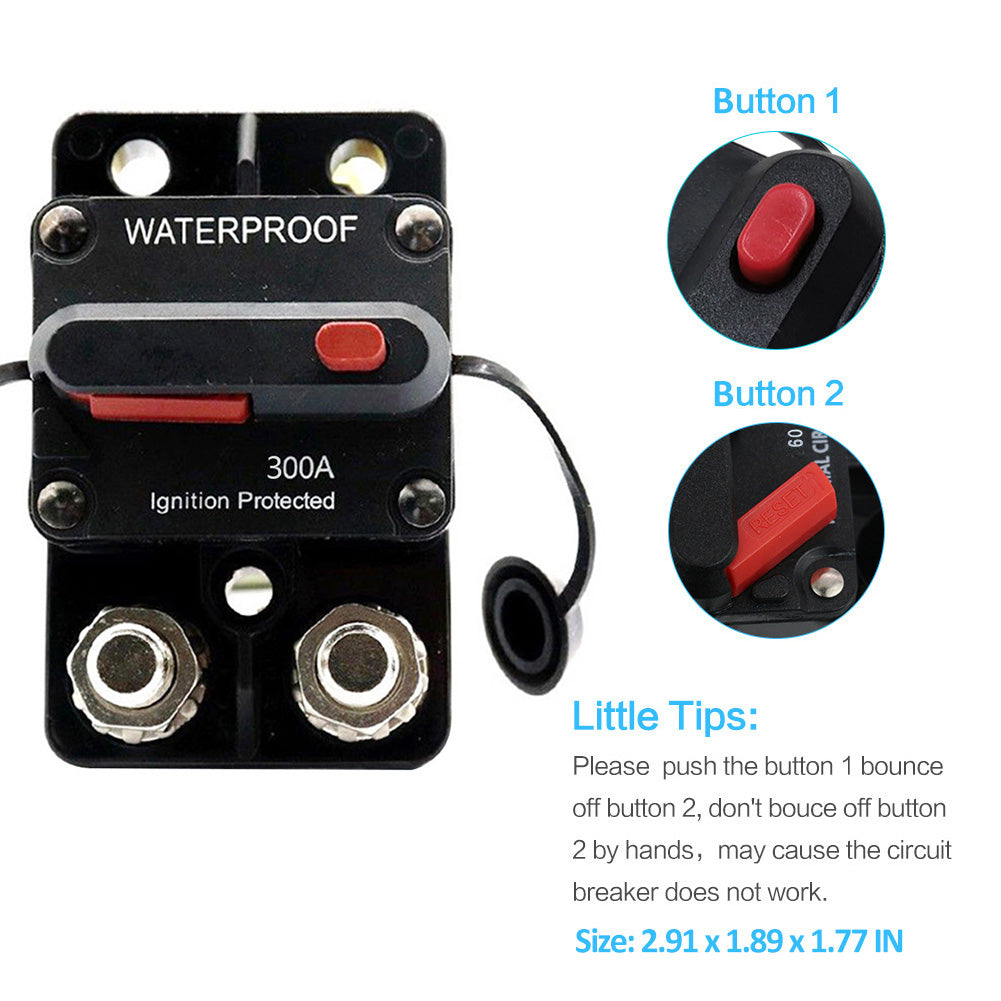

- Manual power off: We need to disconnect the circuit during the modification,and directly press the oval red button on the fuse.At this time, the long handle automatically pops open to cut off the power.
- Connect it as above, then press the long handle back to the original position.
Specification:
- Material:Thermoplastic+Metal

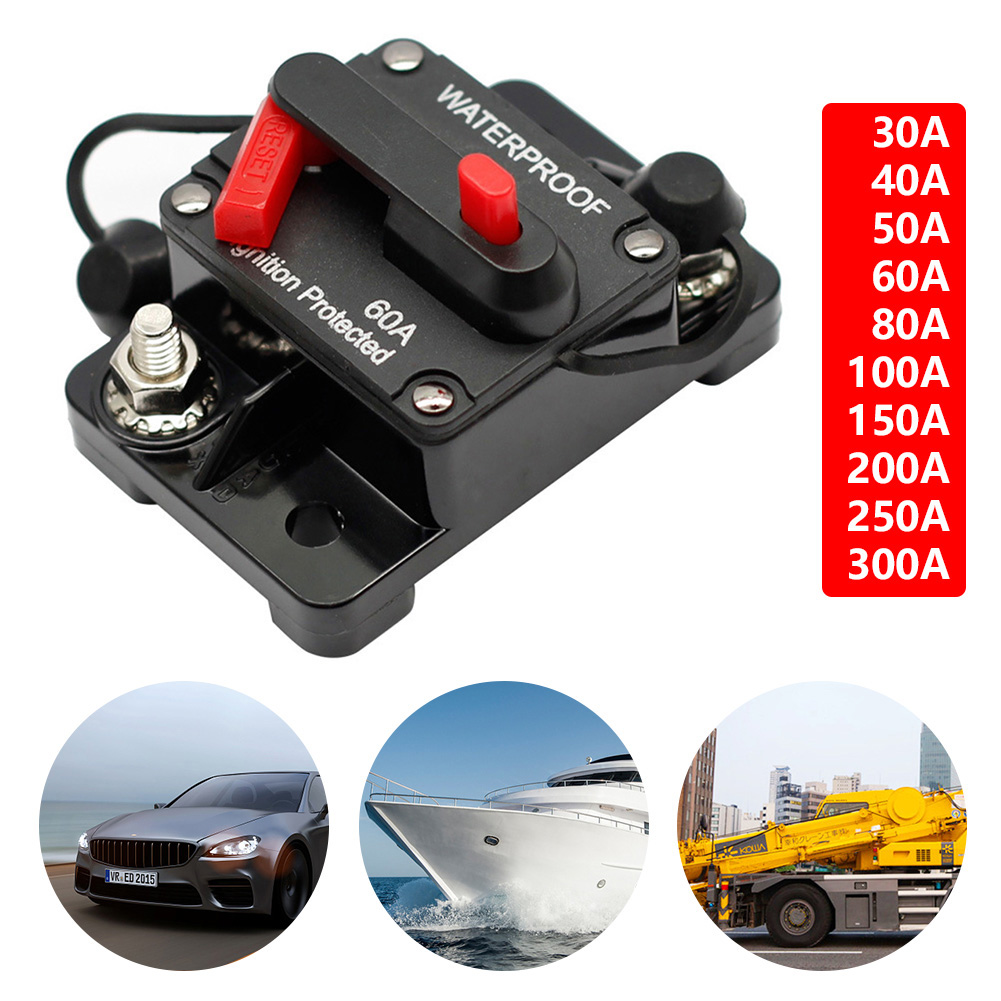

- Circuit rating: 30A, 40A, 50A, 60A, 70A, 80A, 90A, 100, 120A, 140A, 150A, 200A, 250A, 300A (optional)
- Voltage rating: 12-48 V
- Interrupt rating: 3000A @ 30 V
- Operating temperature: -32 ° C to 82 ° C
- Storage temperature: -34 ° C-149 ° C
- Number of poles: 2
- Weather rating: IP67
- Size:74mm /2.91inch x49mm/1.92inchx44mm/1.73inch
- Color:Black
Package Included:
- 1Pc x Circuit Breaker(Terminal and gasket not included)
Note:
- Please allow 1-3cm differences due to manual measurement.
- Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!
No Retail Box,Packing Safely in Bubble Bag.
