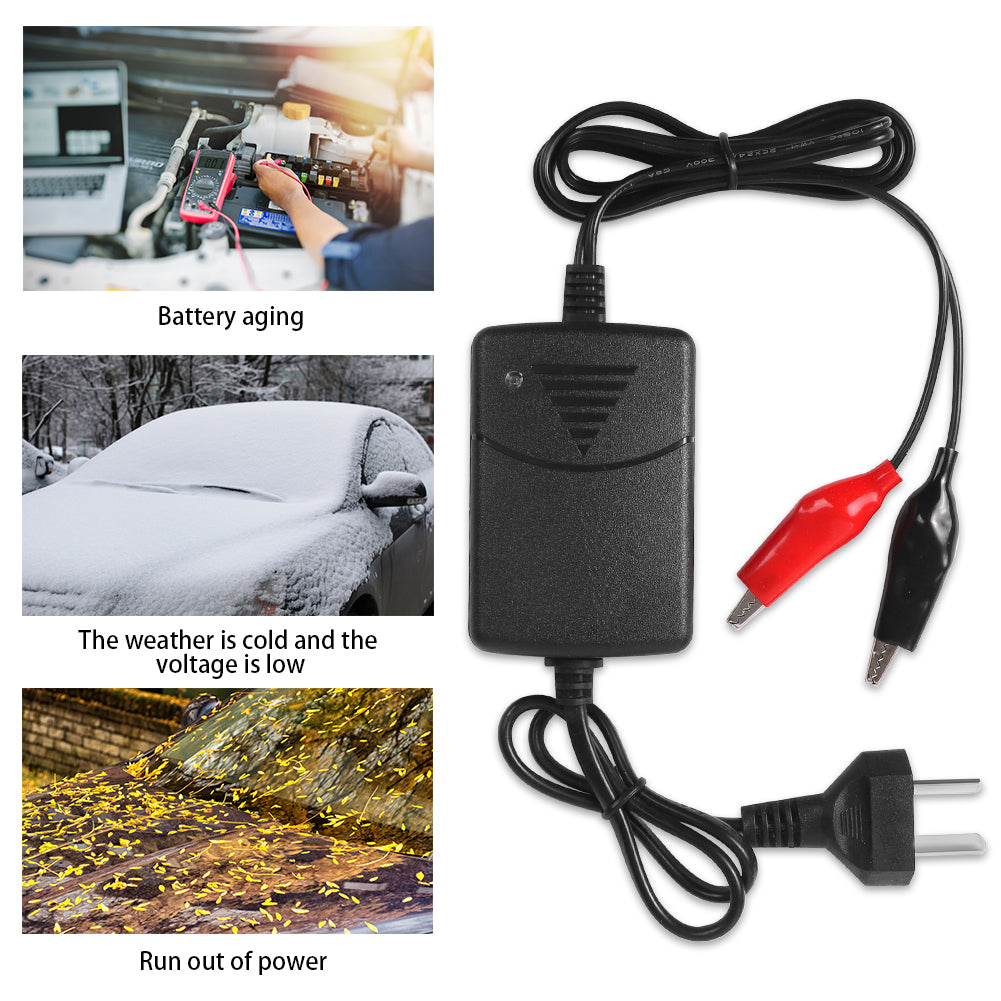

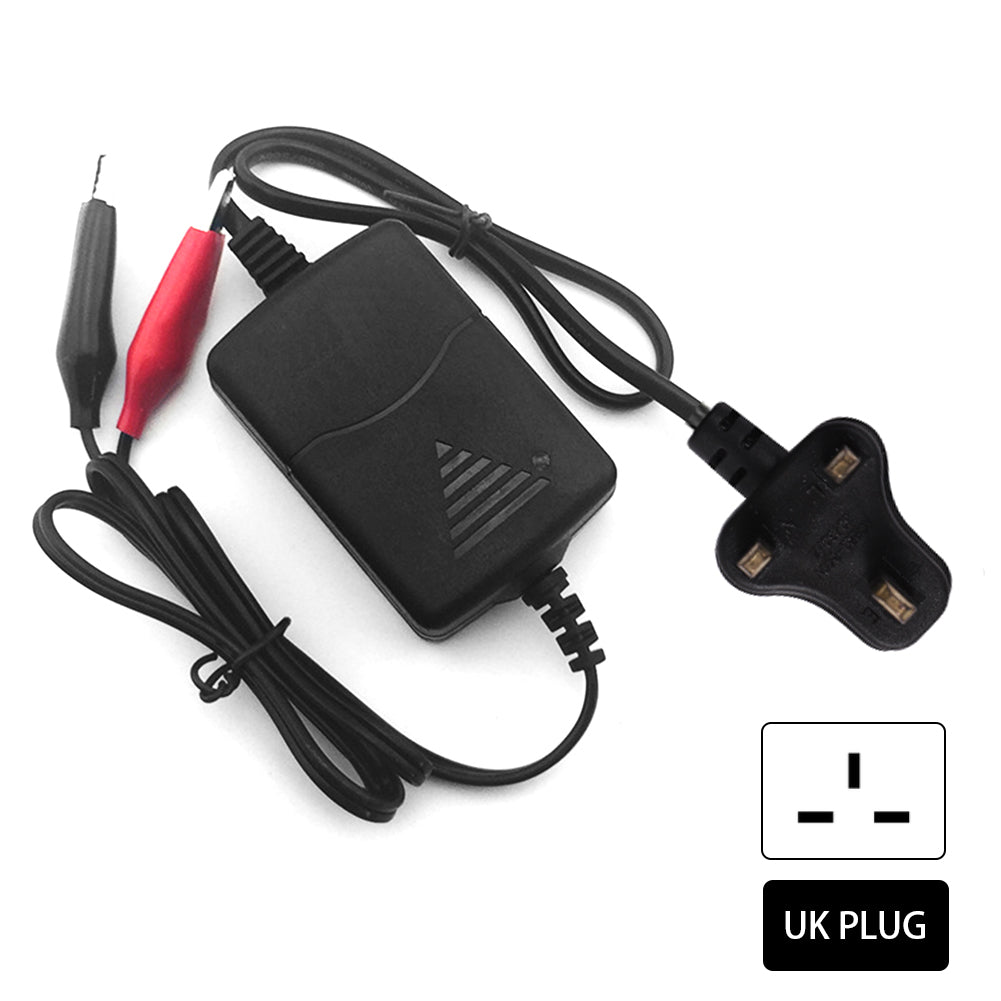

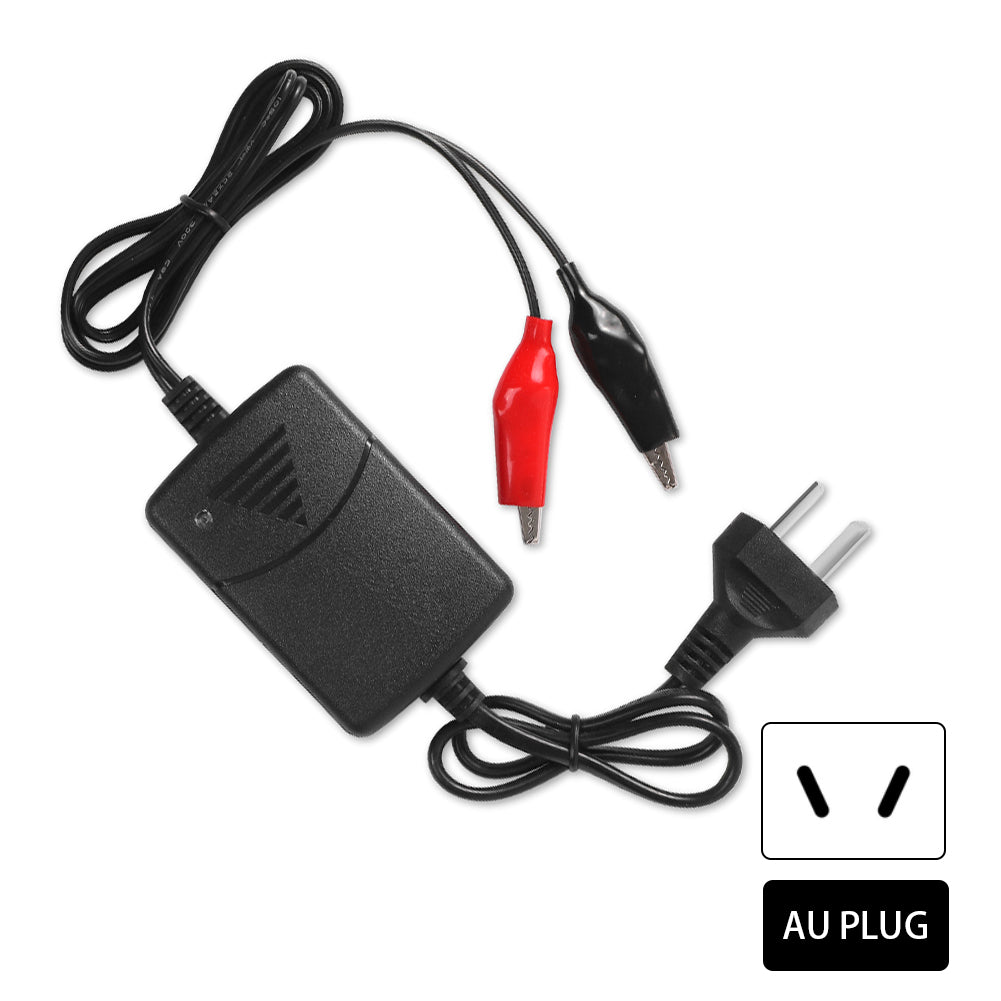

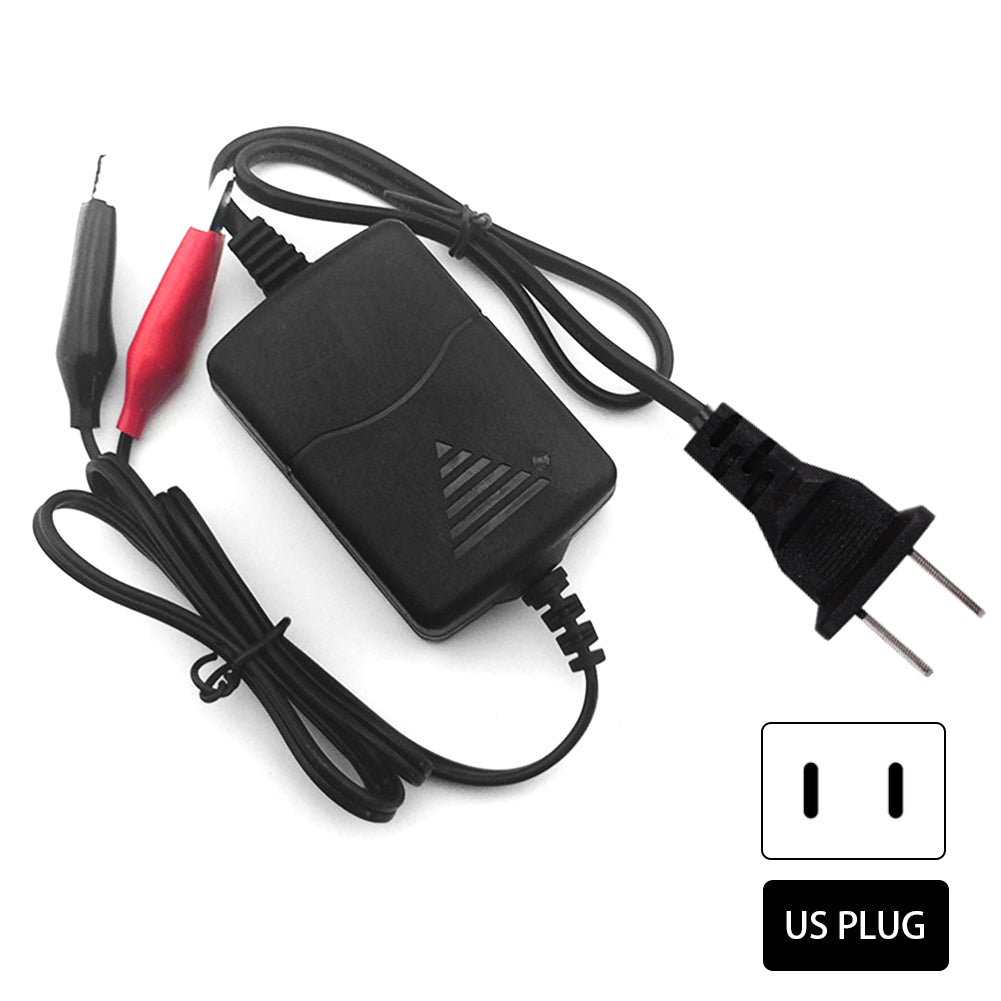

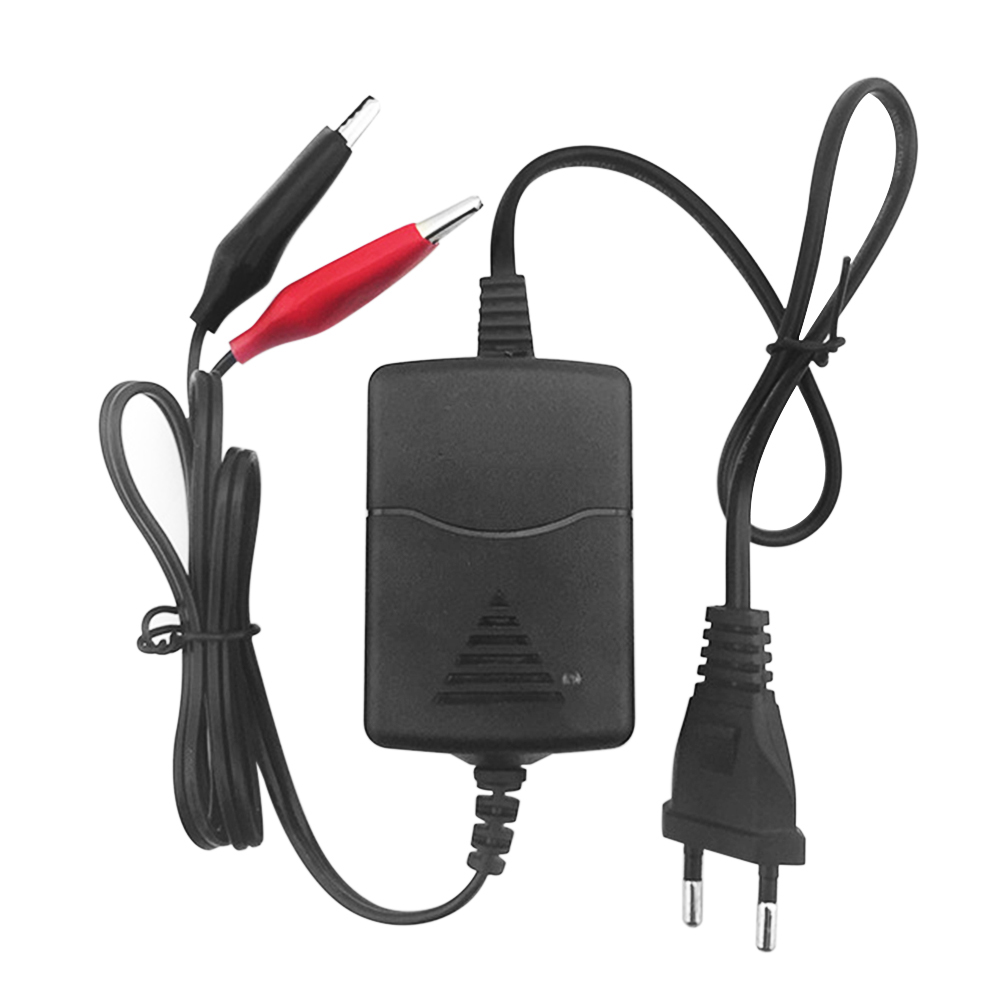

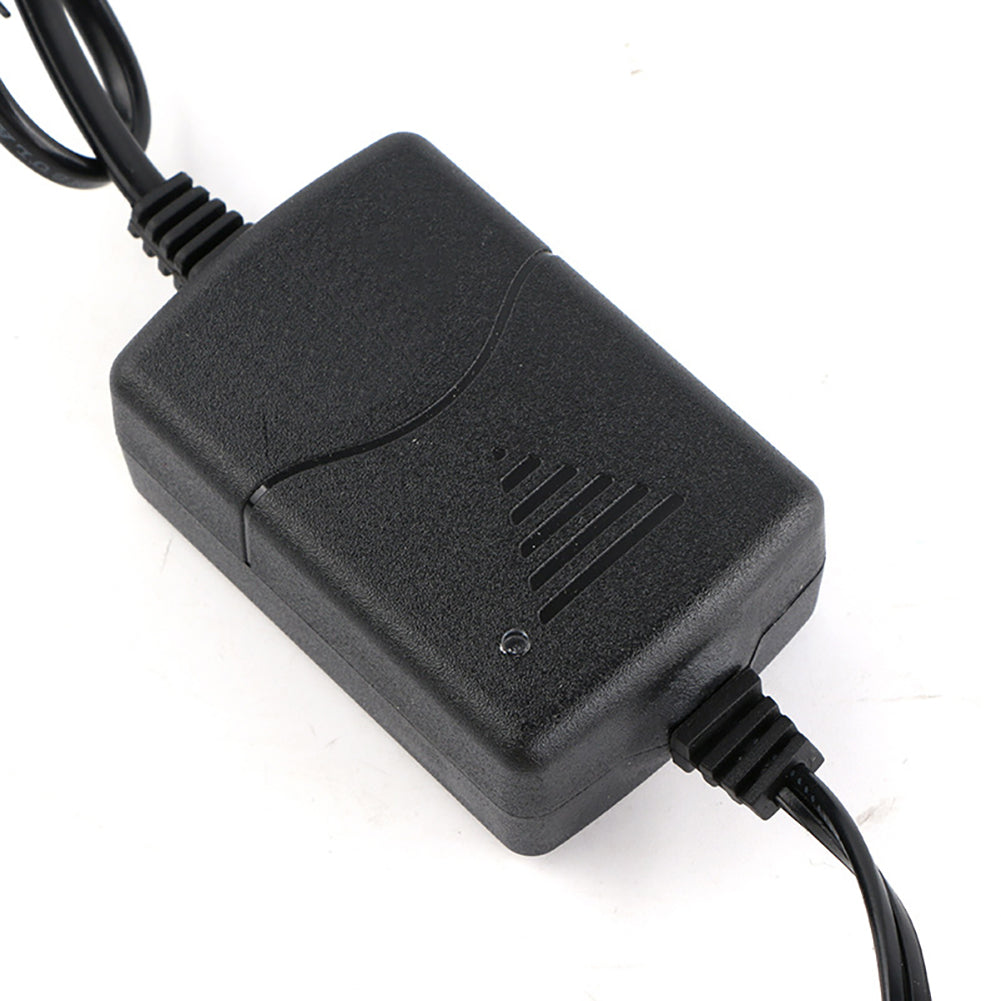

Features:
- Made of ABS engineering plastic and PVC, increases its service life,with strong corrosion resistance, abrasion resistance, and good conductivity.
- Float charger,self repair, fully charged variable light, can effectively protect the battery.

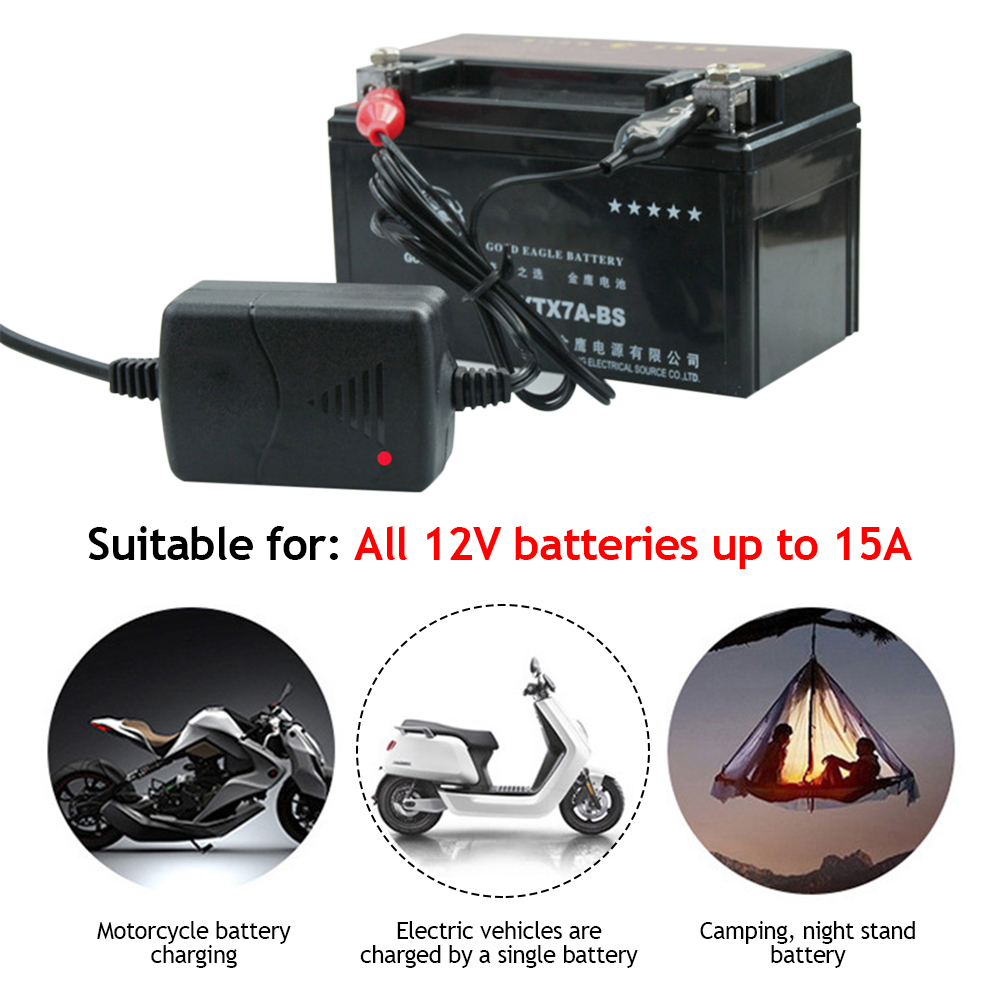

- Suitable for charging motorcycles, electric toys, and other water/gel/maintenance free lead-acid batteries.
Instructions for use:
- 1. The red clip is connected to the positive electrode of the battery, and the black clip is connected to the negative electrod.

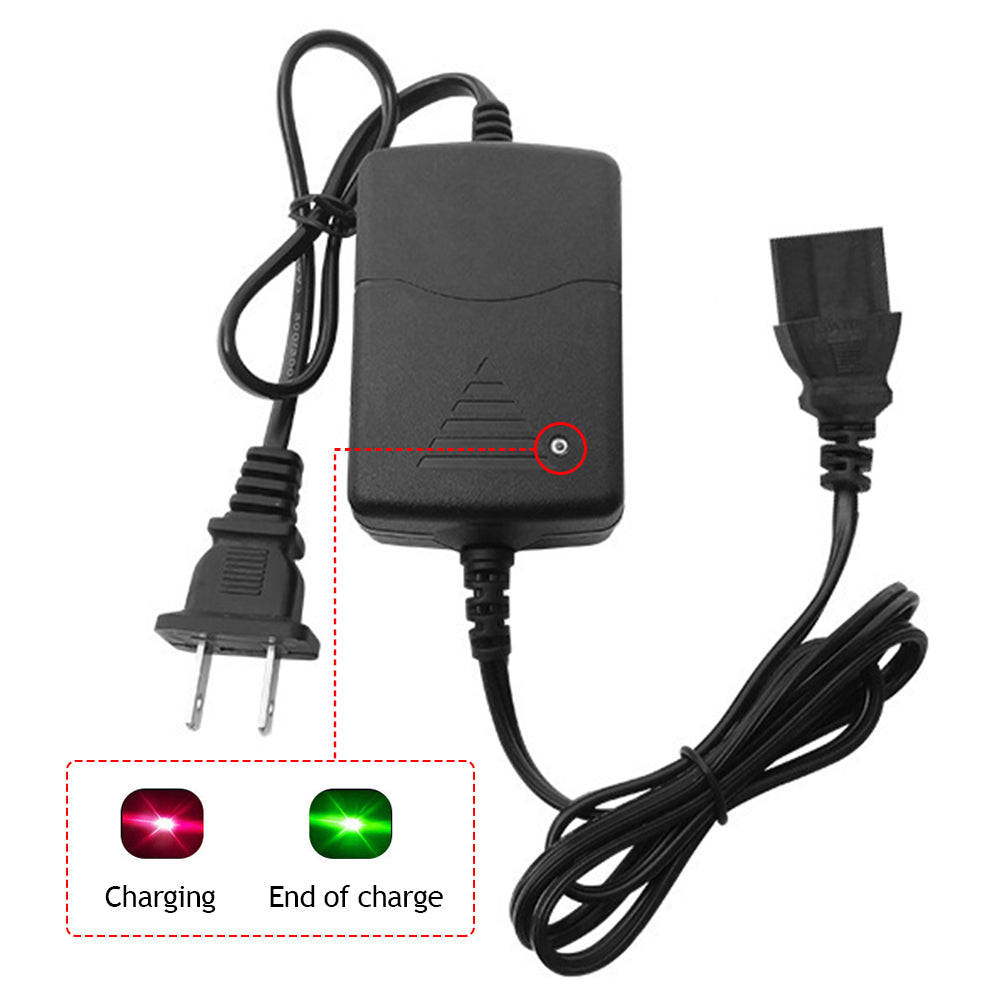

- 2.When the city power is connected, the red indicator light is on, and the charging enters the fast and slow charging stages.
- 3.When the green indicator light turns on, the charging enters the floating charging state.
- 4.At this time, if the battery is not in urgent need, it can continue to be charged until it is fully charged (fully charged will automatically stop charging).
Specification:
Material:ABS+PVC
- Size:85 * 48 * 30 (mm)/3.35*1.89/1.18
- Color:As Picture
- Performance: 13.8V1A (12V1300mA)
- Floating charge voltage: 14.2V ± 0.5V
- Constant voltage output voltage: 13.8V ± 0.5V
- Constant current charging current: 0.85-1.25A
- Conversion current: 450-550mA
- DC maximum output power: 13W
- Efficiency: ﹥ 84% (maximum output voltage, full load)
- Input voltage range: 100 ～ 240V AC; 50 ～ 60Hz
- Input current: 0.05A / MAX
- Output:DC14.8V/1300mA
- Overload protection: 105% ～ 150% Type: Reset: Automatic recovery
- Temperature coefficient: ± 0.03% ℃ (0 ～ 50 ℃)
- Working temperature and humidity: -10 ℃ ～ ＋ 40 ℃ , 20% ～ 90% RH
- Storage temperature and humidity: -10 ℃ ～ + 60 ℃ , 20% ～ 90% RH
- Wiring length input: 70CM
- Output length: 40CM
Package Included:

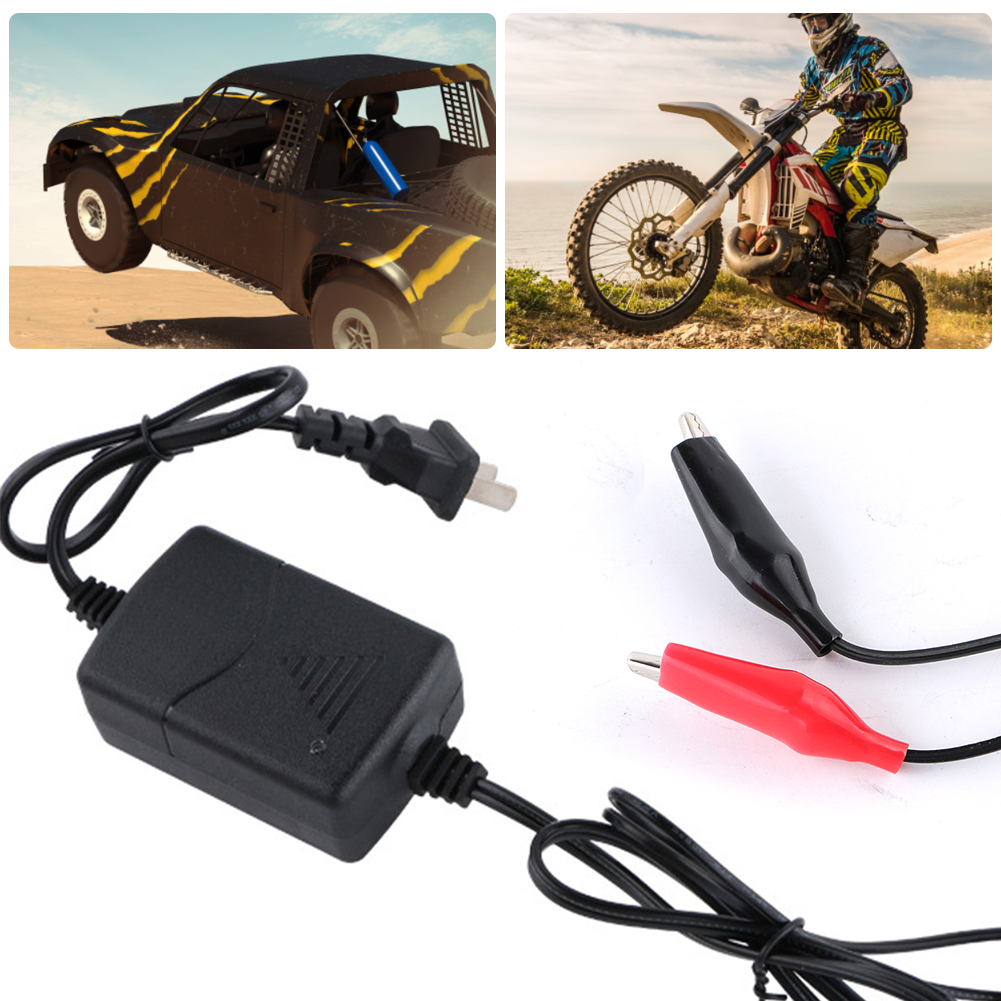

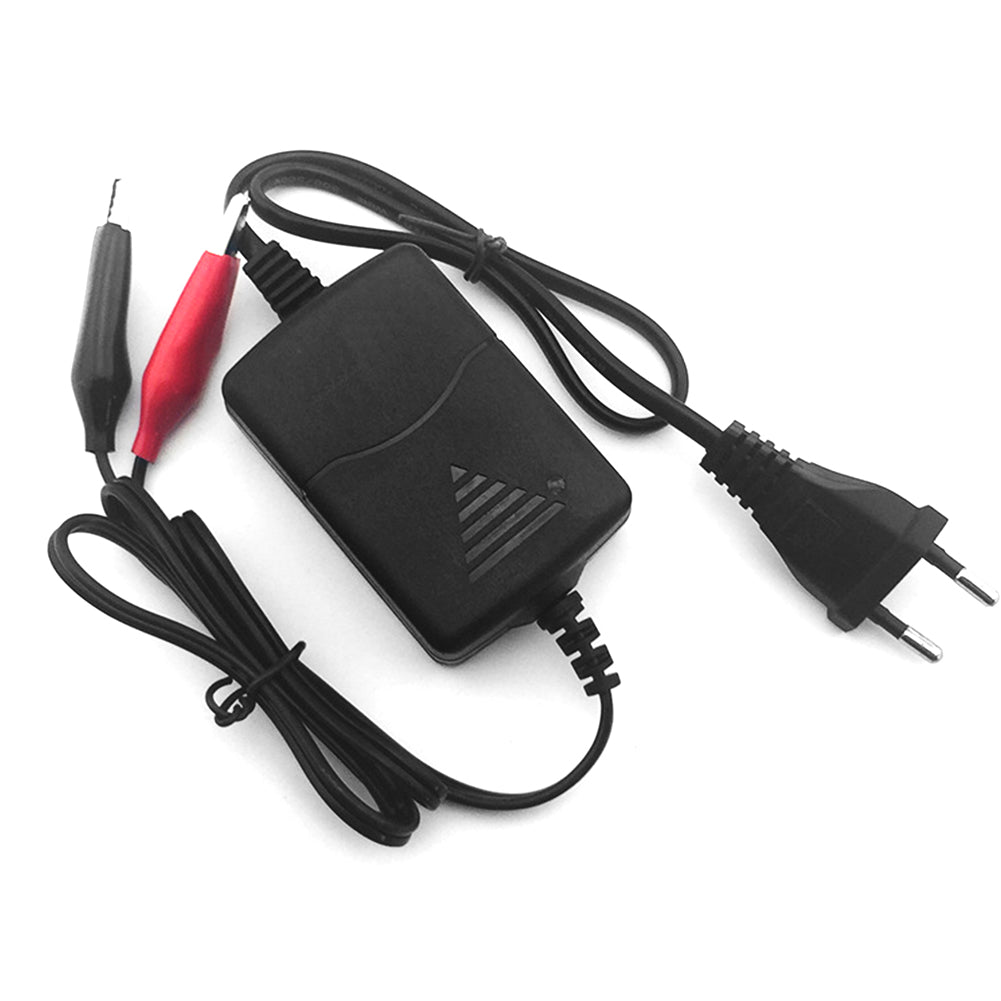

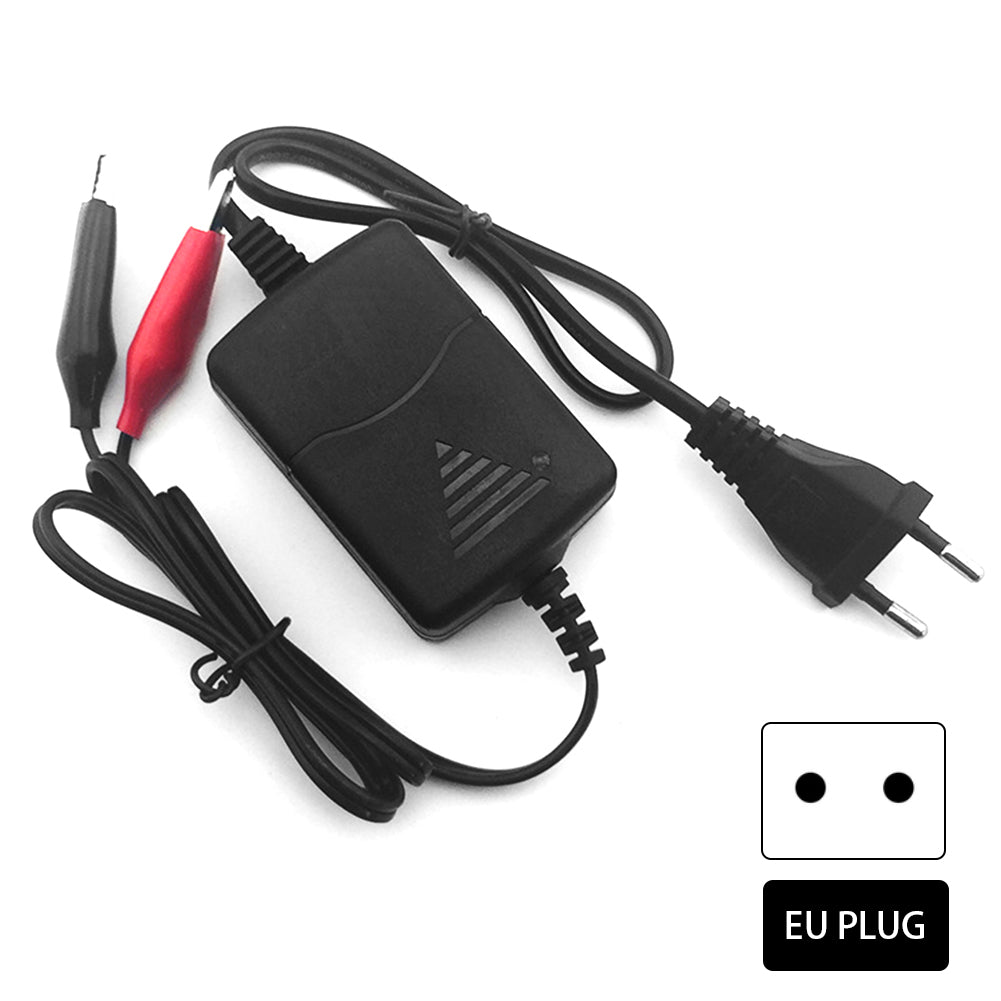

- 1 PC X Car Battery Charger
Note:
- Please allow 1-3cm differences due to manual measurement.
- Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!
No Retail Box,Packing Safely in Bubble Bag.
