Features:
- Board material: international standard boards, pads all tin-plated, high-strength fireproof and drop-proof materials, can be repeatedly disassembled.

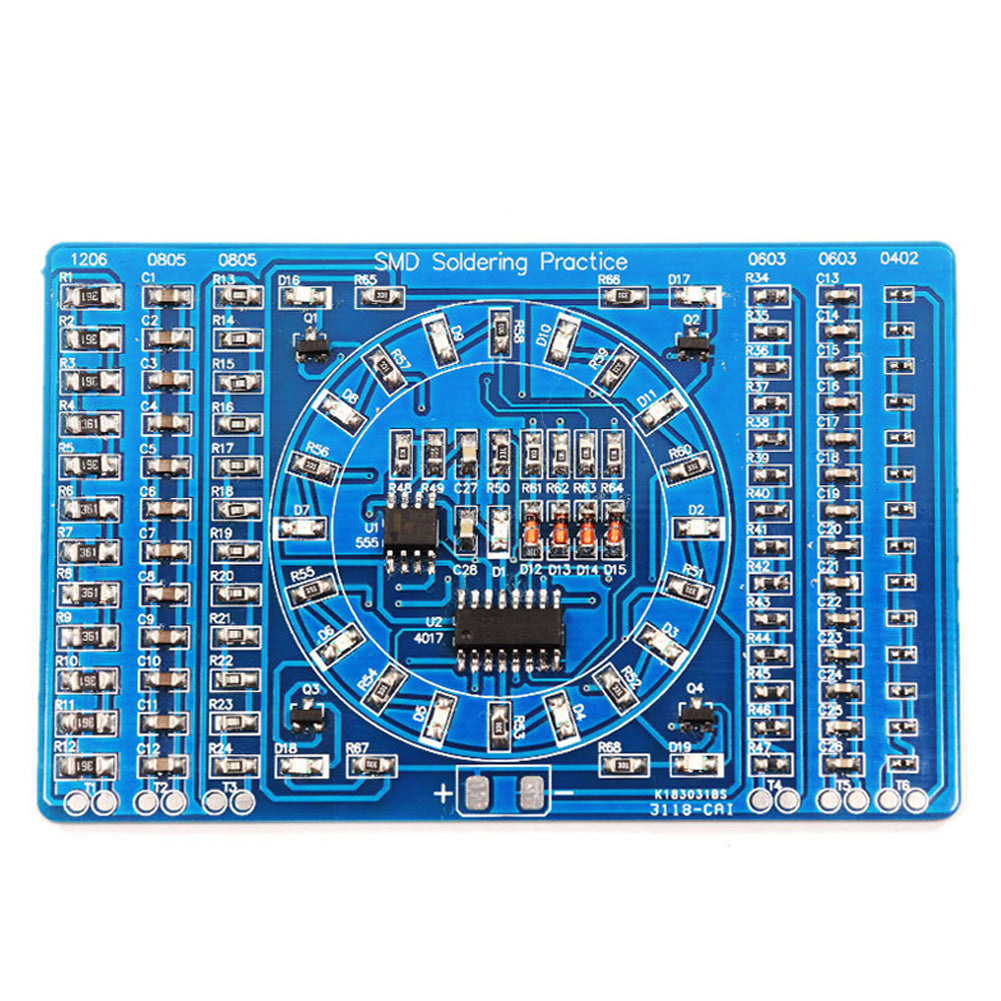

- PCB board design is reasonable, the use of all commonly used SMD components.

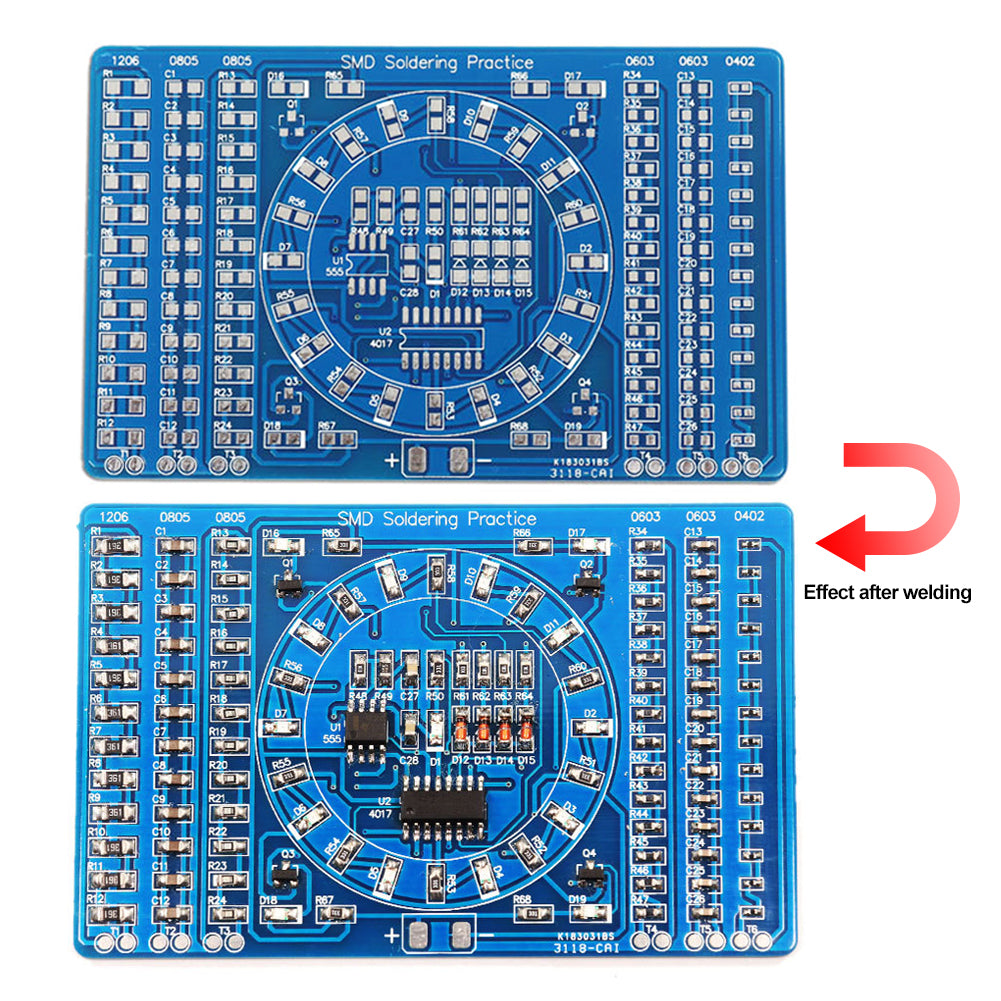

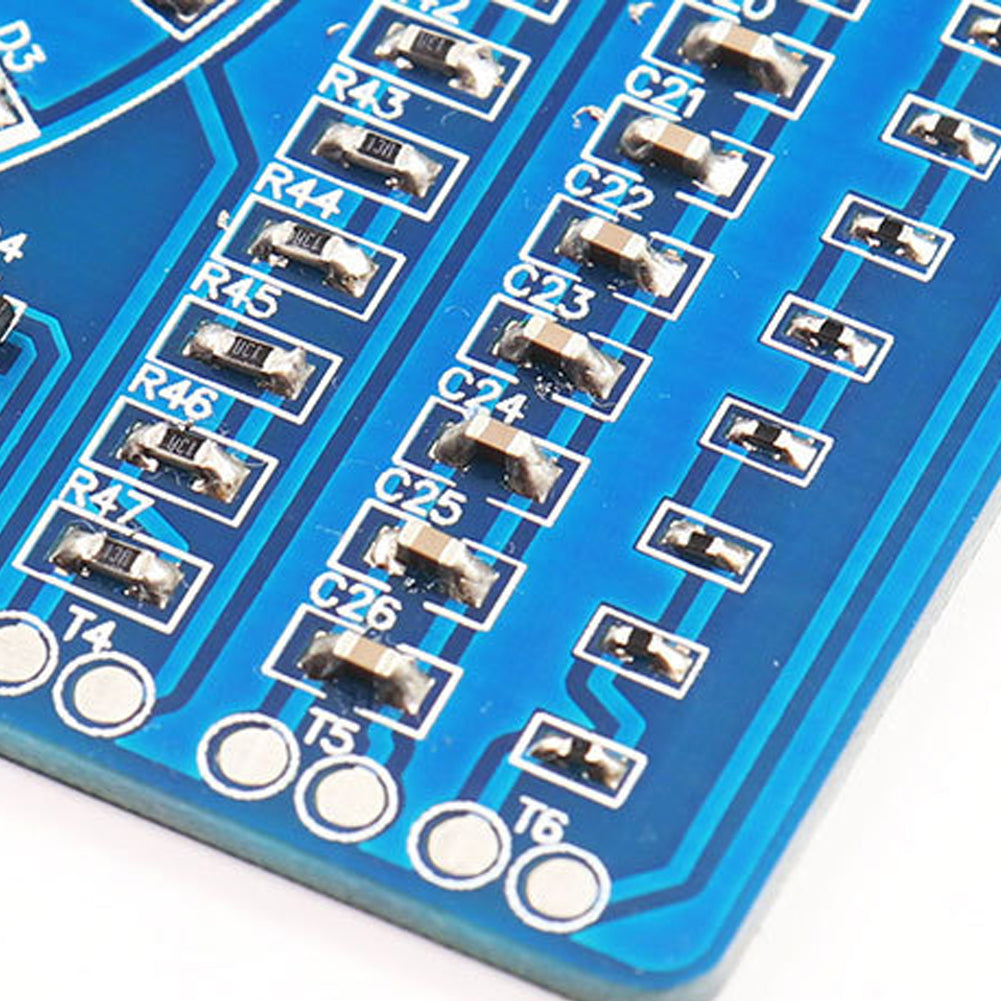

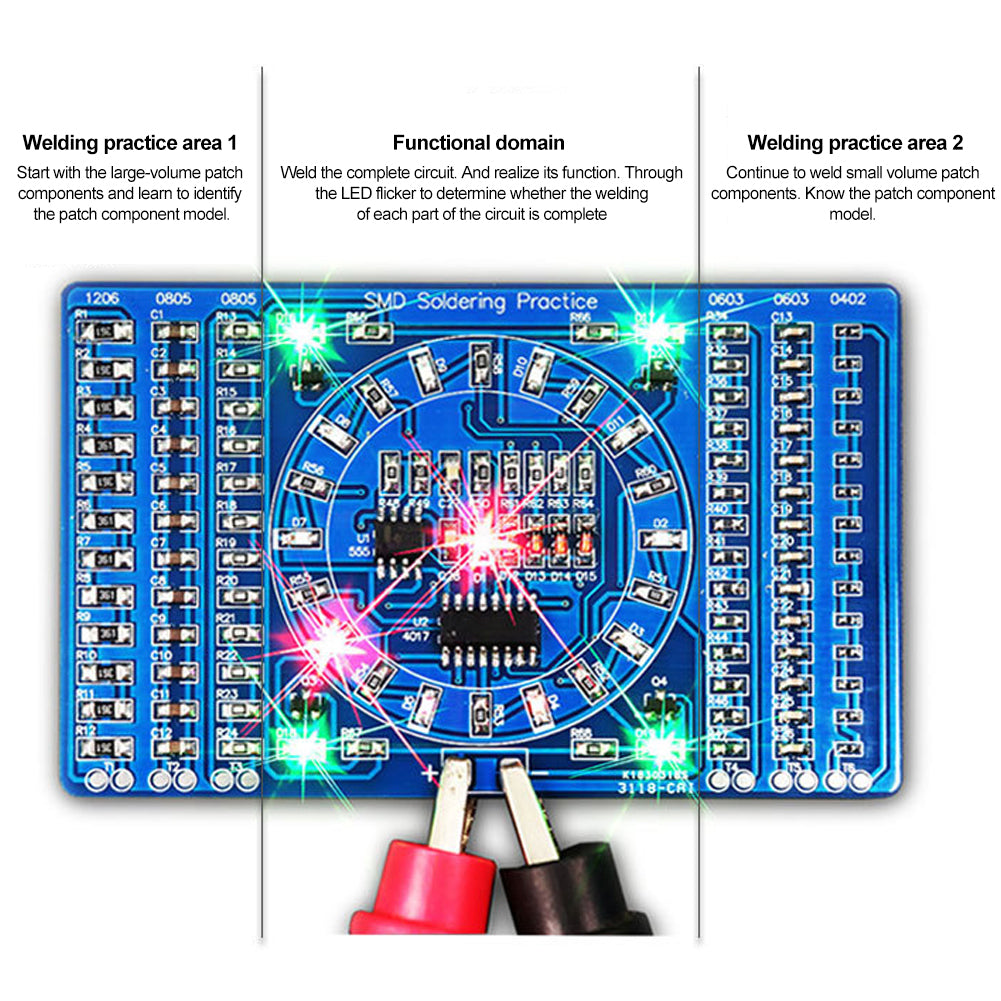

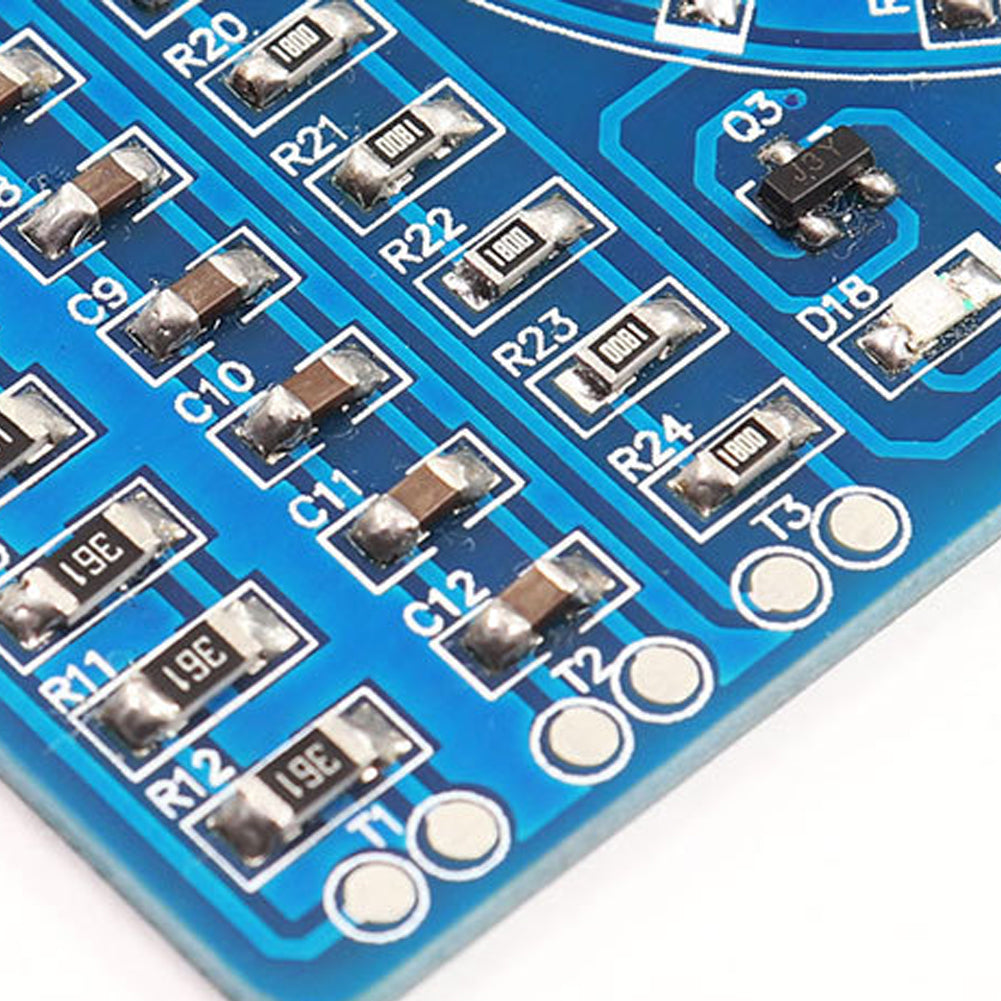

- The left and right 3 columns of components are used to practice welding, each column with a test point.

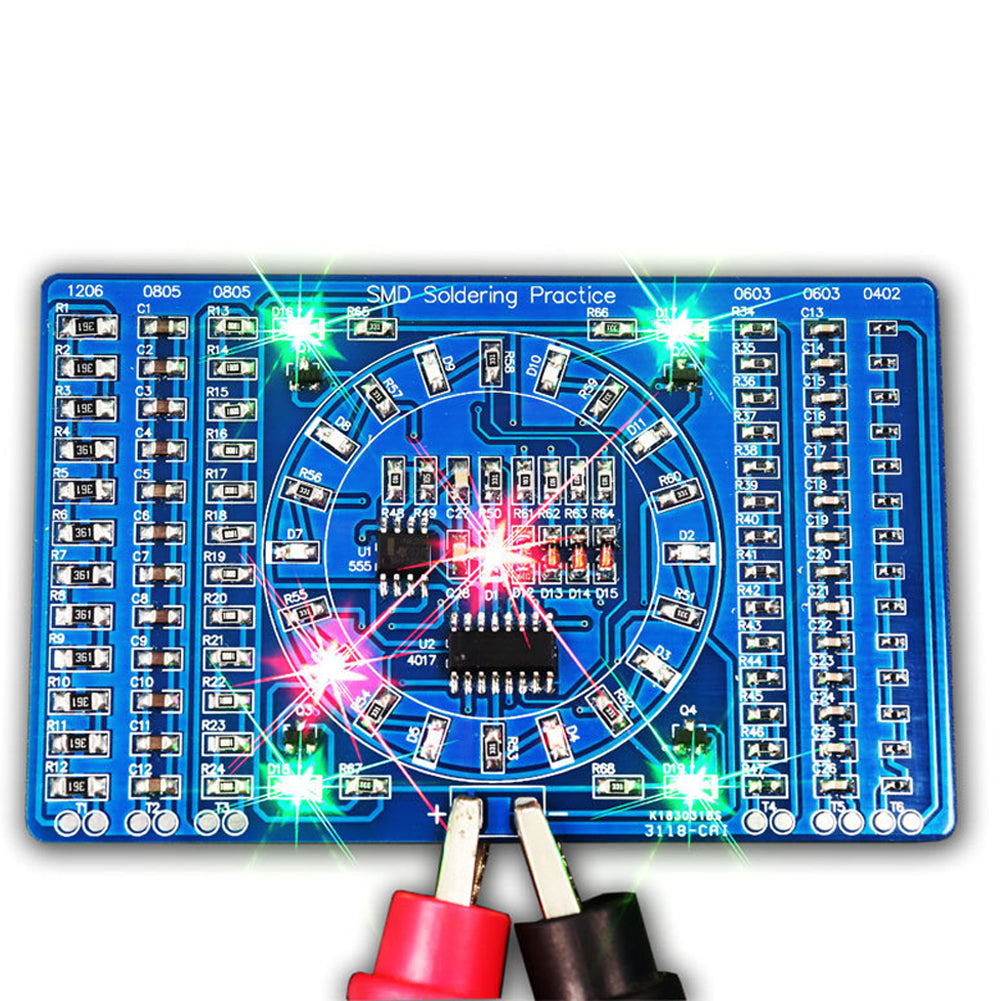

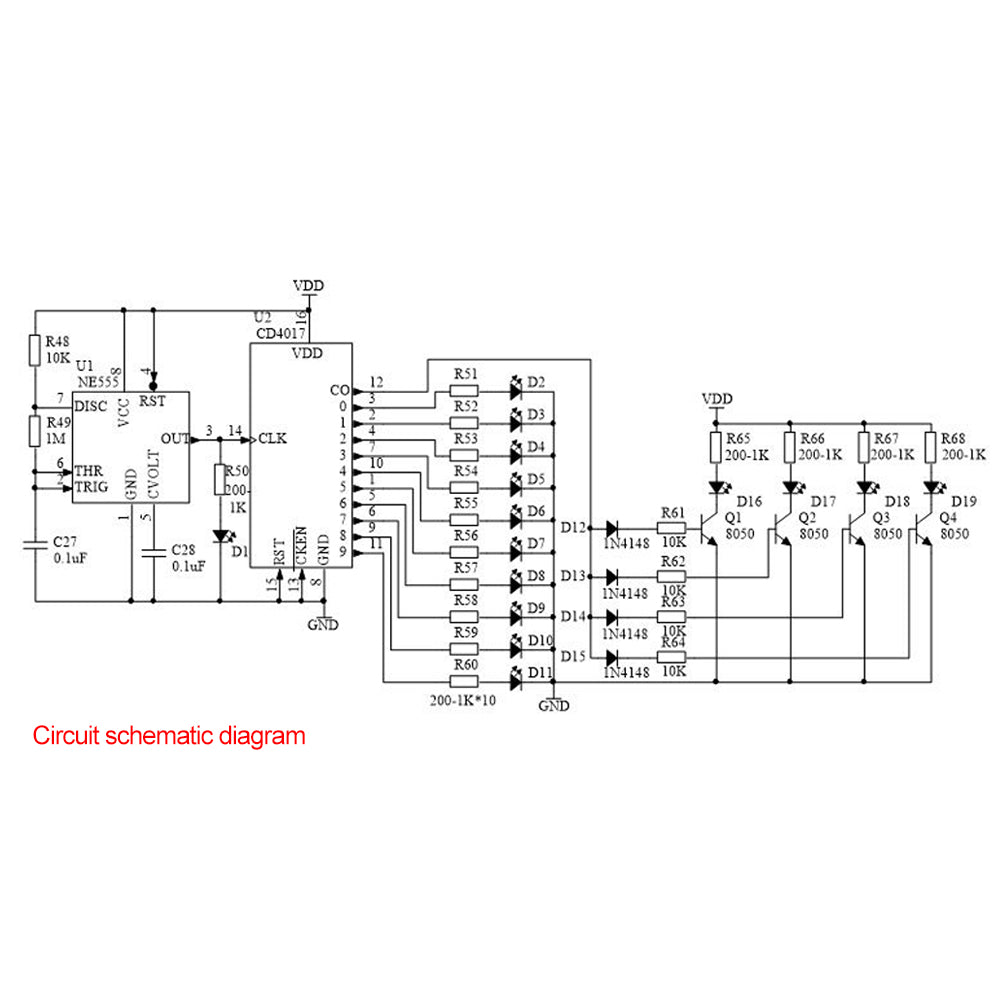

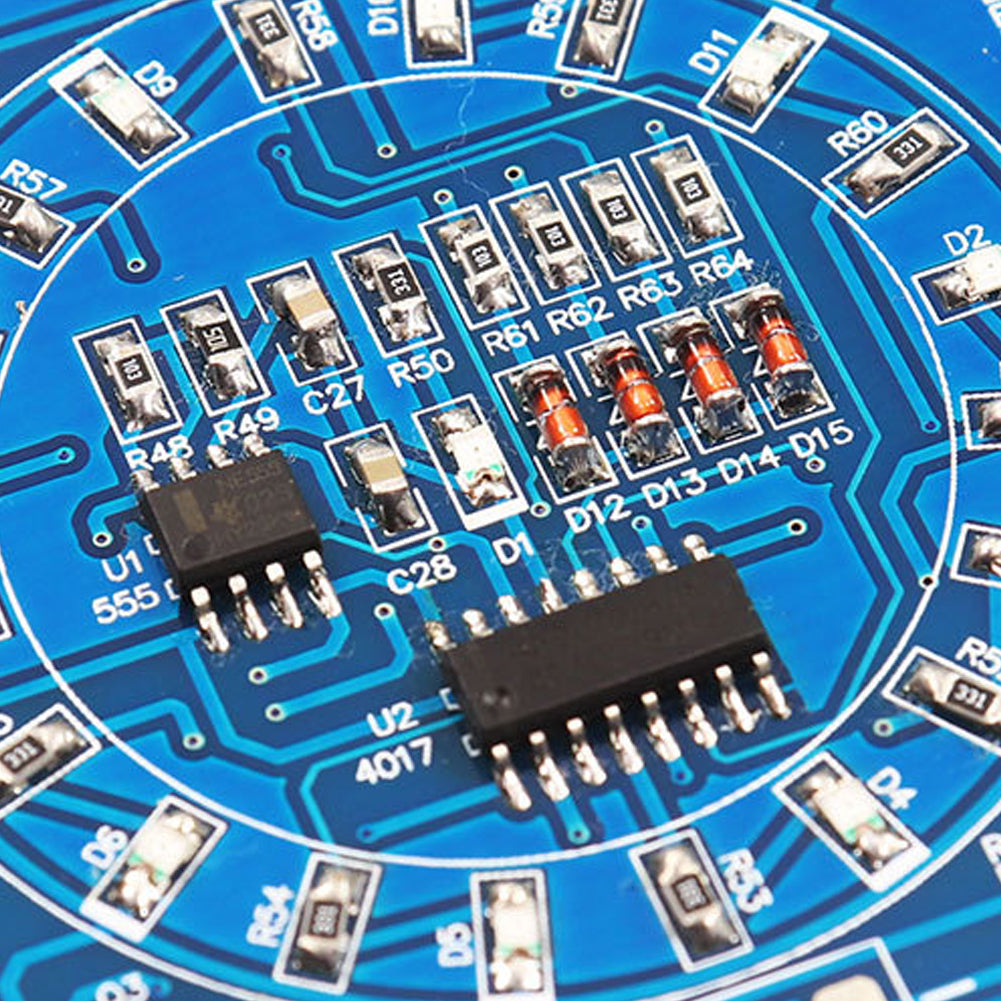

- The middle of the circular circuit for the running light circuit, composed of CD4017, NE555, light-emitting diodes, welded without error can work after power.

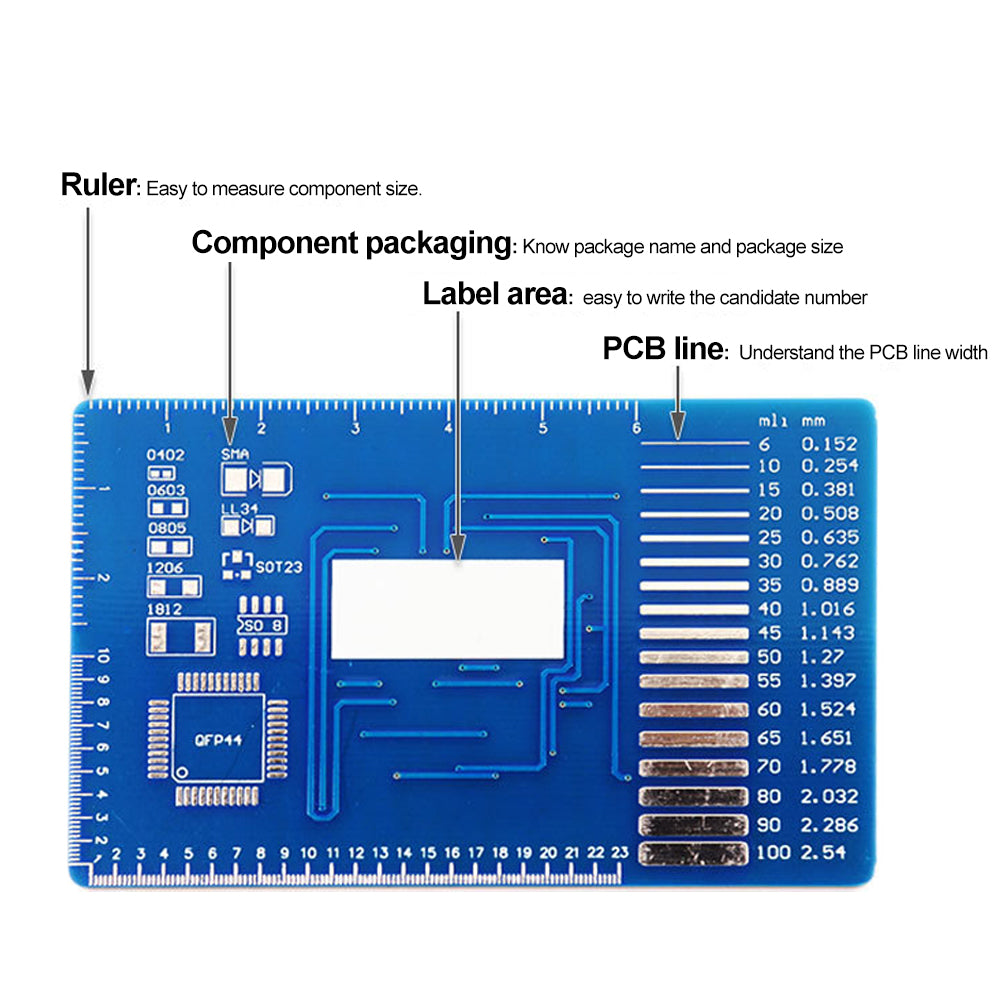

- The back of the circuit is also utilized, there are scales, easy to measure components. There are examples of PCB wires, easy to use PCB design.
- Circuit operating voltage 3 ~ 12V, need to connect to battery box for testing. The kit is not including battery box.
Specifications:
- Material: PCB board+ NE555+light-emitting diode
- Color: Blue
- Size: Board: 89*58*1.6mm

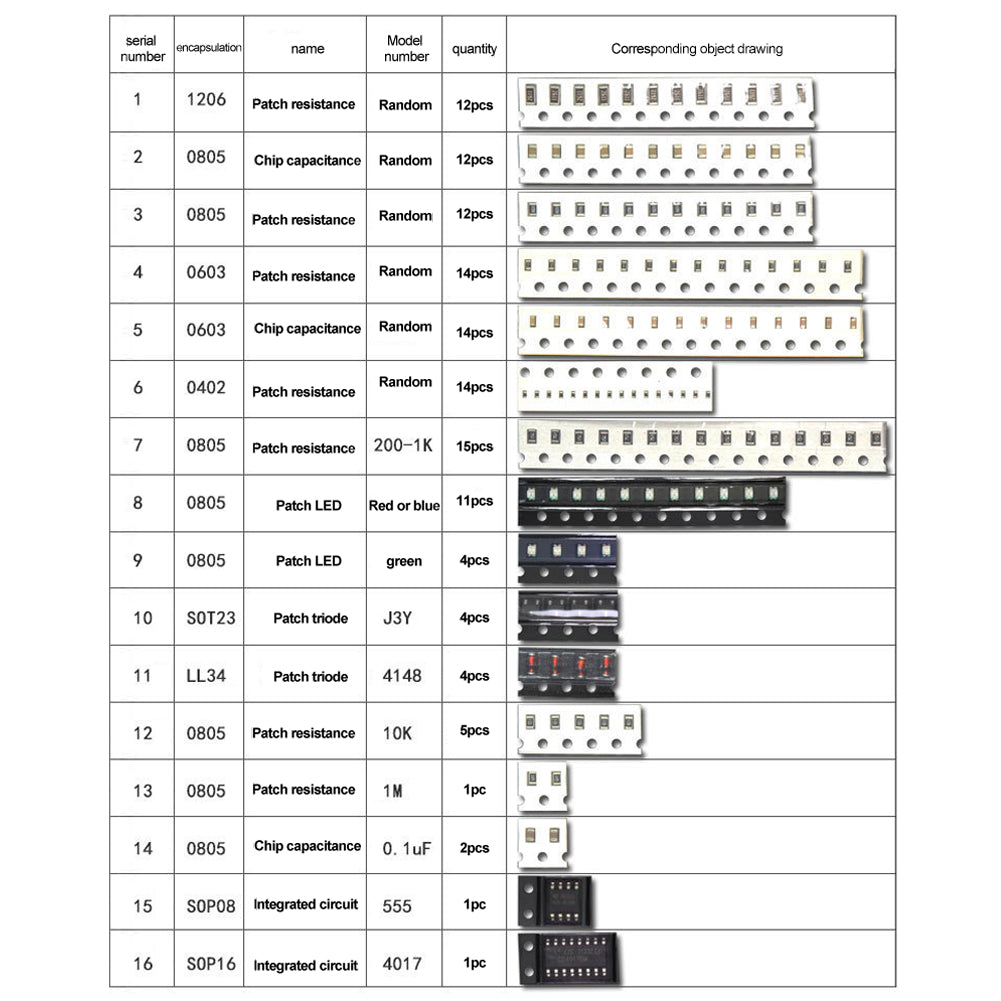

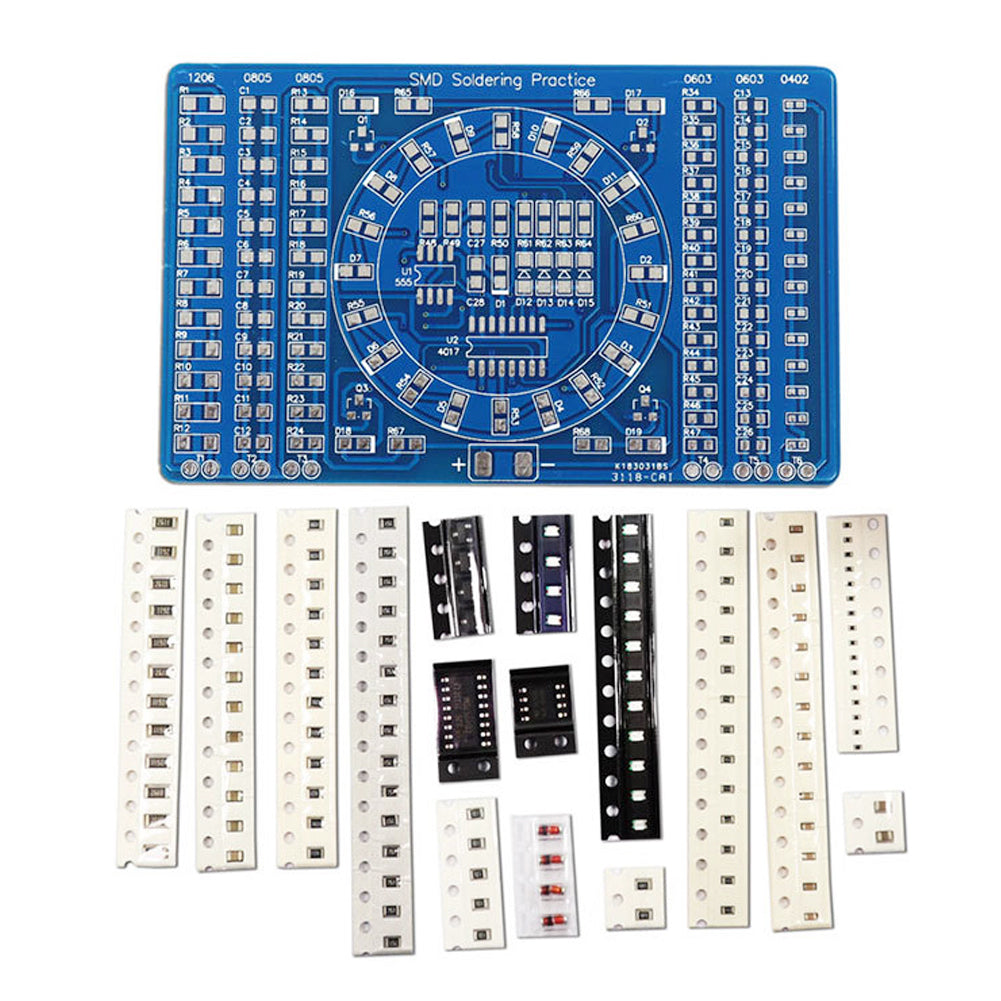

- Kit Details:
1pc x PCB Board
16pcs x Electronic Components
1pc x User Guide
Note:
- There could be some slight differences in the color tone of the pictures and the actual item.
- Please allow 1-2mm differs due to manual measurement, thanks.
Package Included:
- 1pc x Soldering Practice Board
Packing Safely in Bubble Bag.
