Features:
1: In normal mode, briefly press the encoder to enter the preset temperature mode (preset four groups of common temperatures according to your own needs, and rotate the encoder to cycle between these four groups of preset temperatures), and then press the encoder again to enter the preset temperature mode. Each time the encoder is rotated, the temperature increases by 10 degrees, and the step temperature is adjustable!
2. In normal mode, long press the encoder to enter the setting menu, short press to select, short press again to cancel the selection, long press the encoder in the menu interface to exit and return to the previous level!
Important notes for T12 welding station:
-If you enter the menu to change parameters or restore factory settings, please pay attention to setting the following parameters correctly, otherwise errors and other exceptions will occur!
1. The sleep time must be set to "0", otherwise the sleep seat function will be invalid. (Time setting in the main menu - Sleep time - Set to 0

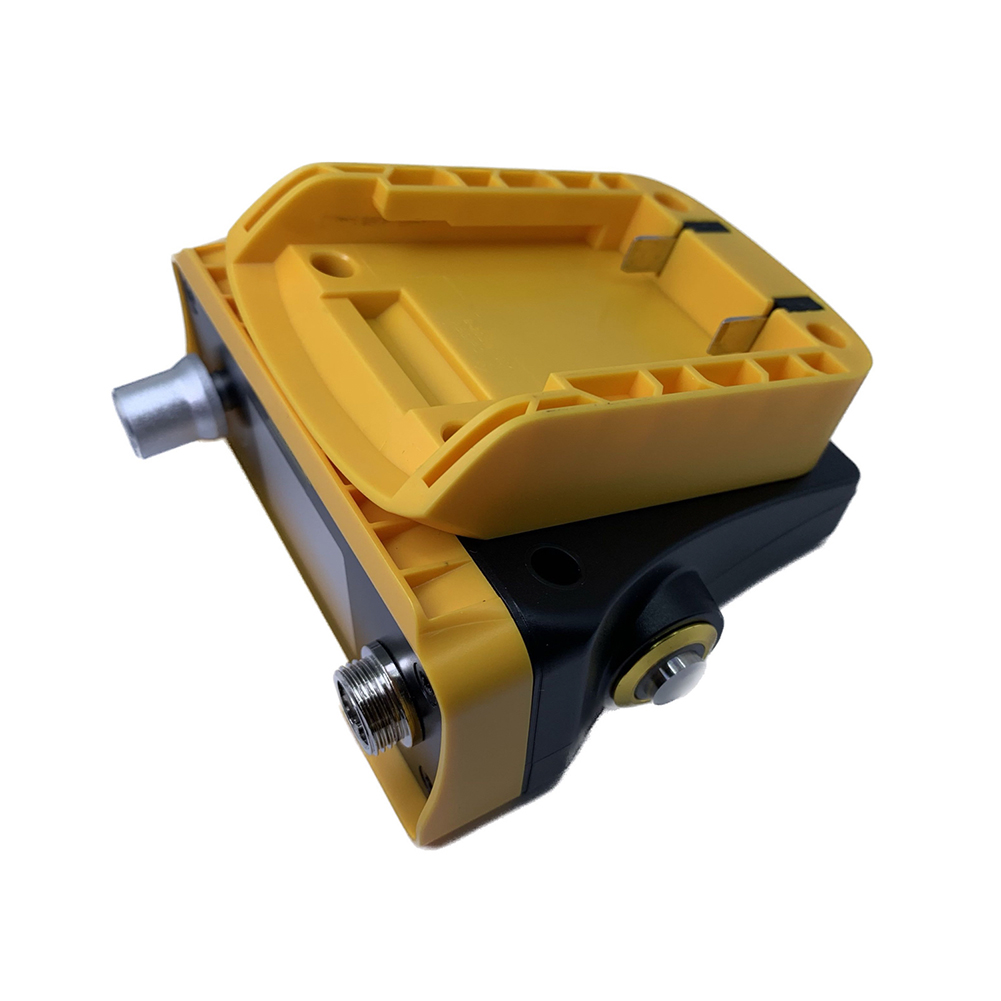

- Compatibility: The cordless welding station is applicable to Bosch/Pasta/Milwaukee interface batteries, which can be selected according to needs (excluding batteries). This portable welding station can help you complete welding work more conveniently and quickly.

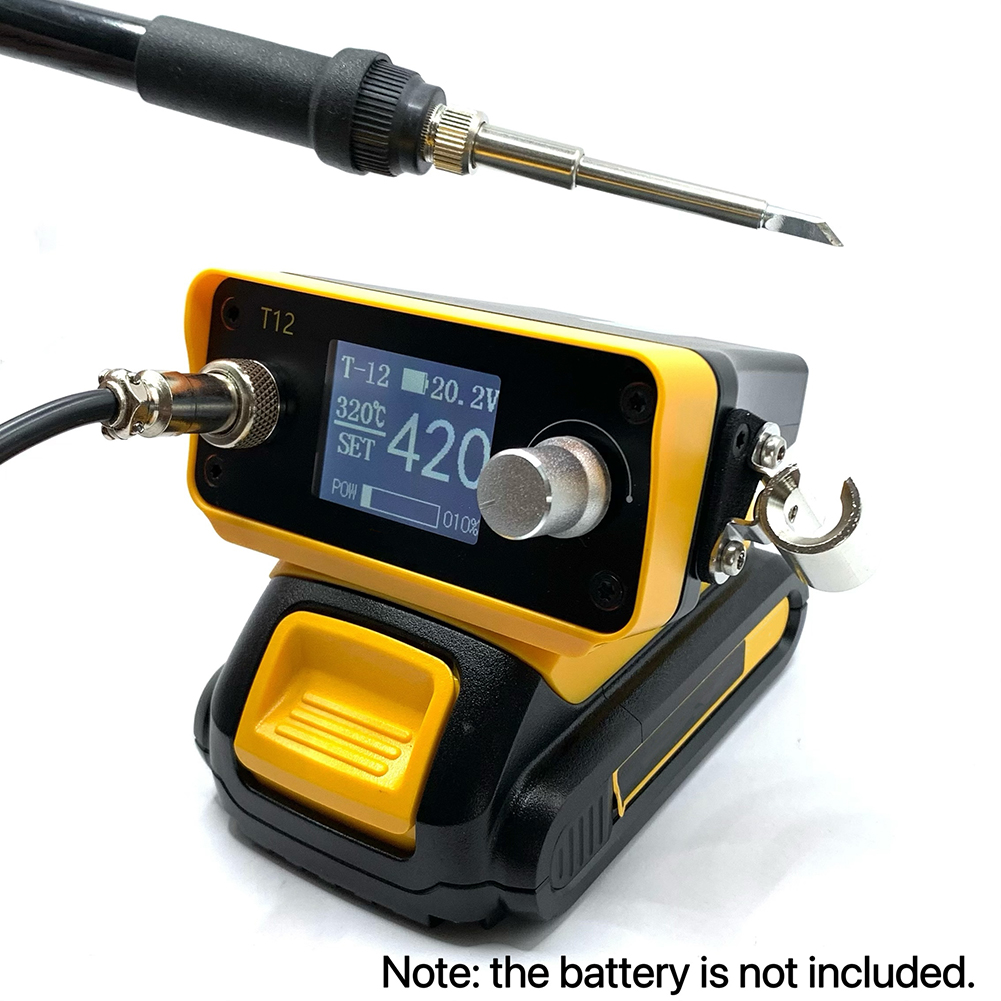

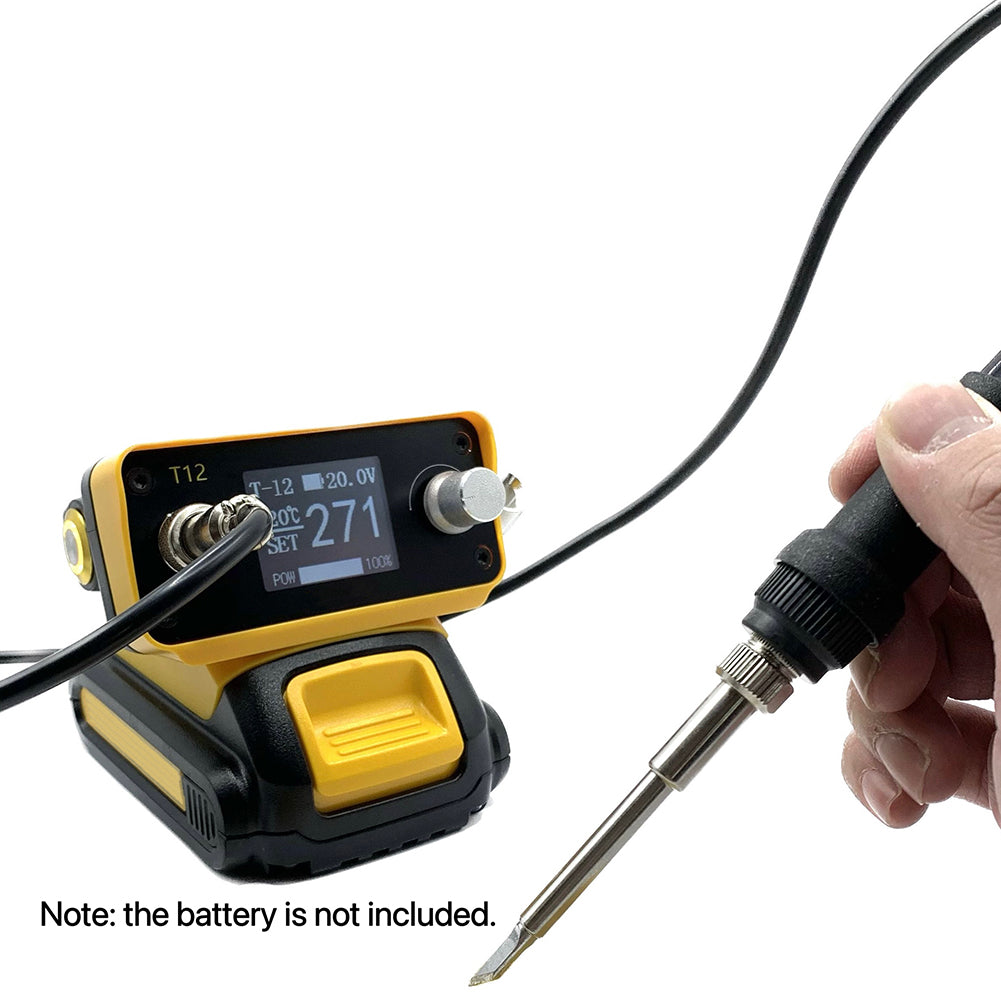

- Fast Heating & Adjustable Temperature: This electric HD digital welding station has fast heating speed. The temperature reading is displayed on the digital display, and the temperature can be set accurately by easily turning the adjusting knob.
- Compact Lead-free Solder: The compact welding station helps to save valuable working space. Lead-free soldering iron head and soft handle design provide greater comfort in long-term welding projects.

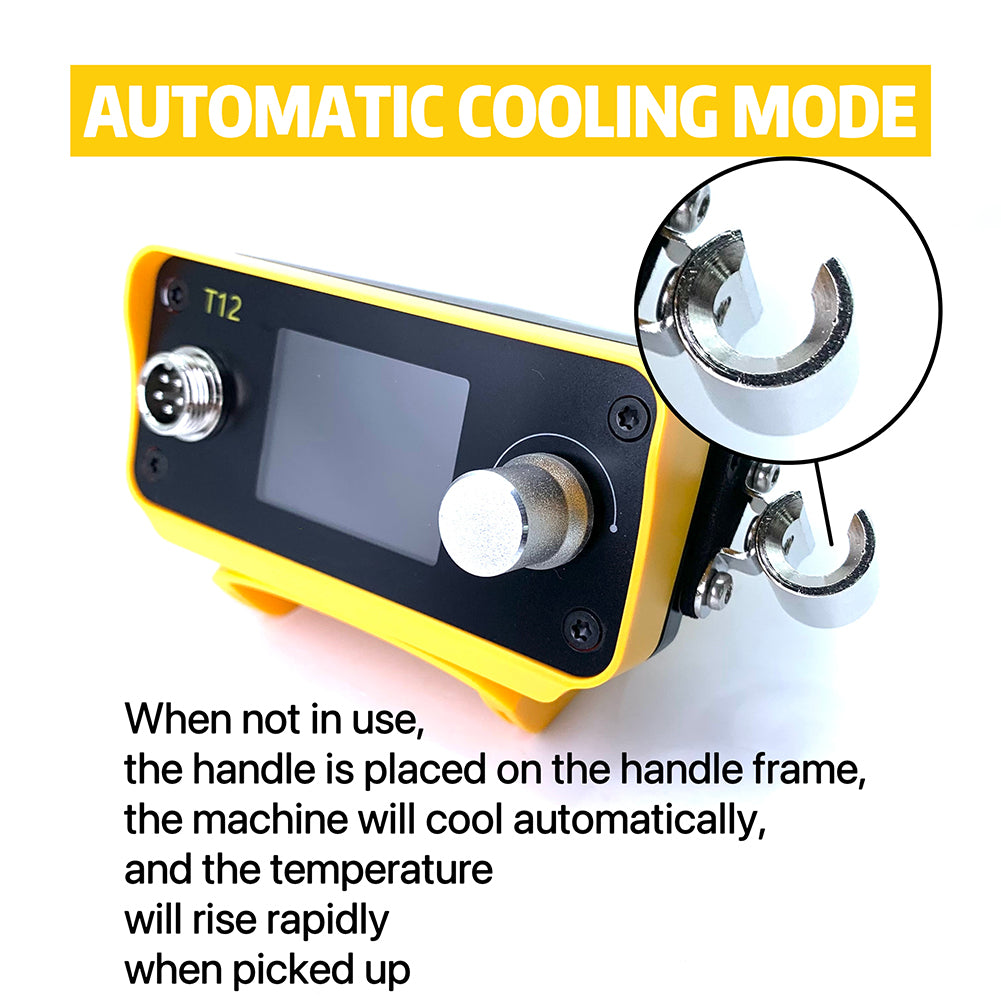

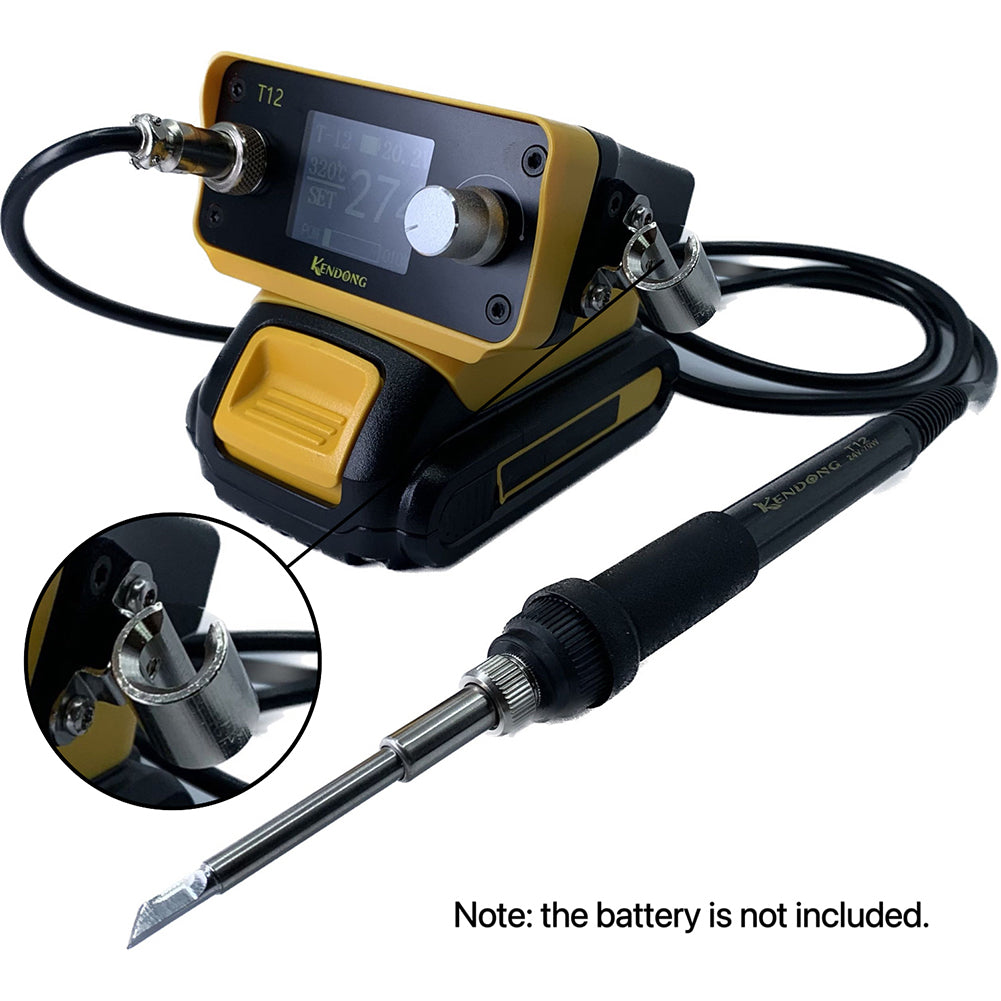

- Safety in Use: Digital solder iron station kit is made of high-quality materials with built-in low-voltage protection. In the automatic cooling mode, when not in use, put the handle on the handle frame, the machine will automatically cool, and the temperature will rise rapidly when picked up.
- Conditions: Cordless digital solder iron station kit support T12 handle heating core with DC port 24V auxiliary power supply.
1: In normal mode, briefly press the encoder to enter the preset temperature mode (preset four groups of common temperatures according to your own needs, and rotate the encoder to cycle between these four groups of preset temperatures), and then press the encoder again to enter the preset temperature mode. Each time the encoder is rotated, the temperature increases by 10 degrees, and the step temperature is adjustable!
2. In normal mode, long press the encoder to enter the setting menu, short press to select, short press again to cancel the selection, long press the encoder in the menu interface to exit and return to the previous level!
Important notes for T12 welding station:
-If you enter the menu to change parameters or restore factory settings, please pay attention to setting the following parameters correctly, otherwise errors and other exceptions will occur!
1. The sleep time must be set to "0", otherwise the sleep seat function will be invalid. (Time setting in the main menu - Sleep time - Set to 0
2. Set the standby time to 10 (time setting in the main menu - standby time - set to 5 or 10, you can set any length of time as needed)
3. Set the undervoltage protection to 15 or 16 (other settings in the main menu - voltage protection - set to 16)
4. Sleep temperature setting (temperature setting in the main menu -sleep temperature - set to 60)
5. Maximum temperature setting (temperature setting in main menu - maximum temperature - 420)
6. If you use T12 heating element, please select T12 as the heating element model (main menu - other settings - nozzle selection - T12)
Specification:
- Model Number: Soldering Stations

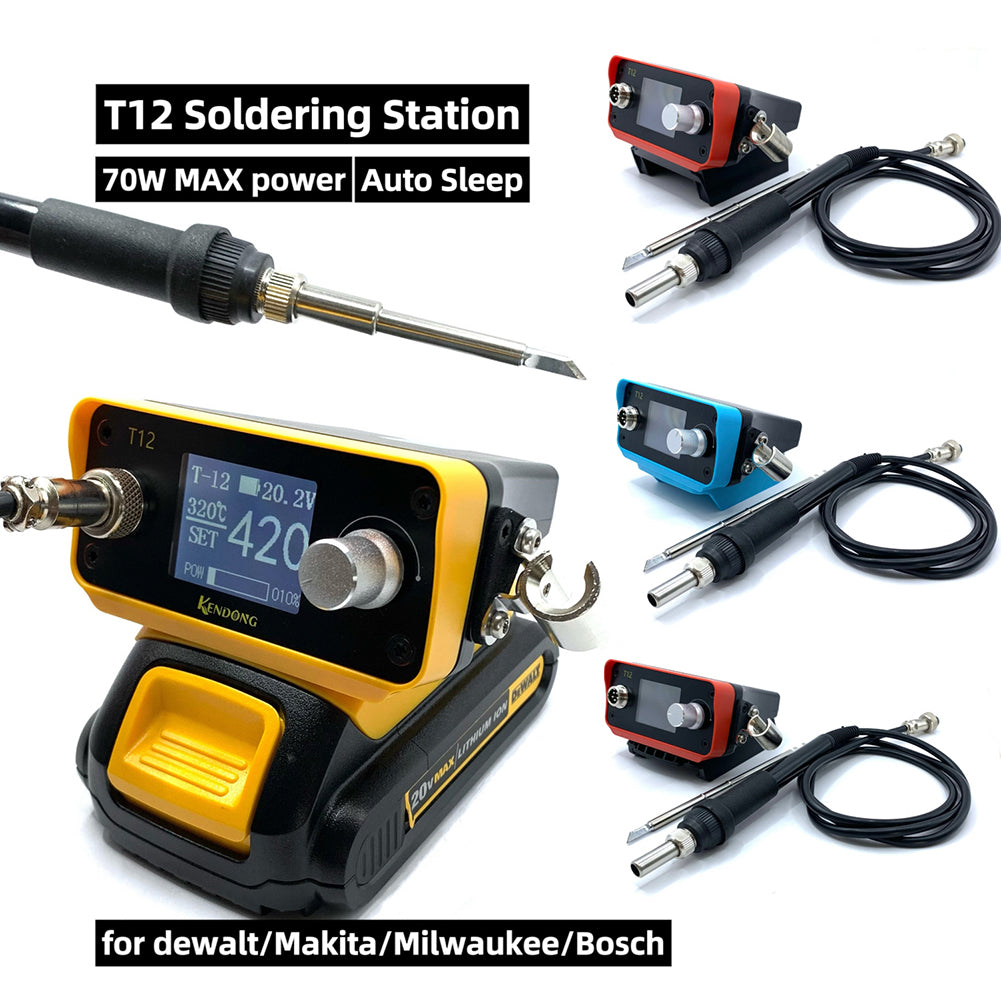

- Power: 70W maximum
- Working voltage: 12-24V
- MCU: 32 bit M1
- Screen: 1.77 inch TFT

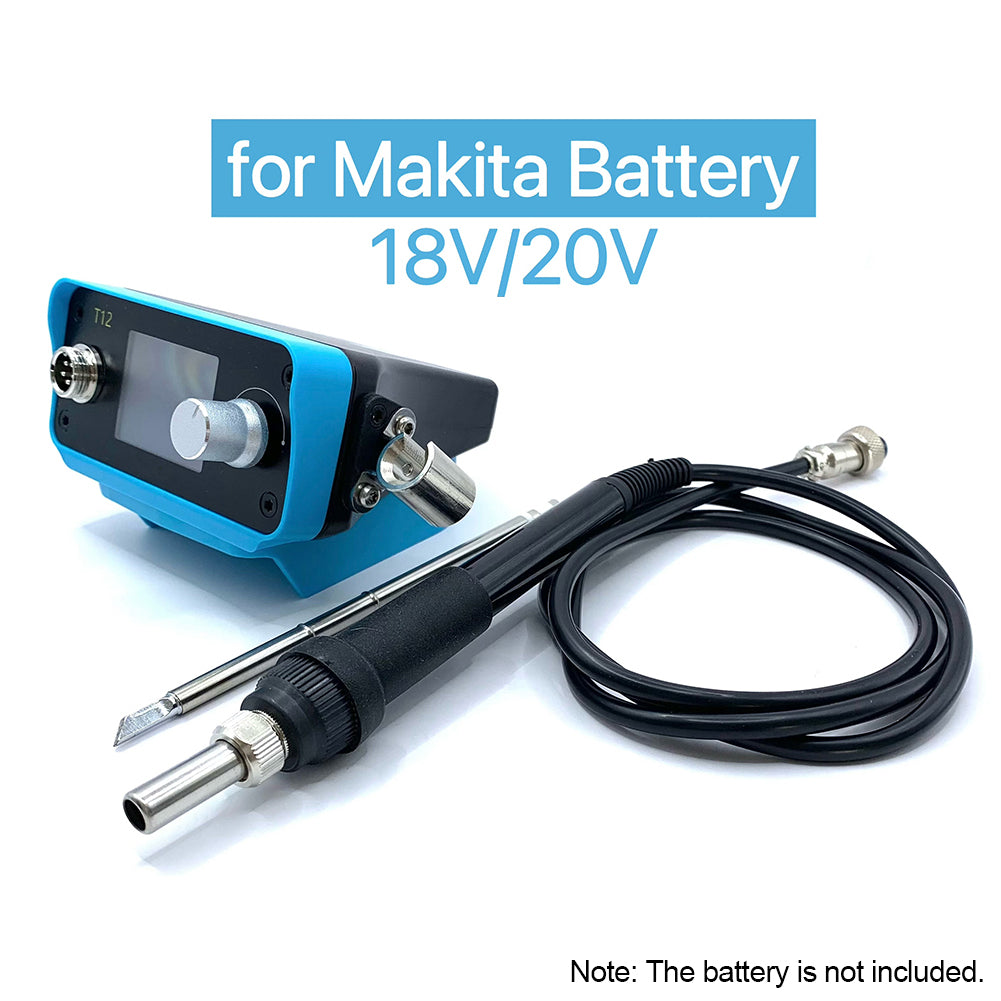

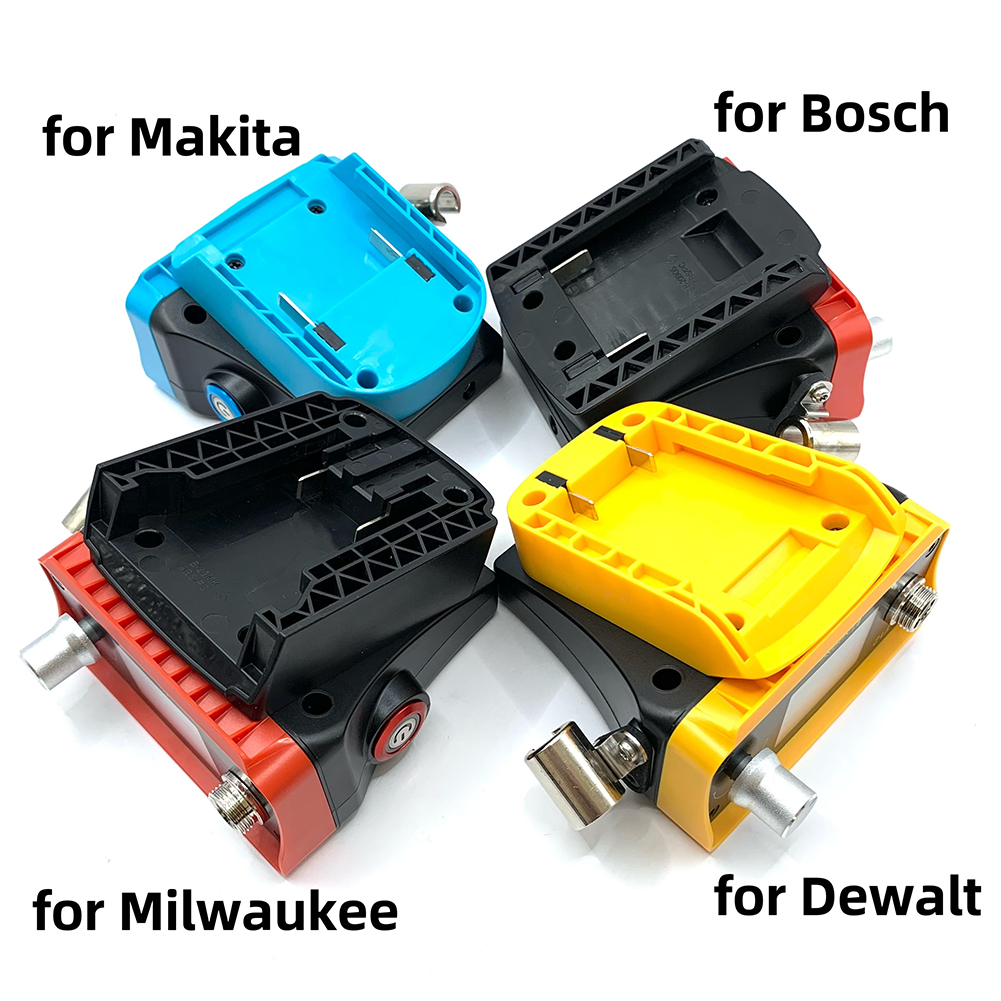

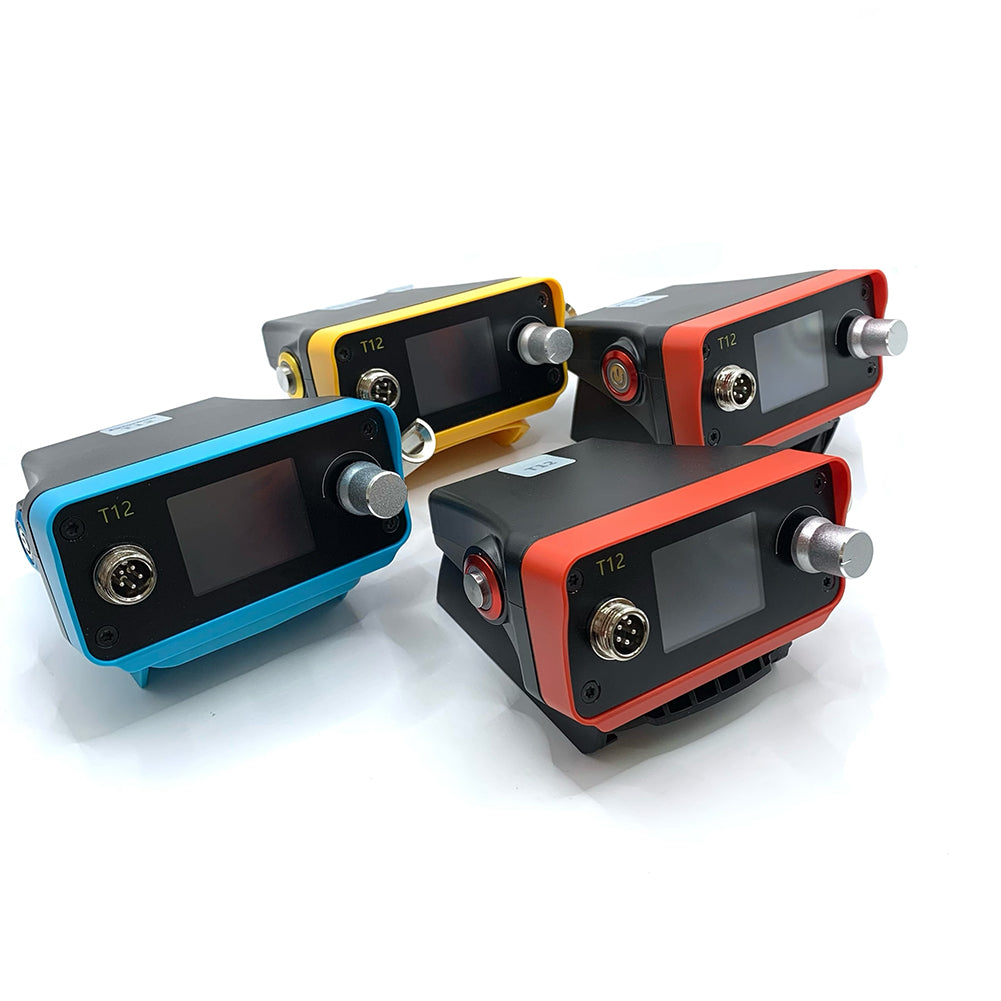

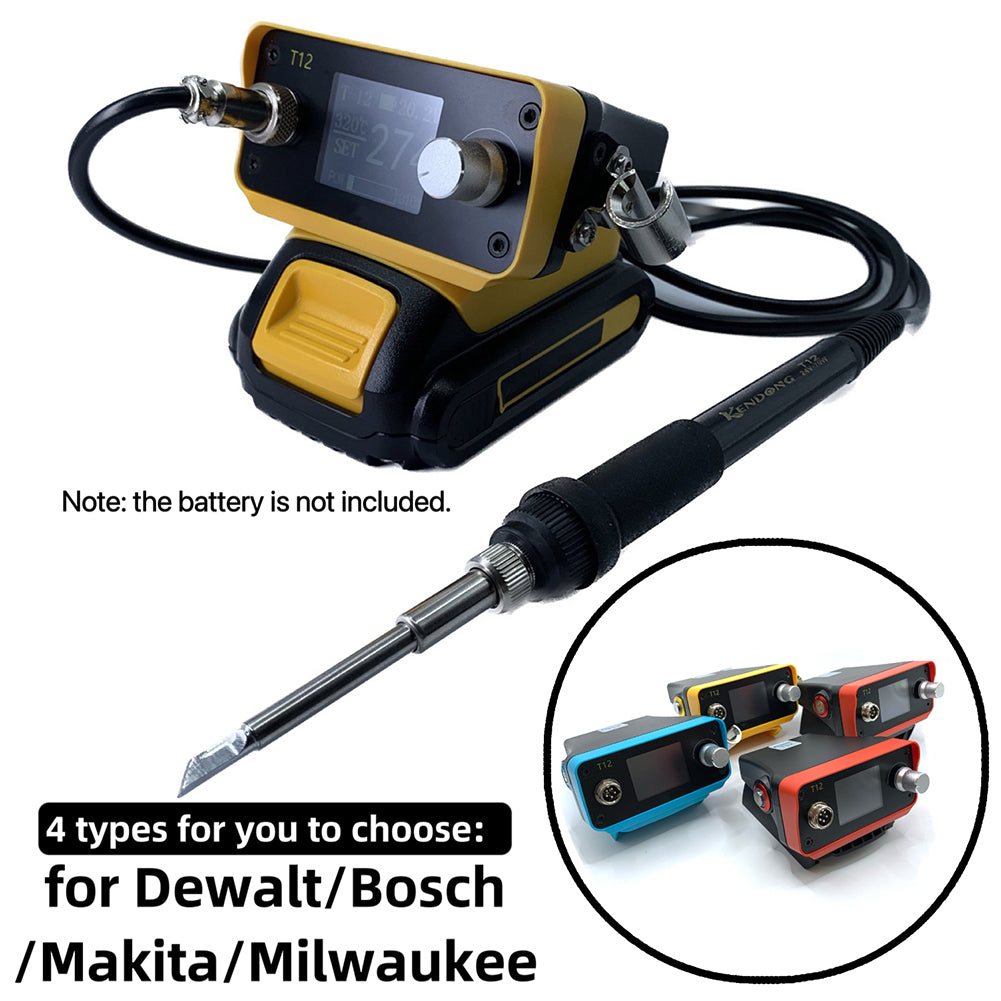

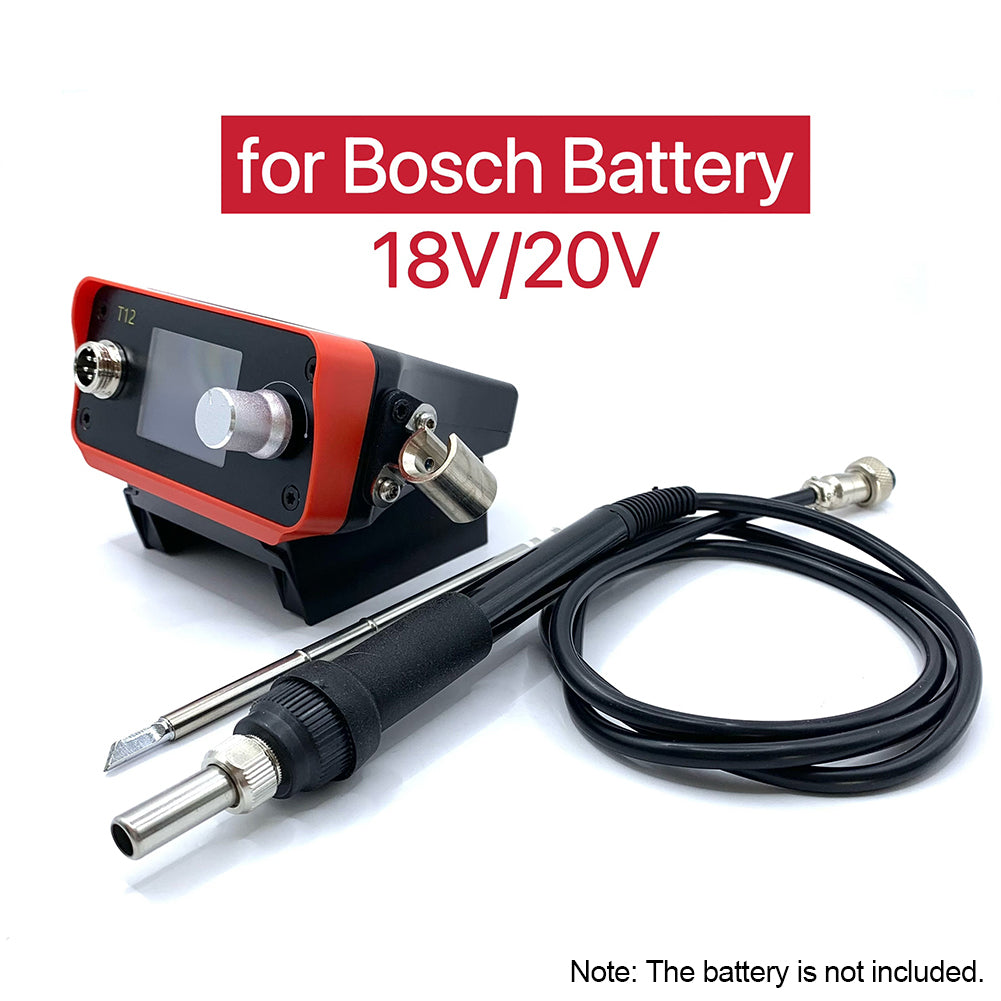

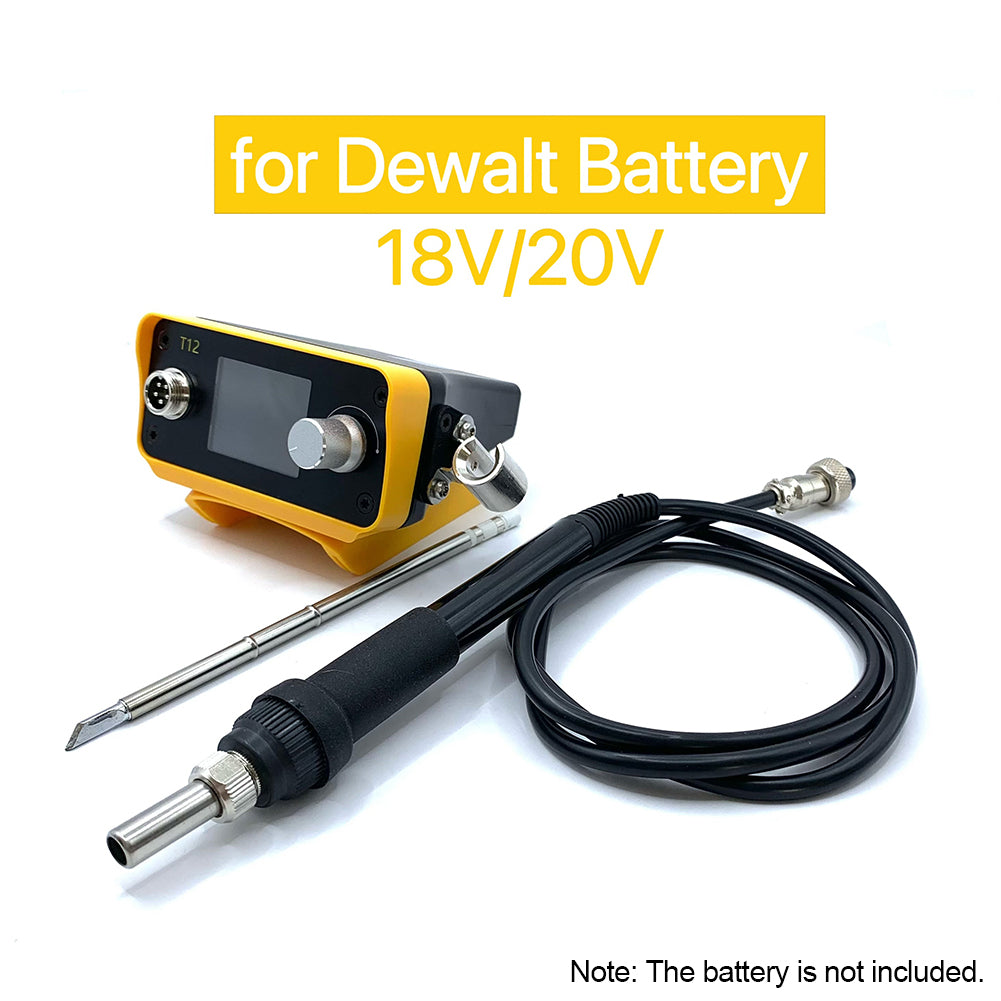

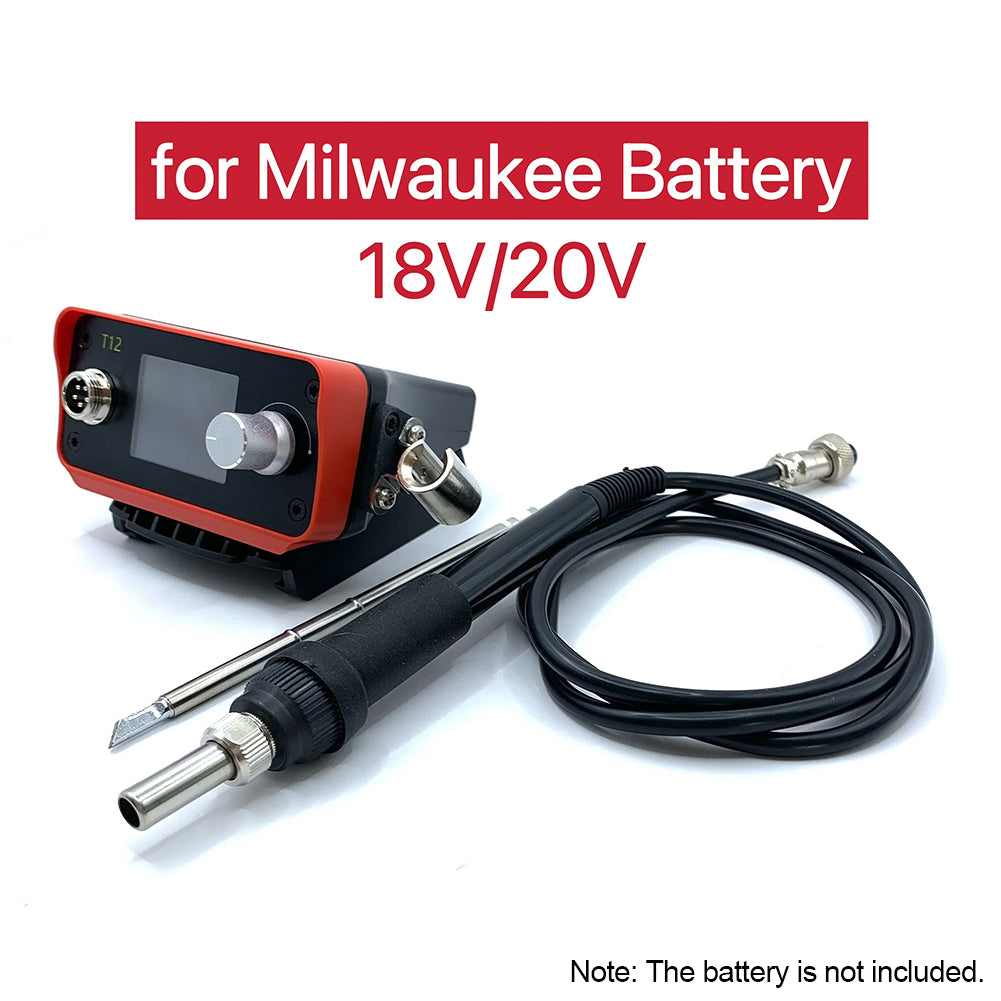

- Compatibility applicable for Bosch/Makita/Milwaukee (optional)
- Advantages: cordless, easy to carry.
- Temperature unit: Celsius/Fahrenheit
- Shell material: ABS

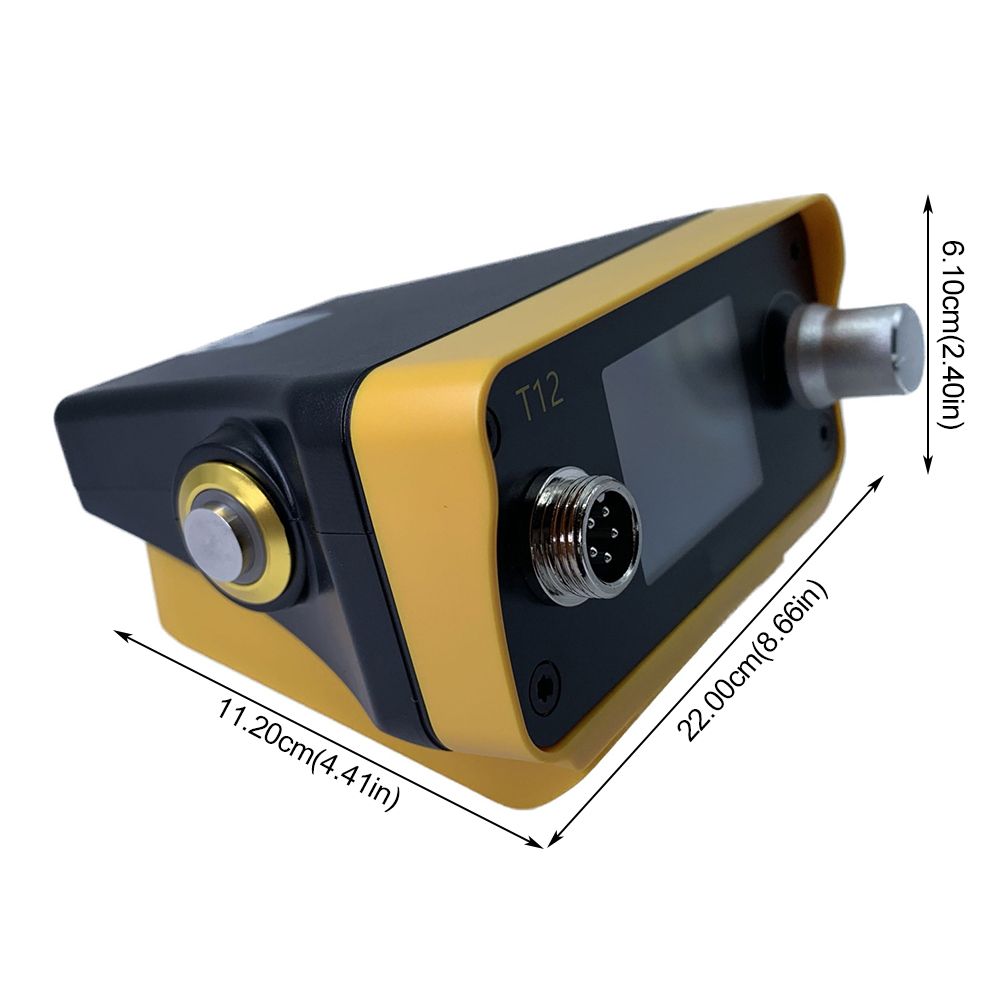

- Size: about 22.00cm * 11.20cm * 6.10cm/8.7*4.4*2.4in)
Note:
- There could be some slight differences in the color tone of the pictures and the actual item.
- Please allow 1-2mm differs due to manual measurement, thanks.
Package Included:
- 1pc x PTS300D T12 Cordless Soldering Iron Station
