Features:

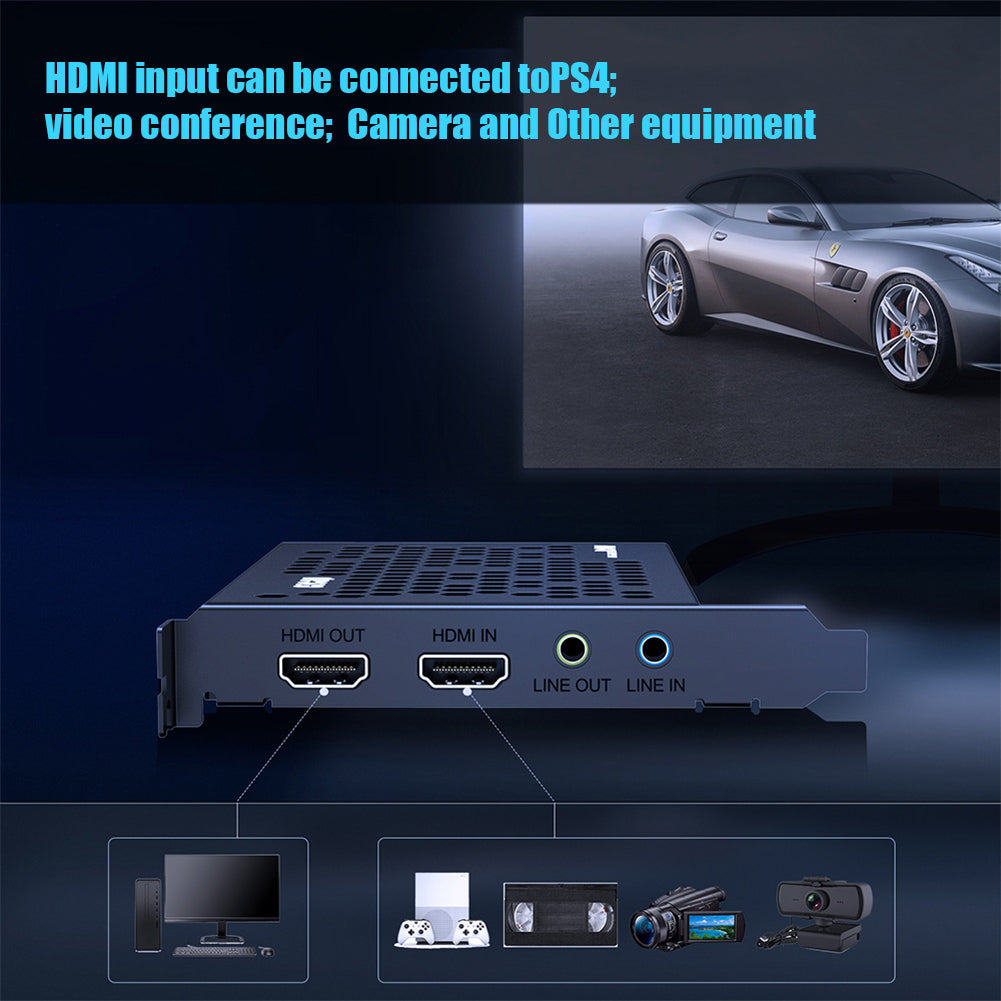

- 4Kp30, 1080p120 and 1440p60 HDMI in and loop out.
- 1080p120, 4Kp30, 1440p60 recording.
- RGB primary color video format output, up to 1080p30.

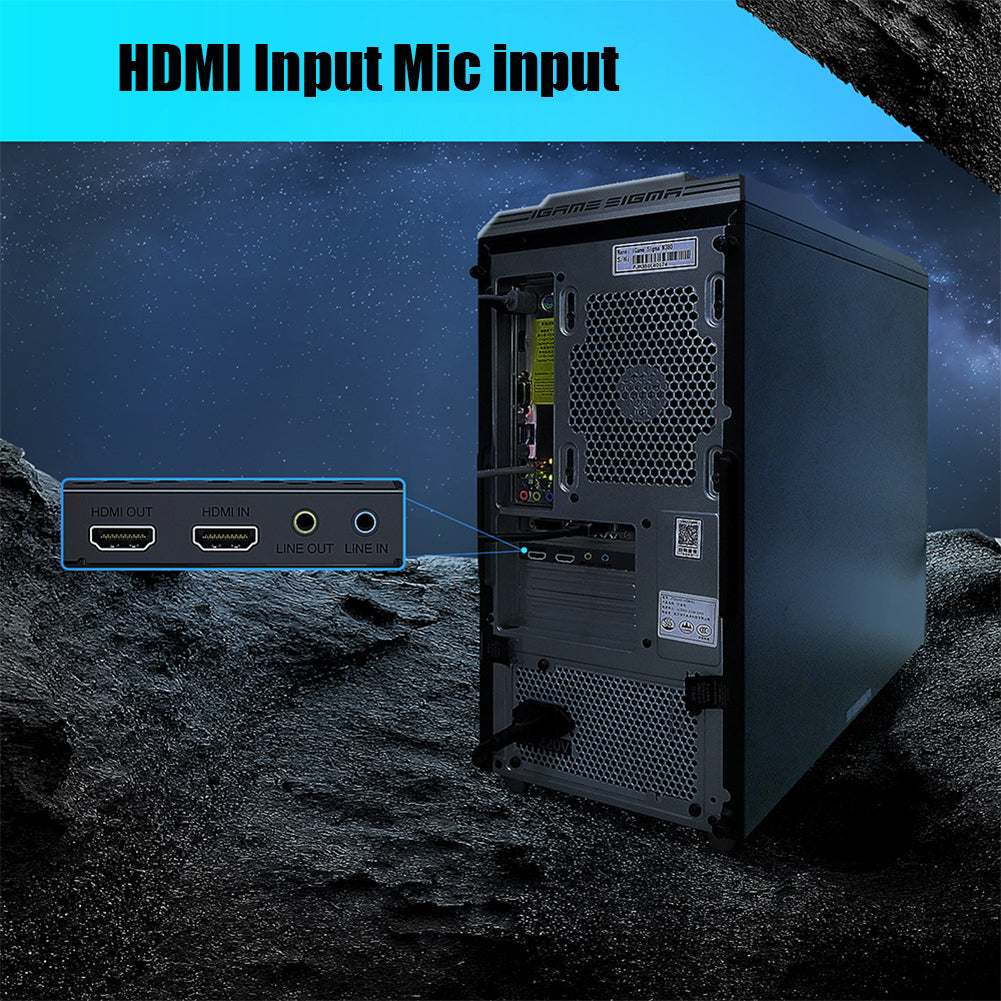

- Line-in and line-out are supported.
- Less than 50ms latency.
- UVC standard, no need to manually install the driver.
- Support most third-party video capture software.
- PCIe Gen2 SuperSpeed interface.
- Equipped with the latest ezcap Link software, it is easy to record live broadcasts.
Specifications:

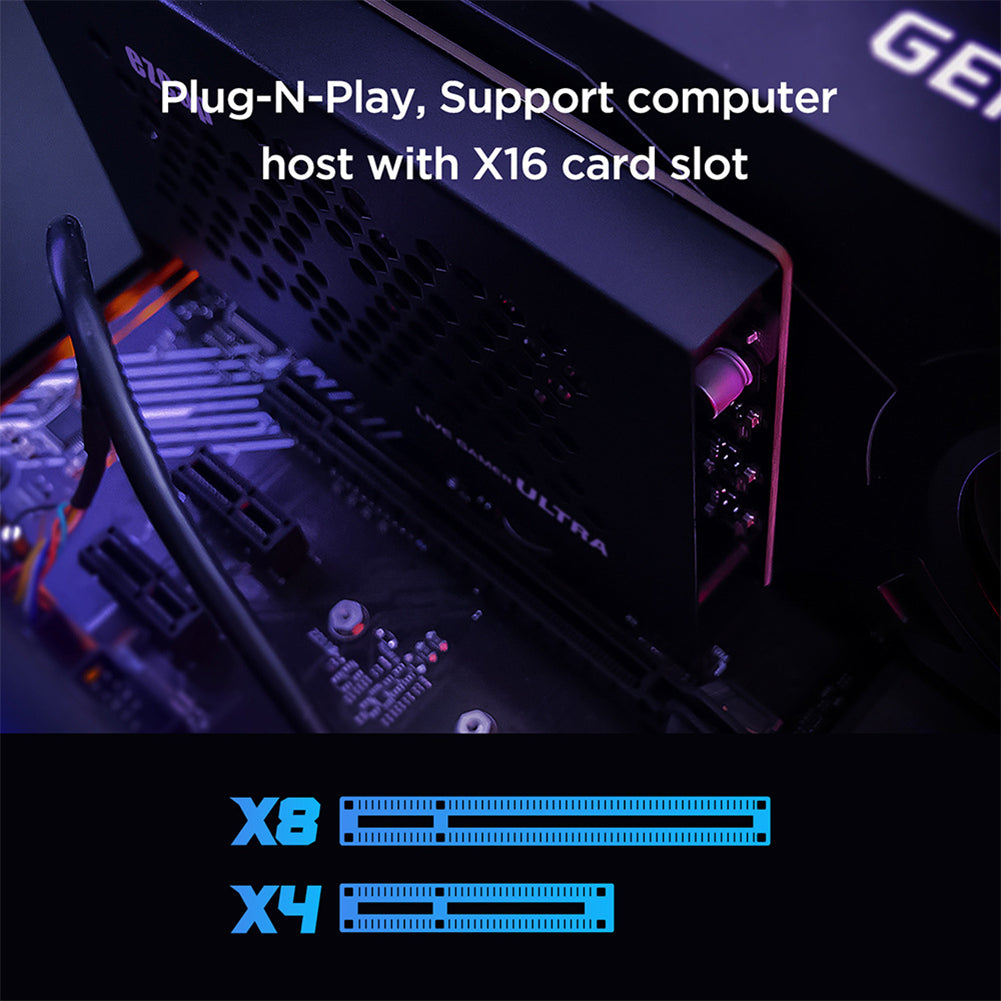

- Host Interface: PCIe Gen2 X1
- Video input and output: HDMI 1.4
- Audio Input: HDMI, Line in (3.5mm TRS)
- Audio Output: HDMI, Line Out (3.5mm TRS)
- Maximum loop out: 2160p30, 1440p60, 1080p120
- Maximum recording: 1080p120, 2160p30, 1440p60
- Supported Resolutions: 2160p, 1440p, 1080p, 720p
- Output video format: YUY2, NV12, RGB
- Recording resolution and maximum frame rate: 3840x2160 - NV12/30; 2560x1440 - NV12/60, YUY/50; 1920x1080 - NV12/120, YUY/60, XRGB/30; 1280x720 - NV12/60, YUY/60, XRGB/ 60.
- System configuration requirements:
- Windows 10 x 64, PCI-E X1 slot
- 4Kp30 or 1080p120 recording: Intel Core i5-6XXX / AMD, Ryzen 3 XXX, NVIDIA GTX 1060 / AMD RX 5700, 8 GB RAM.
- 1080p60 recording: Intel Core i7-3770, NVIDIA GeForce GTX 650 / AMD Radeon R7 250X, 4 GB RAM.
- Mac Pro, Mac OS High Sierra 10.15 or higher, PCI-E X1 slot

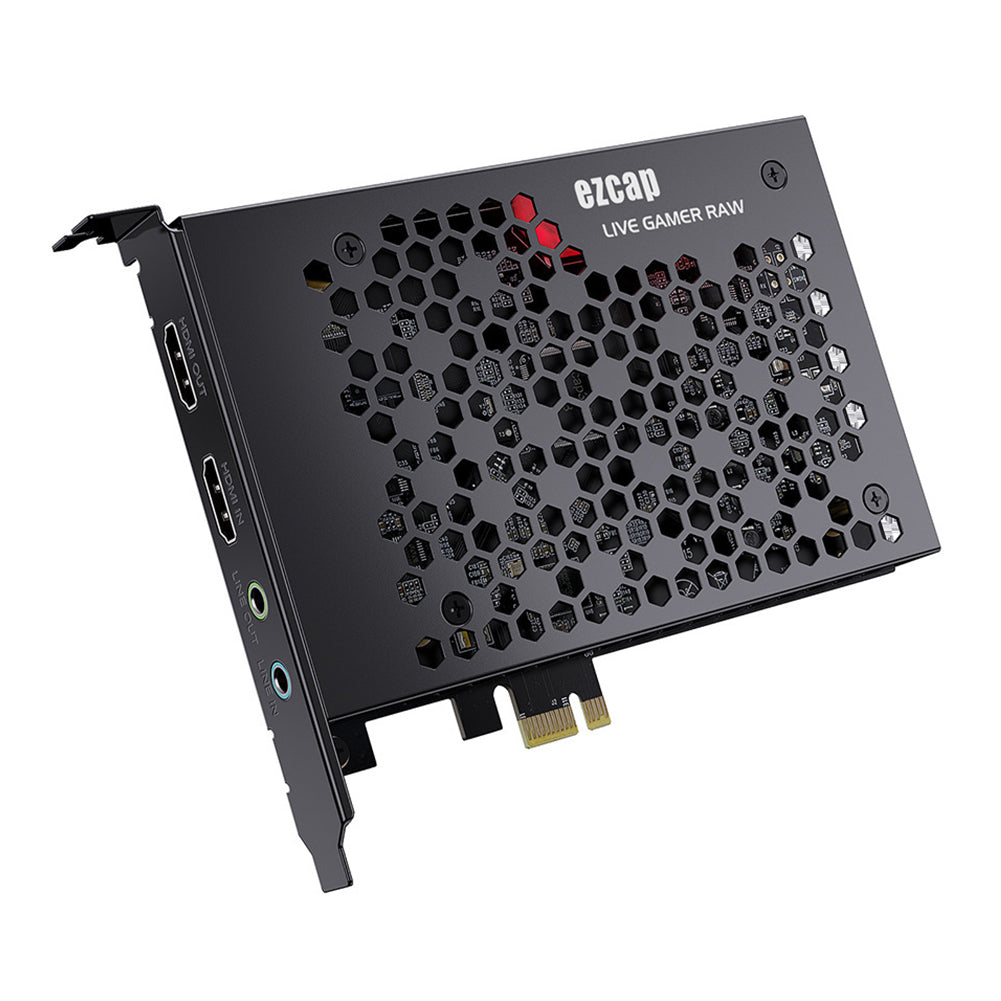

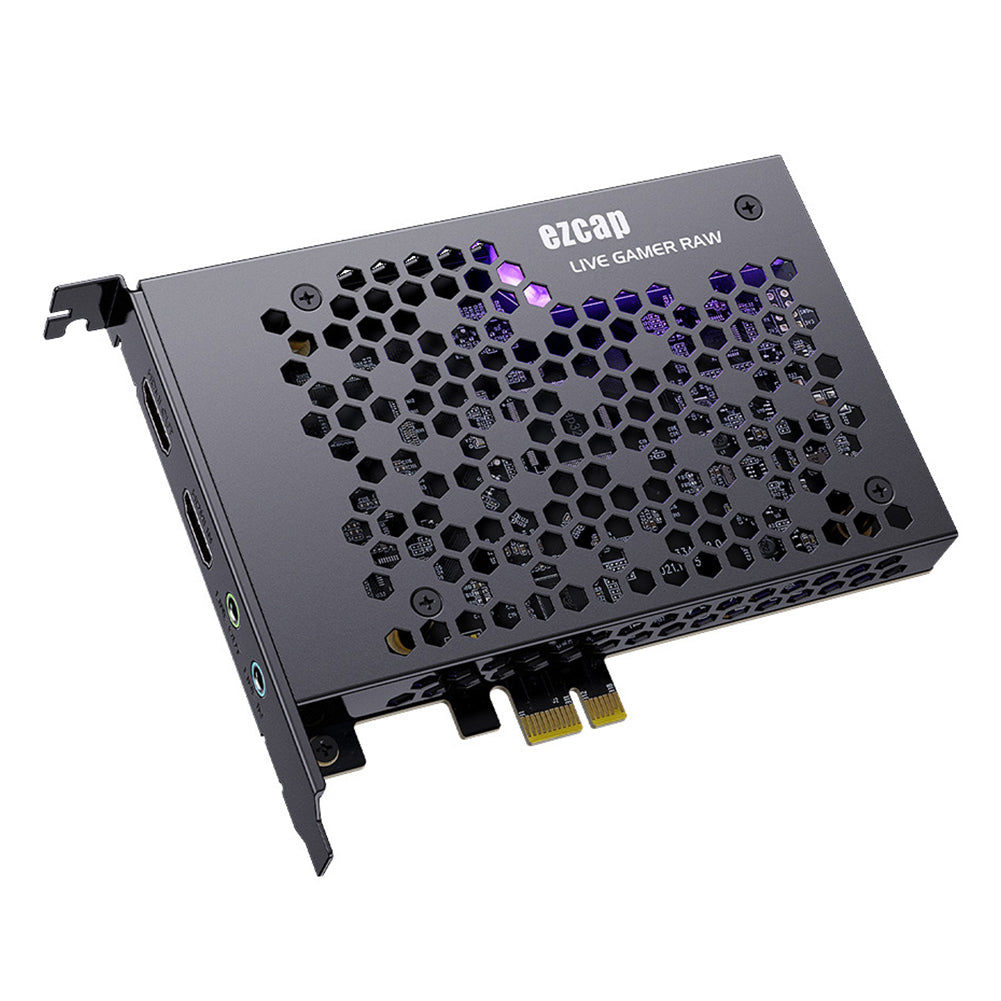

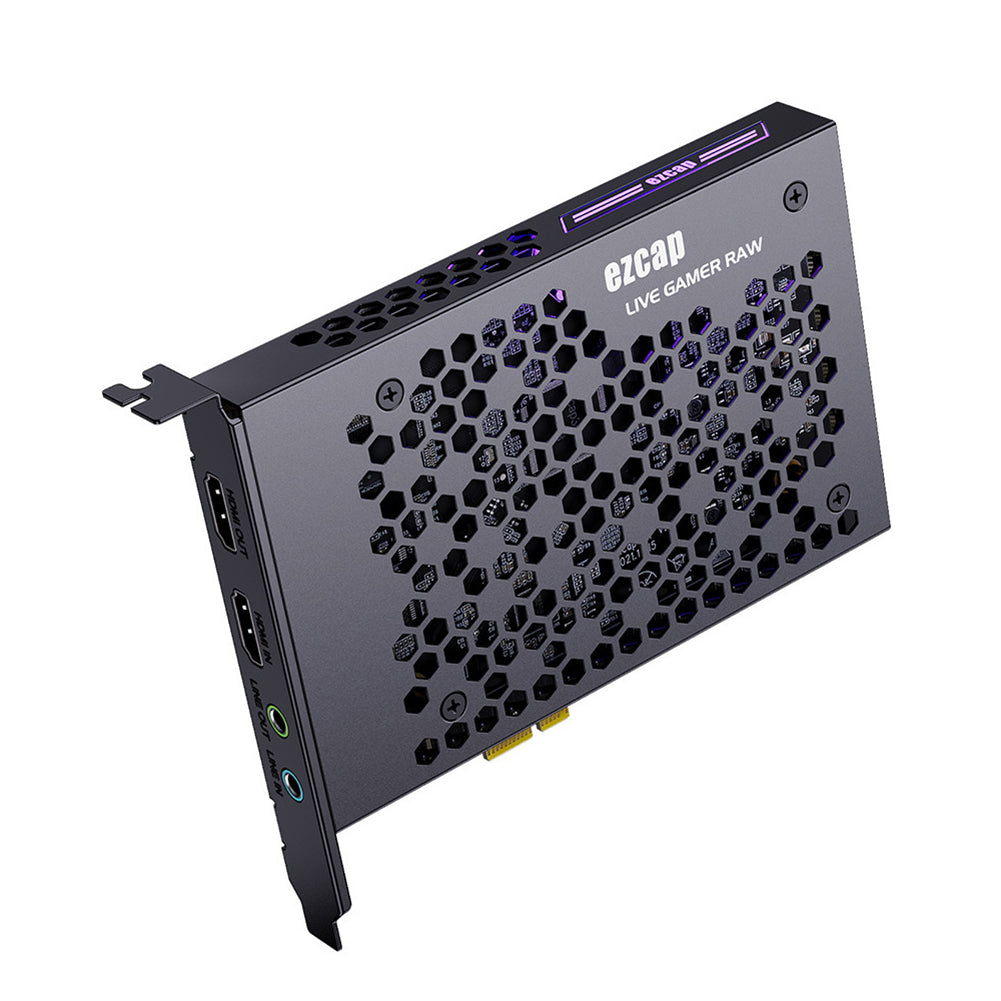

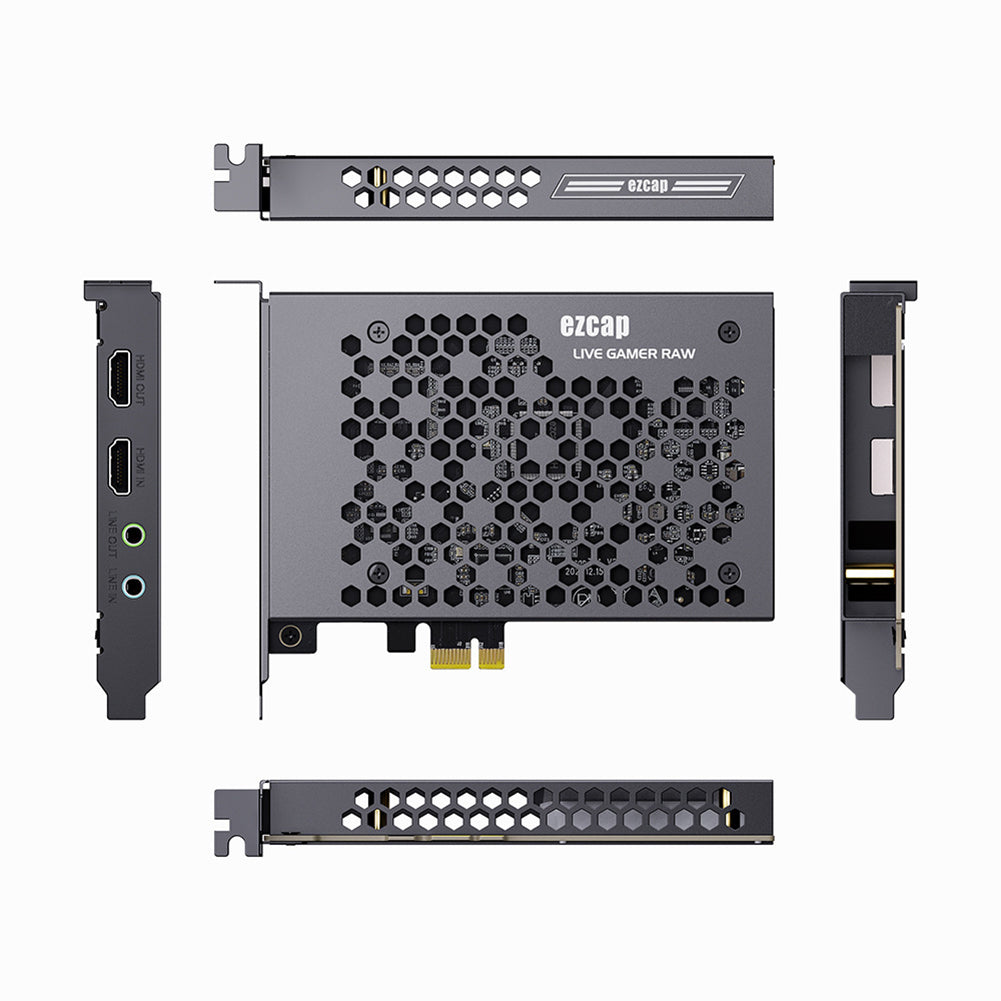

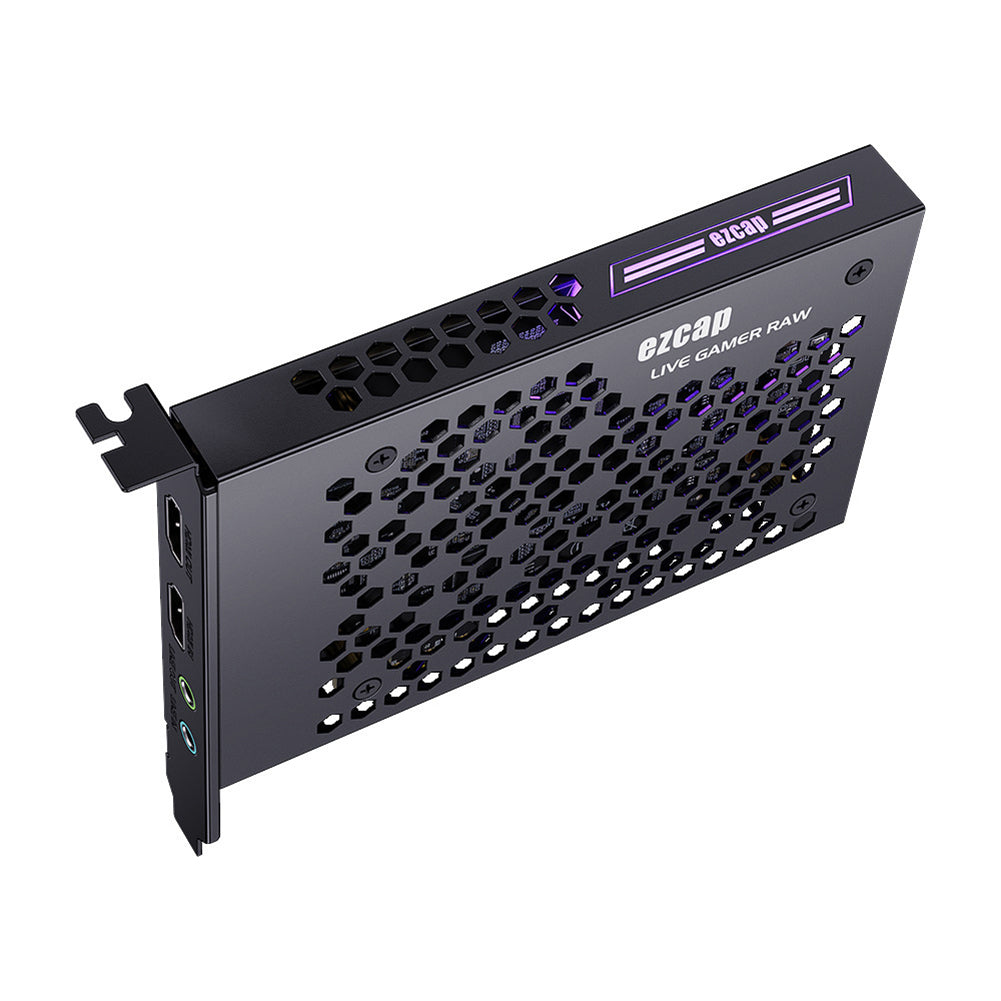

- Package contents: ezcap324B Live Gamer RAW 4K game capture live card, user guide
- Board Dimensions: 12.6 x 12.1 x 2.2 cm
Package List:
- 1 x Capture card
Packed safely in Retail box.
