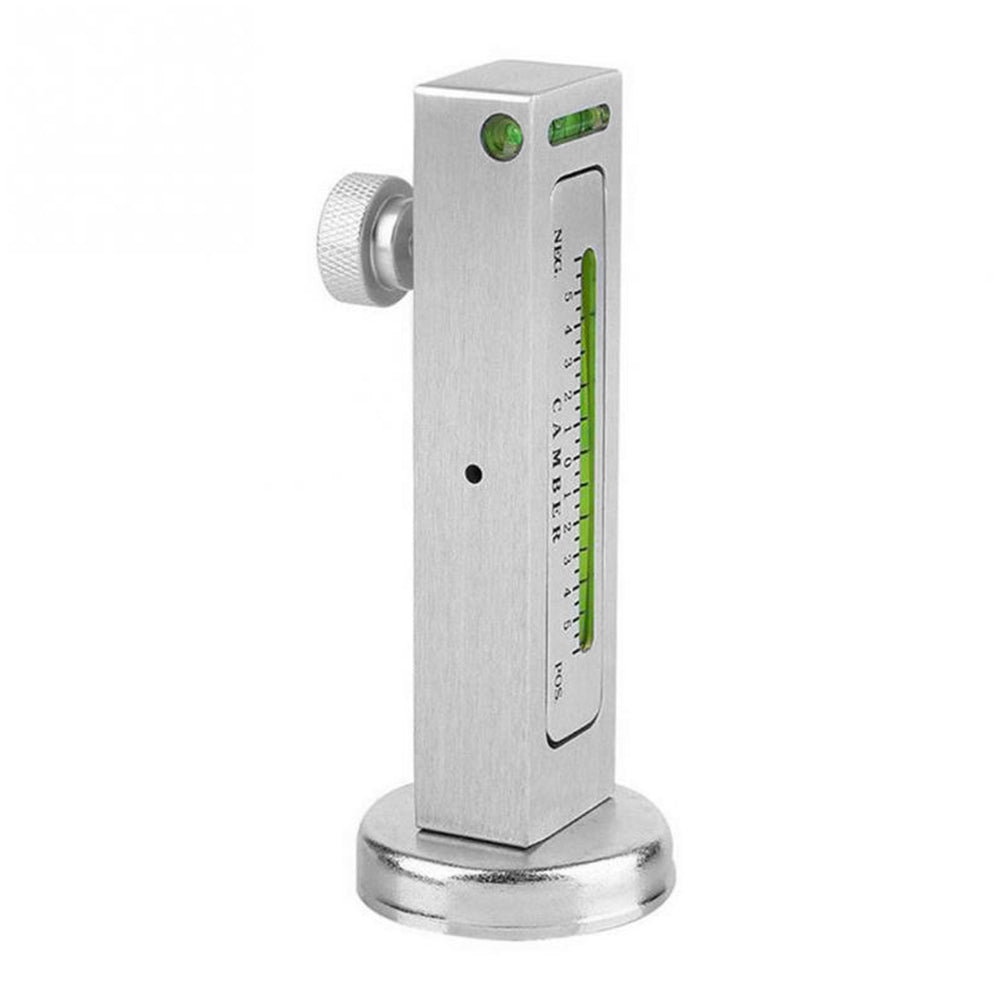

Main Features:
- Measure the camber and camber on the wheel hub or brake disc.
- Suitable for precise checking of caster and camber angles.

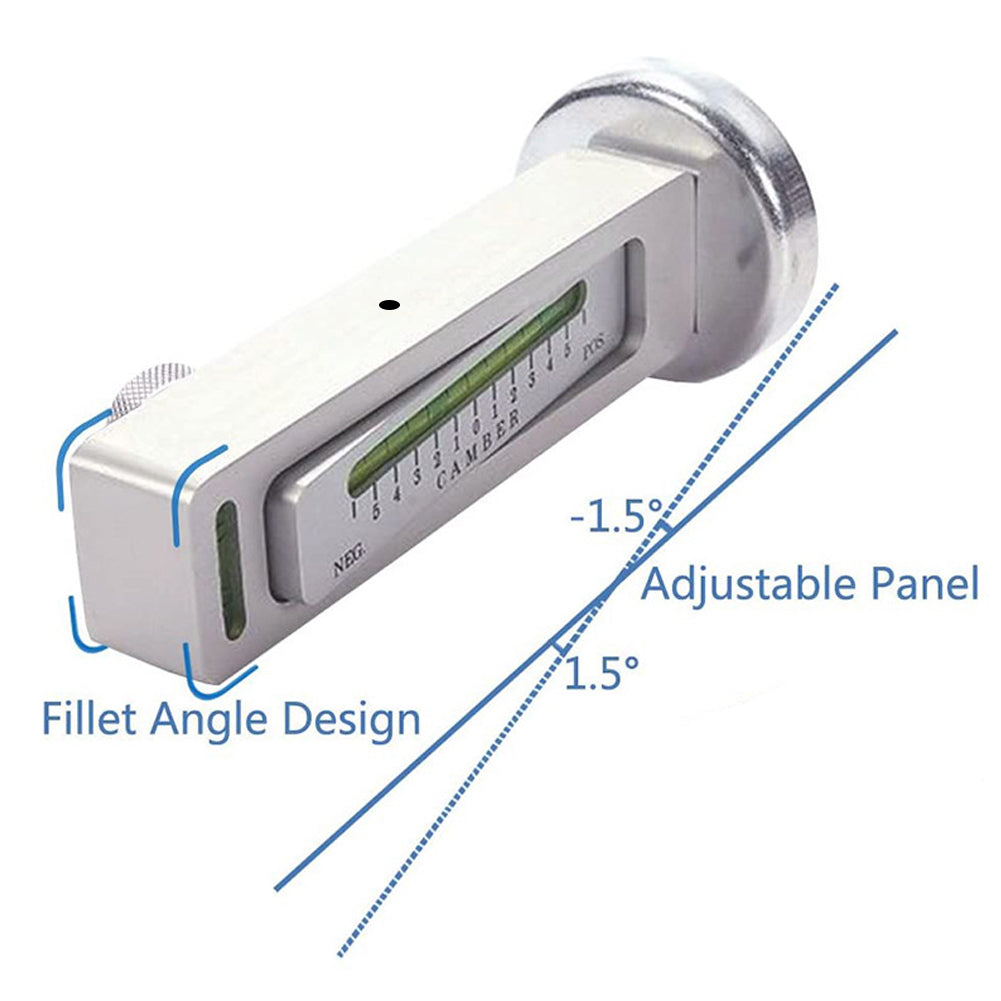

- It has a simple leveling function from -5 degrees to 5 degrees.
- Allow for adjustments to maintain correct wheel alignment, even tire wear.
- Allow you to return the strut to its original camber position after disassembling and reassembling the suspension, or check the change in camber angle before reinstallation.
- Easy to read and operate.Save time and money.
Instructions for use:
- Remove the four-wheel alignment sensor (clamp) and remove the tire;

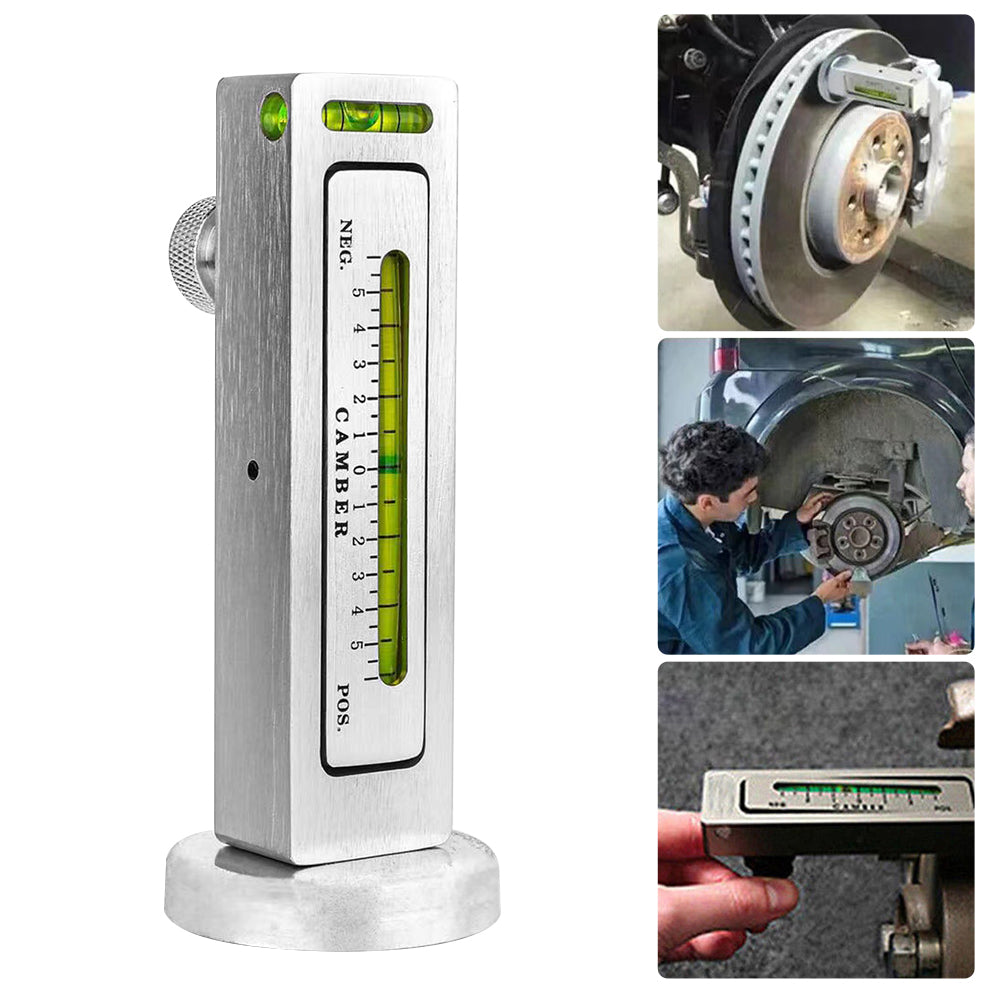

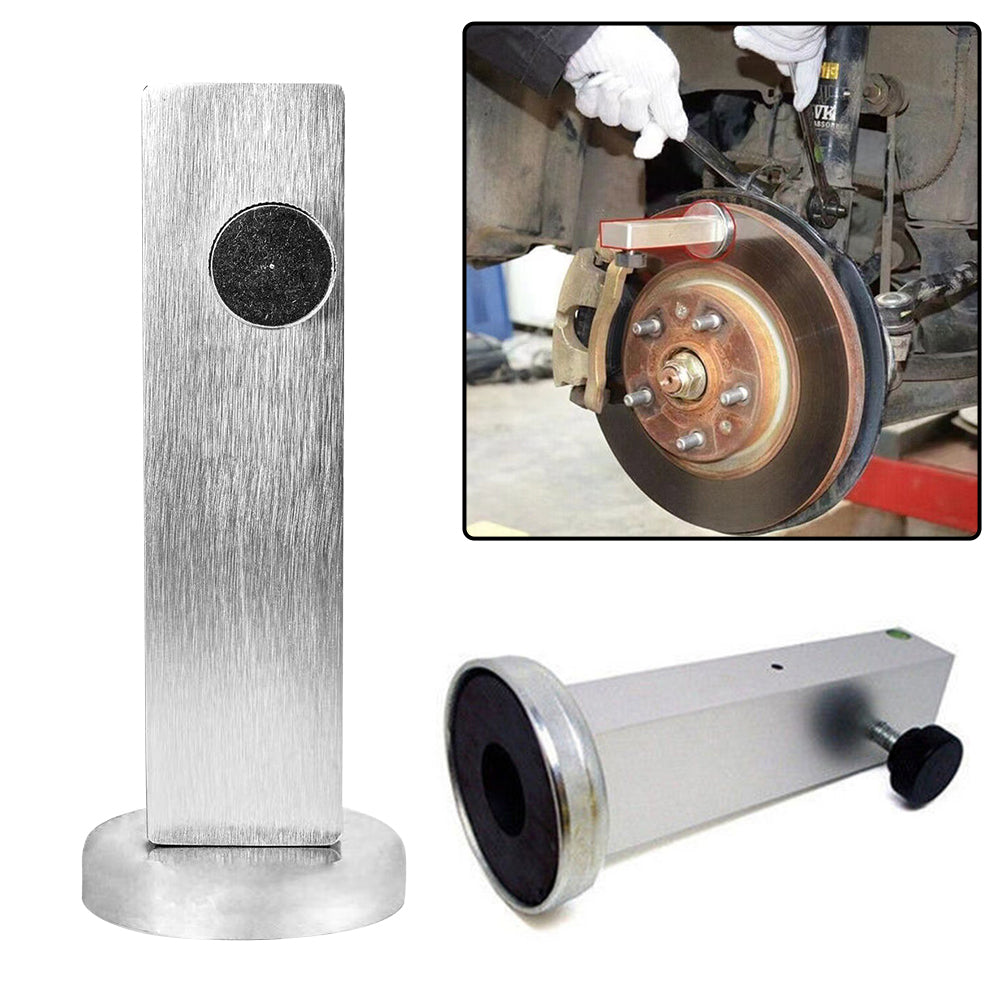

- Carefully maintain the magnetic level on the side of the brake disc;
- Adjust the liquid level to zero;
- Special positioning components required for installation;
- With the help of the degree indication of the magnetic position, use specialized tools to adjust the positioning component to the desired measurement angle.
- If there is a slight deviation in the re measurement of the locator, just fine tune it at the bottom of the vehicle. (In general, slight deviations will not lead to positioning failure)
Specifications:
- Material:Aluminium
- Color:As Picture

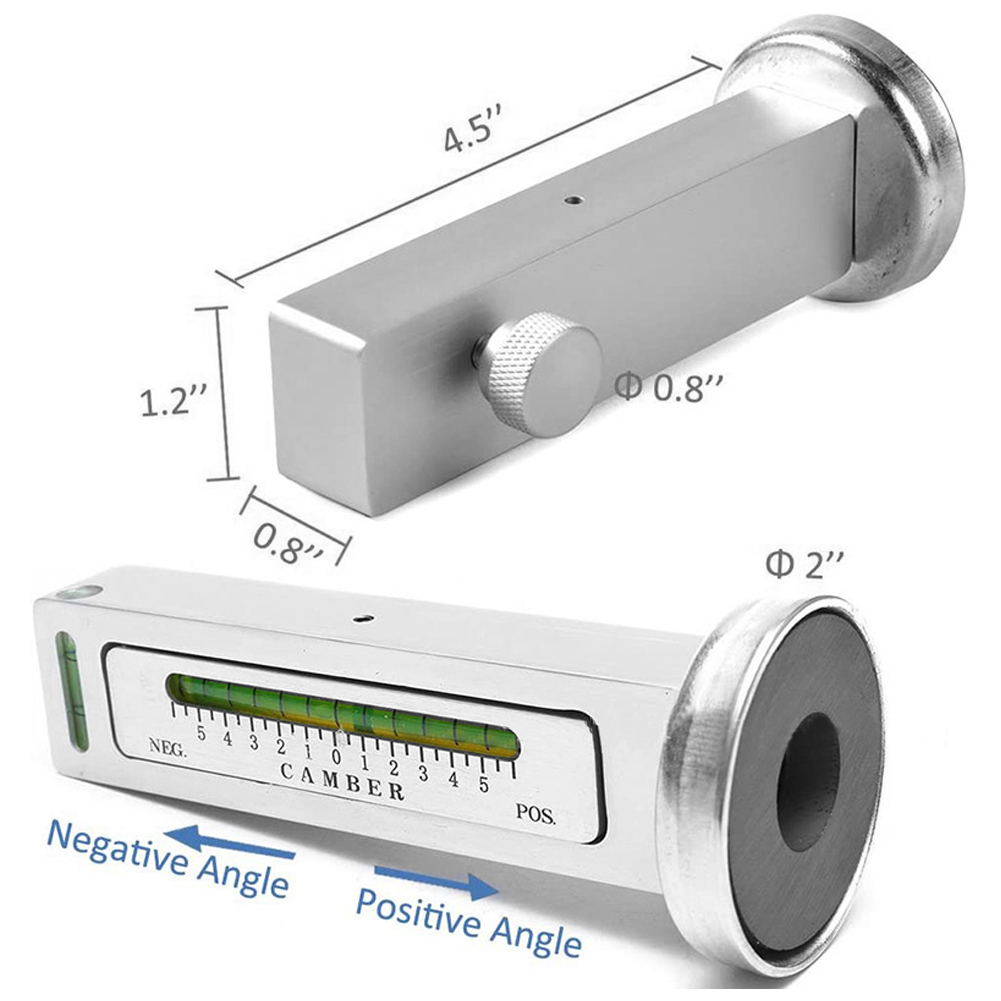

- Size:13cm/5.1inch×5cm/1.97inch
- Length: about 1500mm
- Bubble number: 5
- Measurement range: 1.5mm
- Measurement accuracy: 99
Package Includes:
- 1Pc x Magnetic Gauge Tool
Note:
- Please allow 1-3cm differences due to manual measurement.
- Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!
No Retail Box,Packing Safely in Bubble Bag.
