Feature:
- This remote control is widely used, mainly for flipping garage doors, remote-controlled electric retractable doors, remote-controlled barrier barriers, remote-controlled rolling shutter doors, sliding doors, remote-controlled LED lights, LED controllers, remote-controlled bus doors, anti-theft alarms, electric door alarms, MP3 motorcycle anti-theft alarms, etc
Specification:
- Modulation method: ASK (amplitude modulation)
- Encoder type: Copy
- Transmission frequency: 433/315 MHz
- Size: 65.6 * 41mm
- Weight: 23.8g
- Working voltage: DC 3V (3V/2032 button battery)
- Transmission distance: 50-70 meters (in open environments)
Purchase information
- Before purchasing a remote control, it is necessary to know the frequency and chip model of the remote control, which is suitable for rolling shutter doors, roller shutter doors, telescopic doors, garage doors, road gates, etc
Selection steps
- Confirm that the original remote control can be used normally
- Check if there are any words such as' learning code ',' copy ',' duplicate copy ',' dial code ', or if they have been copied before on the back. If there is, just shoot the corresponding frequency directly. If not, open the remote control and check the frequency and chip model.
- First look at the frequency, then look at the model. The chip model supports shooting by frequency

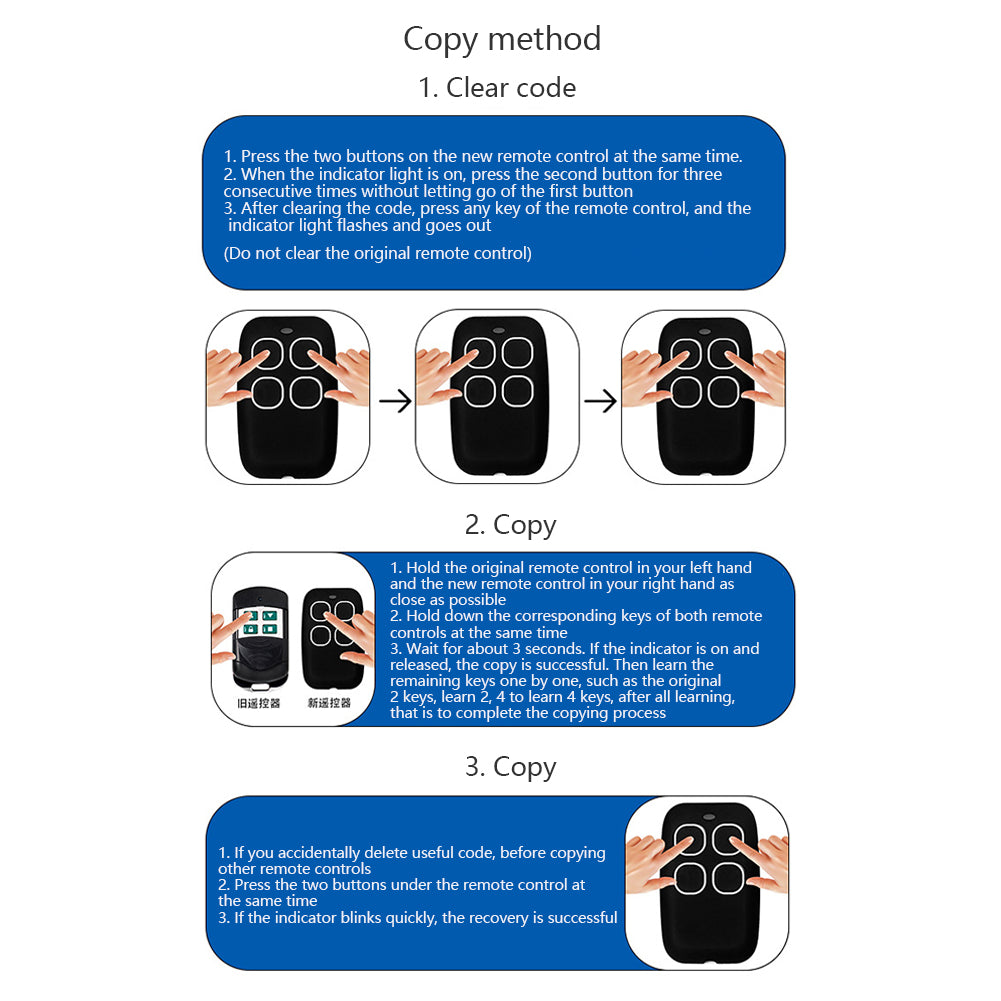

Copy method
1. Code clearing
- Simultaneously press and hold both buttons on the new remote control
- Wait for the indicator light to turn on. While not releasing the first button, press the second button three times in a row. If the indicator light flashes quickly, it indicates successful code clearing
- After clearing the code, press any key on the remote control, and the indicator light will flash once to turn off. Do not clear the code on the original remote control
2. Copy
- Hold the original remote control in your left hand and the new remote control in your right hand as close to each other as possible
- Hold down the corresponding keys on both remote controls simultaneously without releasing them
- Wait for about 3 seconds. After the indicator light stays on, release it to indicate successful copying; Then learn the remaining keys one by one, for example, if there are 2 keys originally equipped, learn 2 keys, and if there are 4 keys, learn 4 keys. After learning all of them, the copying process is completed
3. Recovery
- Accidentally delete useful code before copying other remote controls
- Press and hold both buttons under the remote control simultaneously
- Wait for the indicator light to flash quickly to indicate successful recovery
Package including:
- 1pc * Remote Control Duplicator
Note:
- There could be some slight differences in the color tone of the pictures and the actual item.
- Please allow 1-2mm differs due to manual measurement, thanks.
No Retail Box,Packing Safely in Bubble Bag.
