The BSIDE X1 product is a future-oriented electrical tester created by the BSIDE brand designer.
The product has a 2.0-inch smart display, and has the test attributes of a voltage detector and a smart multimeter. With the increasing importance of electricity safety, this product will become a necessity in your daily life.
At the same time optimize the use of functions and test experience. The sensitivity is adjustable. And added the latest design of “High sensitivity detection mode“(6V~1000V) .
Features:
- Non-contact and pen shaped desigh,convenient to operate and carry.
- EBTN ultra-clear display, clear and easy to read.
- Dual mode operation. (Low sensitivity and High sensitivity)

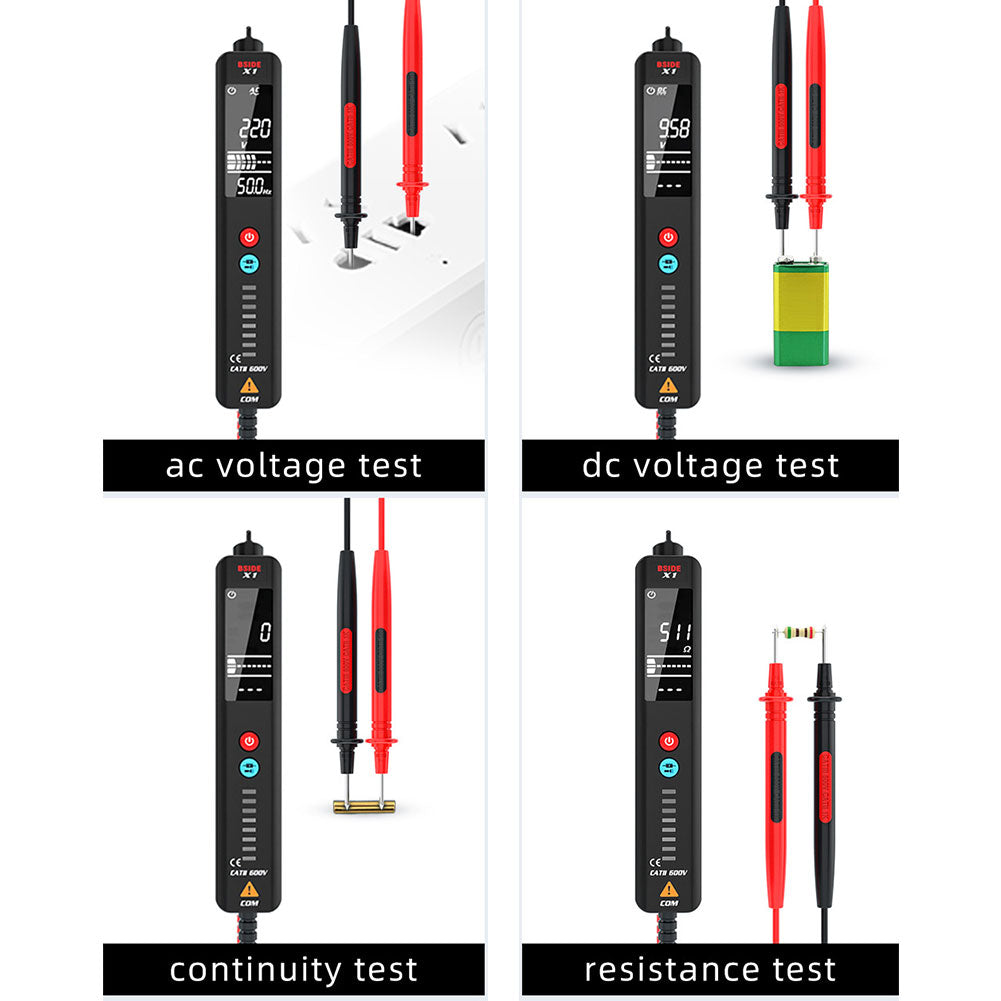

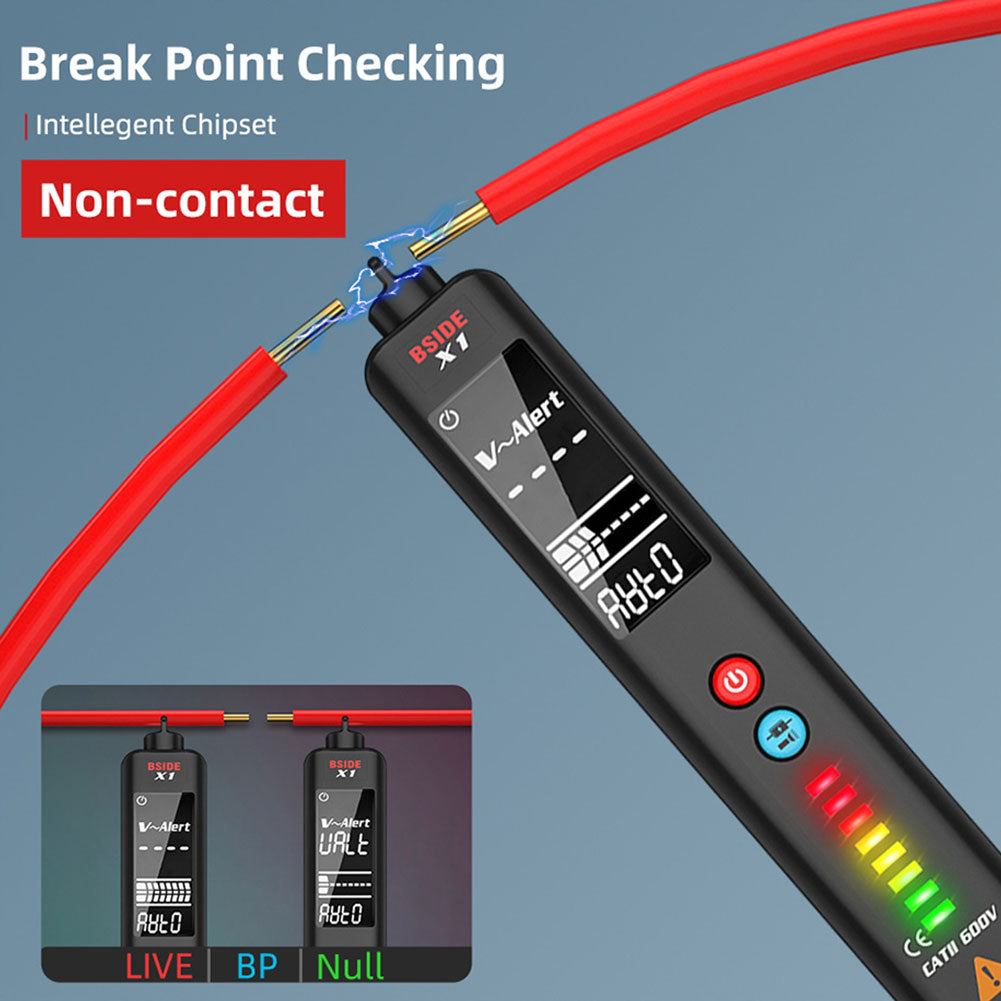

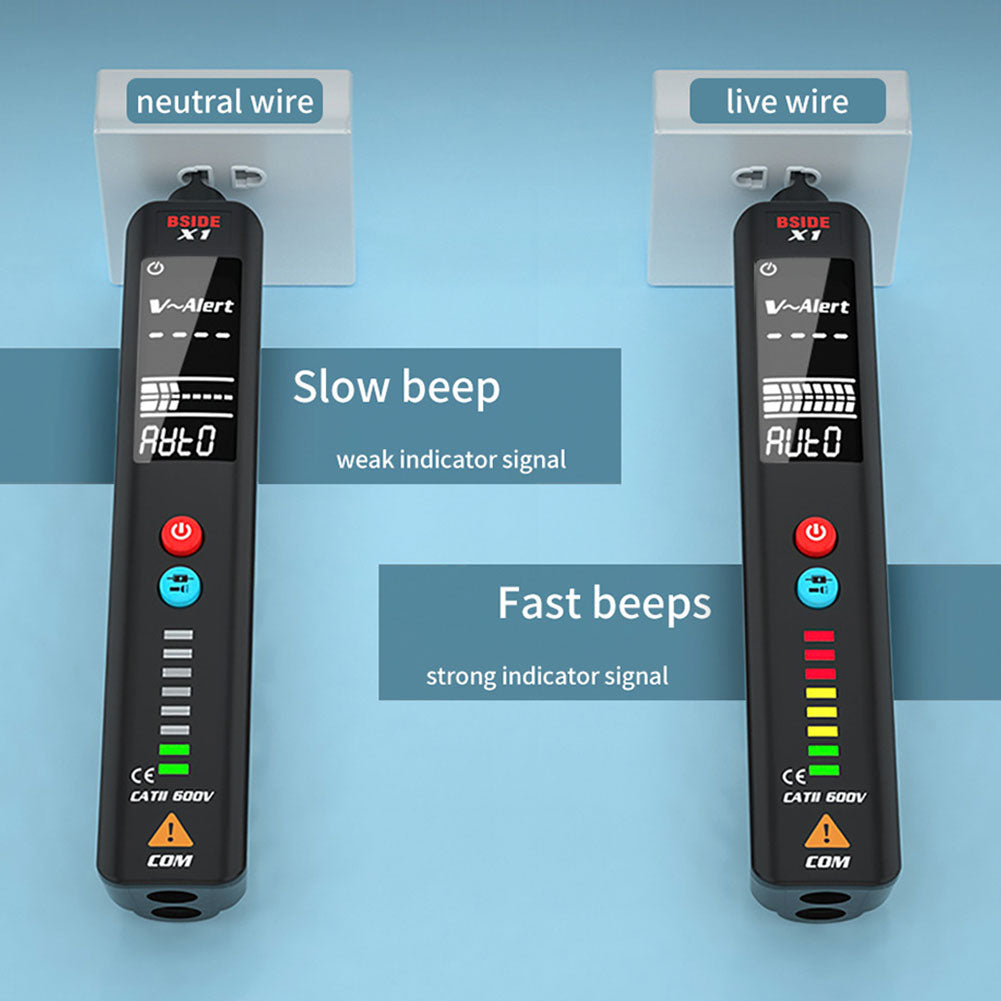

- Has Induction dangerous voltage alarm, DC/AC voltage, Resistance, Frequency, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, flashlight features etc.
- This product has a Self-test function at boot time. It can effectively detect whether the product can work normally and avoid wrong judgment. More Safety!

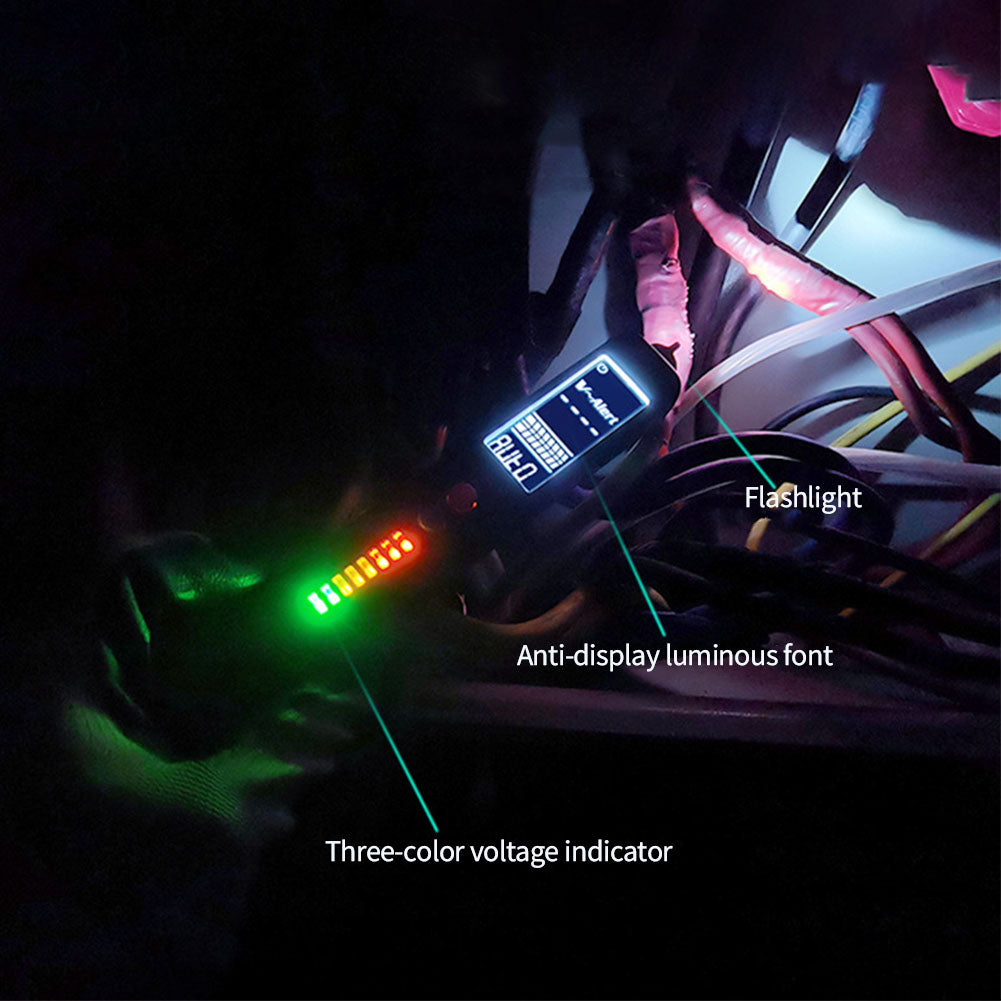

- Has 8 LED indicators in 3 colors (Red/Yellow):Automatic identification of high/medium/low voltage.

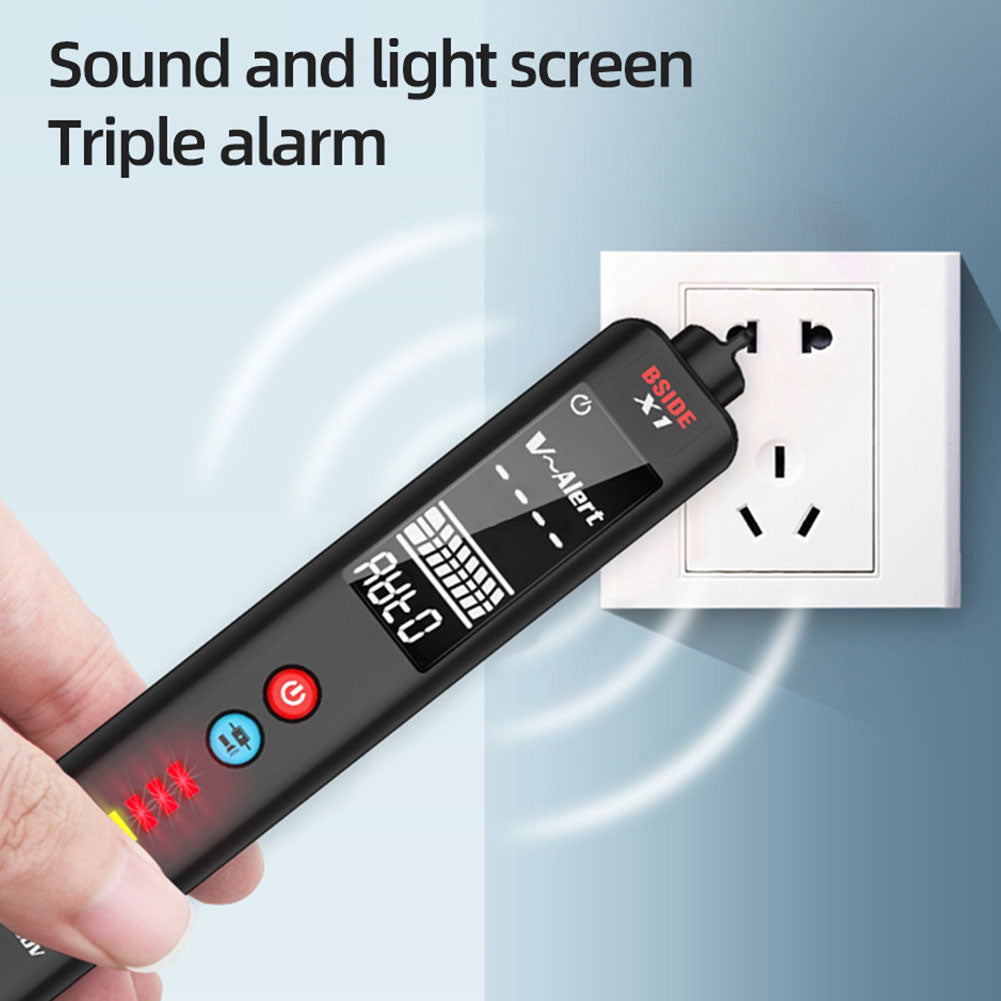

- Alarm mode:Sound、Analog strip and light (Red/Yellow).

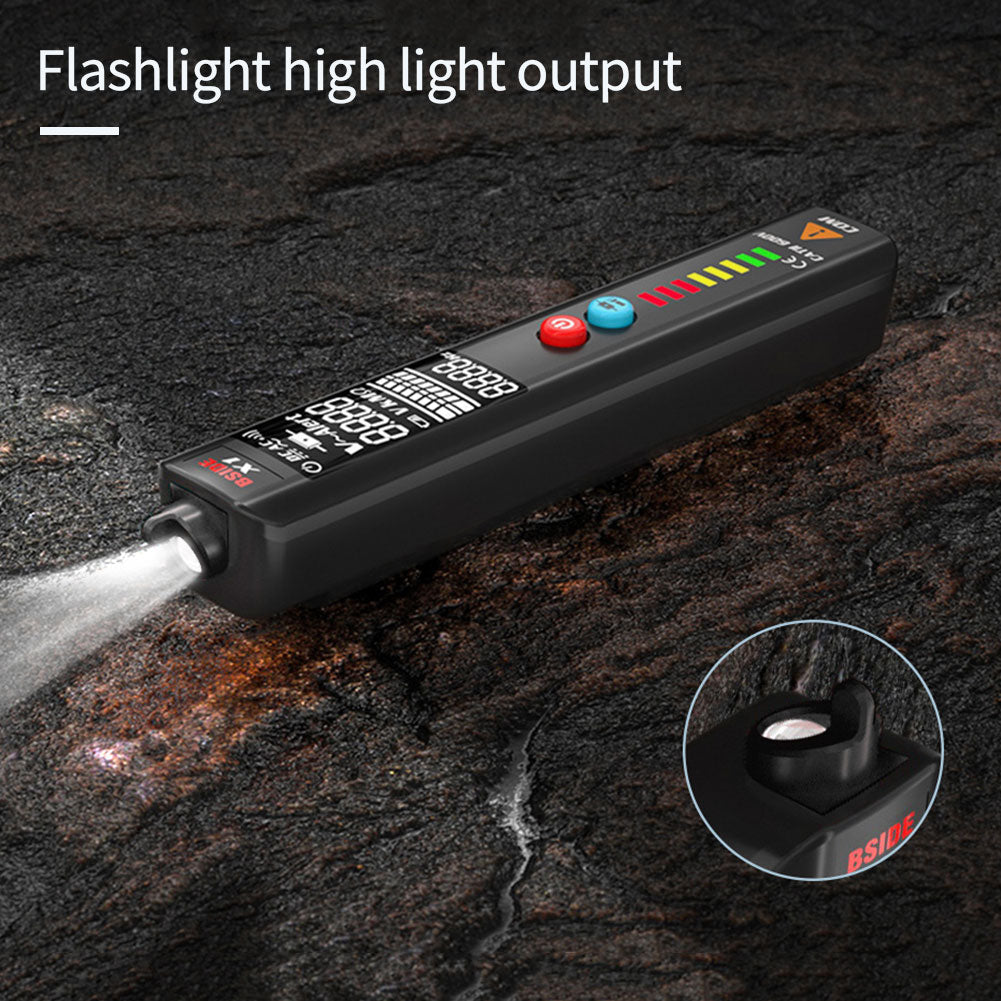

- LED spotlight, Battery low voltage reminder, Auto power off features.
- Safety level: CAT II 600V.
- Compliance with international safety standards.
Specifications:
- MAX Voltage:500V DC or 500VAC
- Frequency:40Hz~1000Hz
- Resistance:10MΩ 1Ω ±(1.2%+3)
- Continuity:<30Ω
- Non-contact Voltage Detection:6V~1000V; 90V~1000V
- DC/AC Voltage Test: 0.5V~500V/1V~500V
- Maximum Display: 2000 Counts
- Auto Power Off Time: About 5 Minutes
- Meter Thickness: 1.5cm
- DC Voltage: 500V 0.1V ±(0.8%+3)
- AC Voltage: 500V 0.1V ±(1.2%+5)
- Non-contact Dangerous Voltage Detection:Yes
- Live/Neutral Check: Alarm Beep Sounds, LCD Screen Display Stripe
- Continuity Test: If the resistance is less than 30Ω, the beeper sounds
- Battery Test: Yes
- Power: 2 *1.5V AAA Battery(NOT Included)
- Size: 160*28*32mm

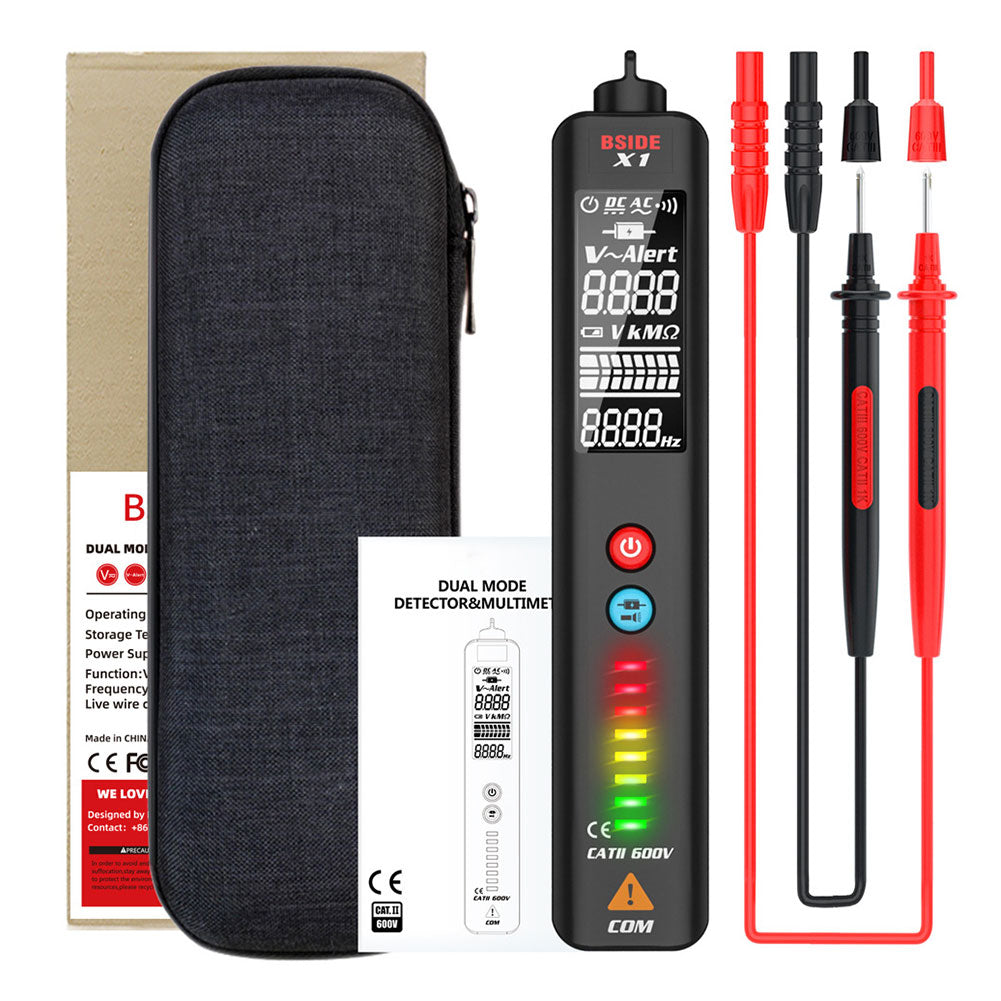

Package List:
- 1x Voltage Detector
- 1x EVA Portable Cloth Bag
- 1x High Quality Test Lead
- 1x English Manual
Note:
- Do not input voltages higher than 500V, showing higher voltage are possible, but it may damage the meter.
- When measuring high voltage, be careful to avoid electric shock.
- Disconnect the test leads from the circuit when completed measurement.
- Due to manual measurement, the size may be slightly different. Thank you for your understanding.
- Due to different light conditions and different monitors, item color displayed in photos may be showing slightly different from real object.
