Product introduction:
- This product USES the latest intelligent six base station positioning system, which is more accurate and faster than the traditional single base station and three base stations.Adopt the latest V3 Google map to support most countries;With sound alarm function, small size, clear voice, long standby time, stable performance, easy installation;Mainly used for home monitoring, children, the elderly, pet monitoring and monitoring, cars, warehouses and other anti-theft tracking functions.
- Compact size, easy to carry.
- Fast signal acquisition.
- Low power consumption, long stand-by life.
- Simple operation and convenient installation.
- Widely used for household monitoring, children, pets, cars, etc.
Technical parameters:
- GSM Frequency Band: 850/900/1800/1900MHz
- GPRS: Upload300, TCP/IP
- Working Voltage: 3.5-4.2vdc
- Positioning Standby current: :1mA
- Sound Control Current: 1.5mA
- Communication Current: 150mA
- Working Environment Temperature: -20℃~+50℃
- Working Environment Humidity: 20%~80%RH

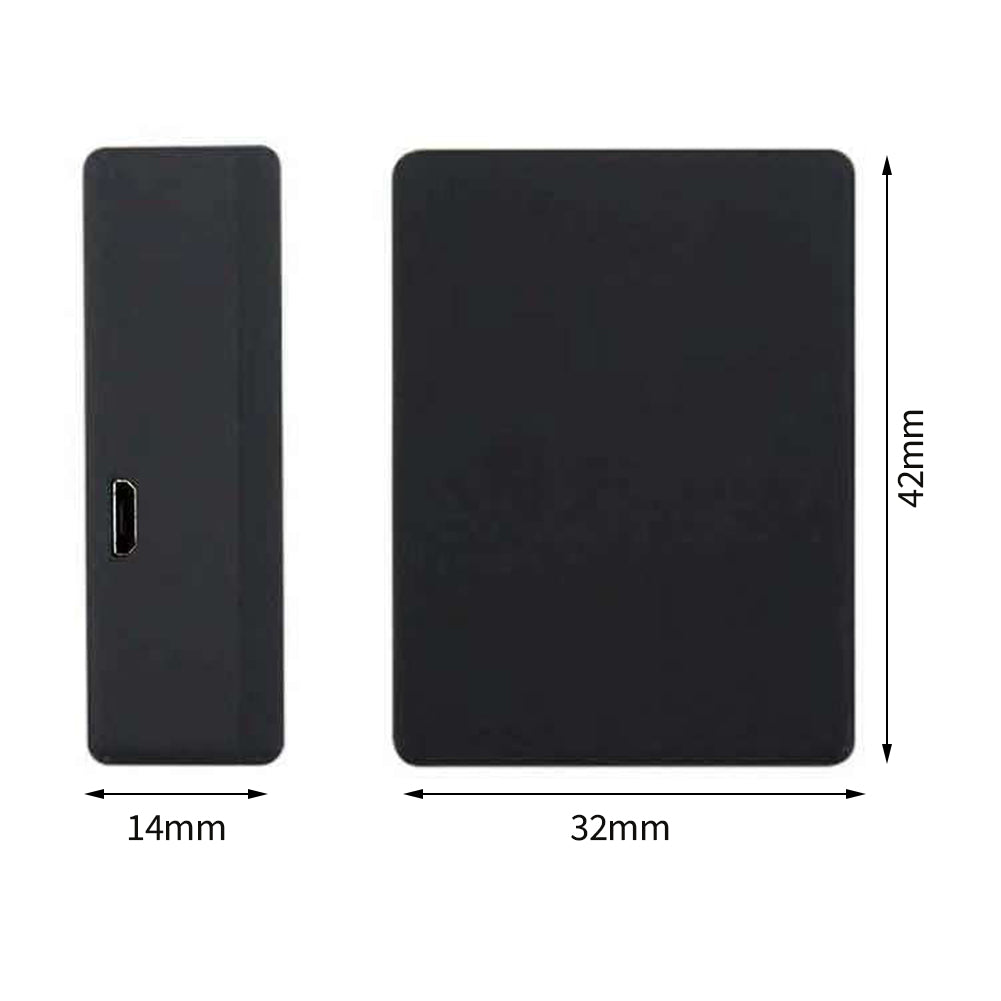

- Device Appearance Dimension: 43(L)*32(W)*13(H)mm
- Only Device Weight: 20g
- Full Set Weight: 101g
- Device Color: Black
- Talking Time: 5.5 Hours
- GSM Chip: MT6261 Low Power Consumption, Power Saving, Noise Reduction Technology
- Battery: Gel Polymer 450 ma

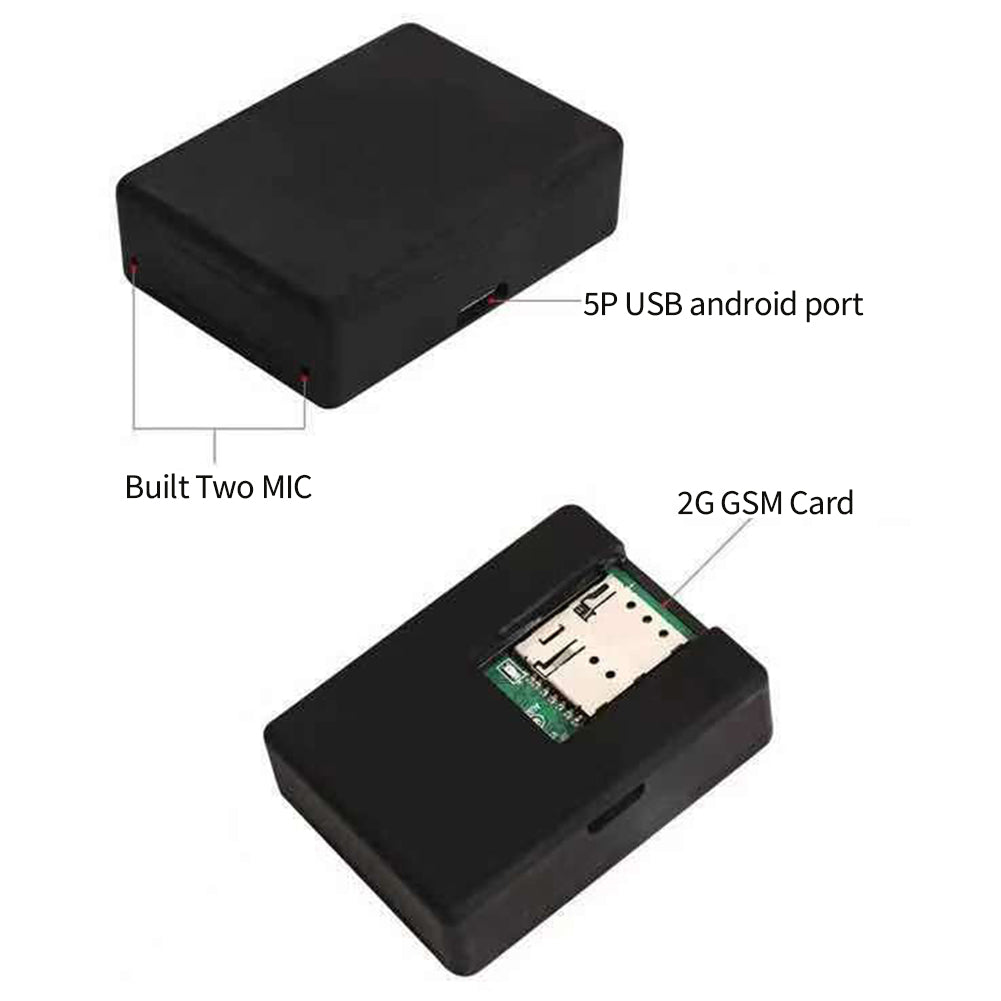

- Charging Port: Android USB (5P)

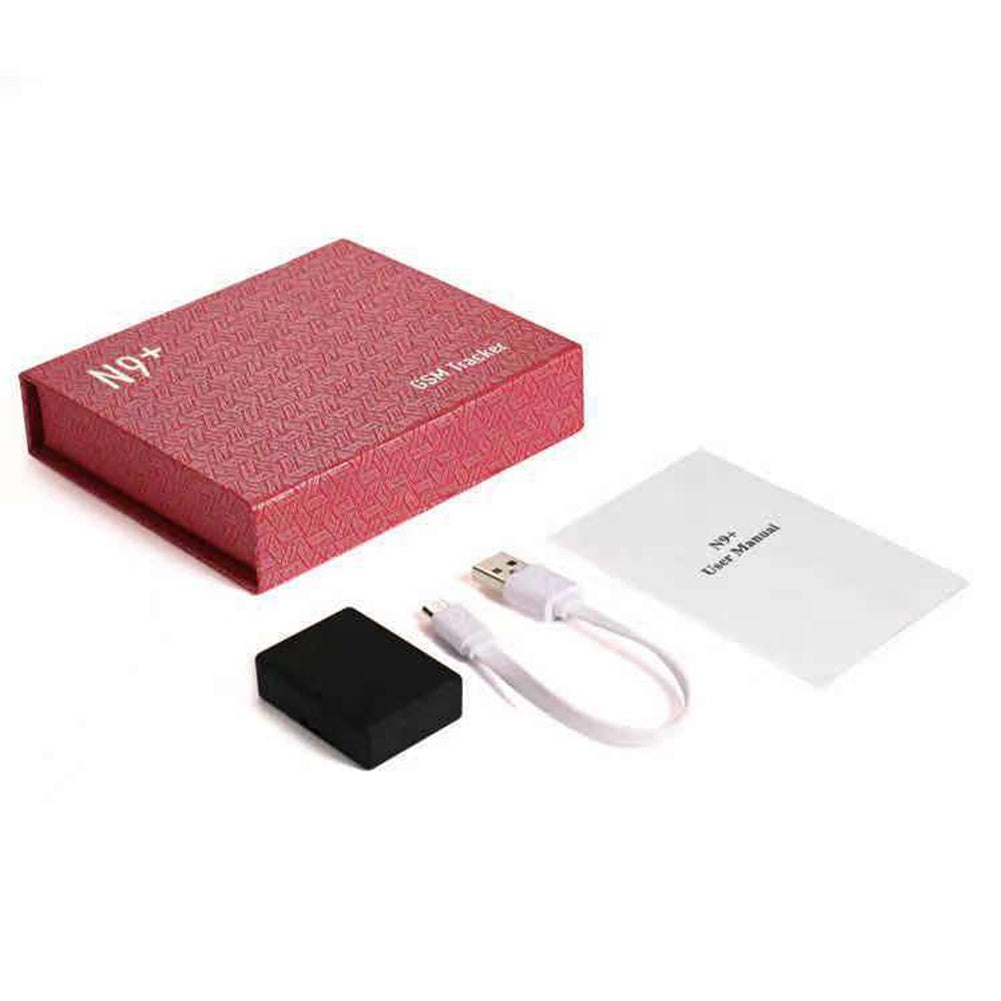

Package includes:
- 1 x Mini Tracker(Not include the charger)
- 1 x USB Cable
- 1 x User Manual
Packed Safely in Retail Box.
- SIM card must be opened GPRS data; coz it is default off state
- Send DKJK SMS to turn on GPS.
- Send GBJK SMS to turn off GPS.
- Before using the new machine should be filled with electricity, in order to achieve the best effect.
- The charger papa meters: 5.0V, 500 MA, in order to avoid damage the host.
- When installing, please pay attention to GSM network signal strength, do not install in no signal or weak signal of place, so as not to affect the use effect.
- When ran out of battery, the indicator light is not bright, so please charging before use.
- When you couldn't get through the phone, please re-inserting the card and booting or charging again then re-test.
- When could not be automatic answer, please re-inserting the card and booting.
- When could not reply the message, please check whether the slimcard have to owe a fee, or check whether the slimcard is filled with text messages, then try it again.
- This product is forbidden for illegal purposes, Otherwise your peril.
