Features:
- European standard trailer, commercial vehicle, semitrailer, etc.
- This supplies power to run the caravan fridge and charge the caravan battery while you drive - ensuring you reach your destination with everything ready for use

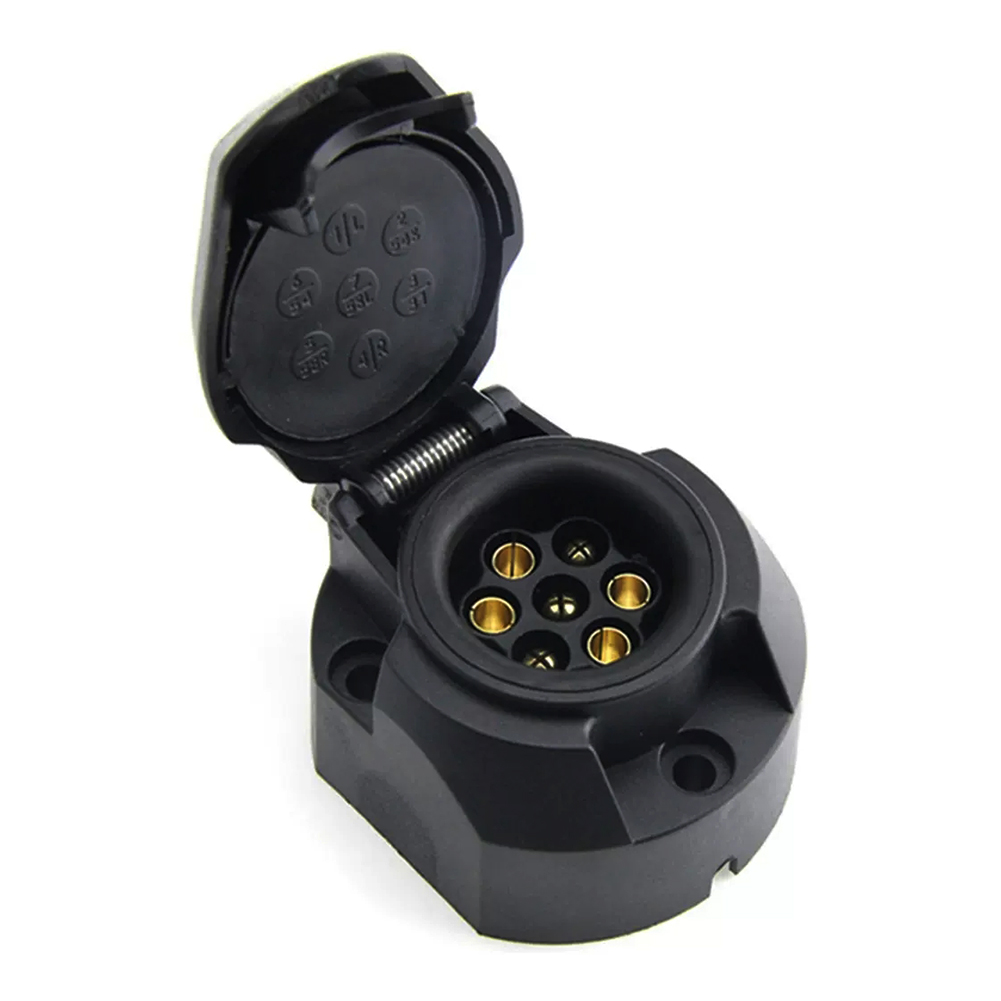

- It is a 7/13 pin tow bar electrics socket
- Black plastic, 13-pole, trailer socket europe style
- Establish a secure connection between your towing vehicle and trailer with this 13-pole

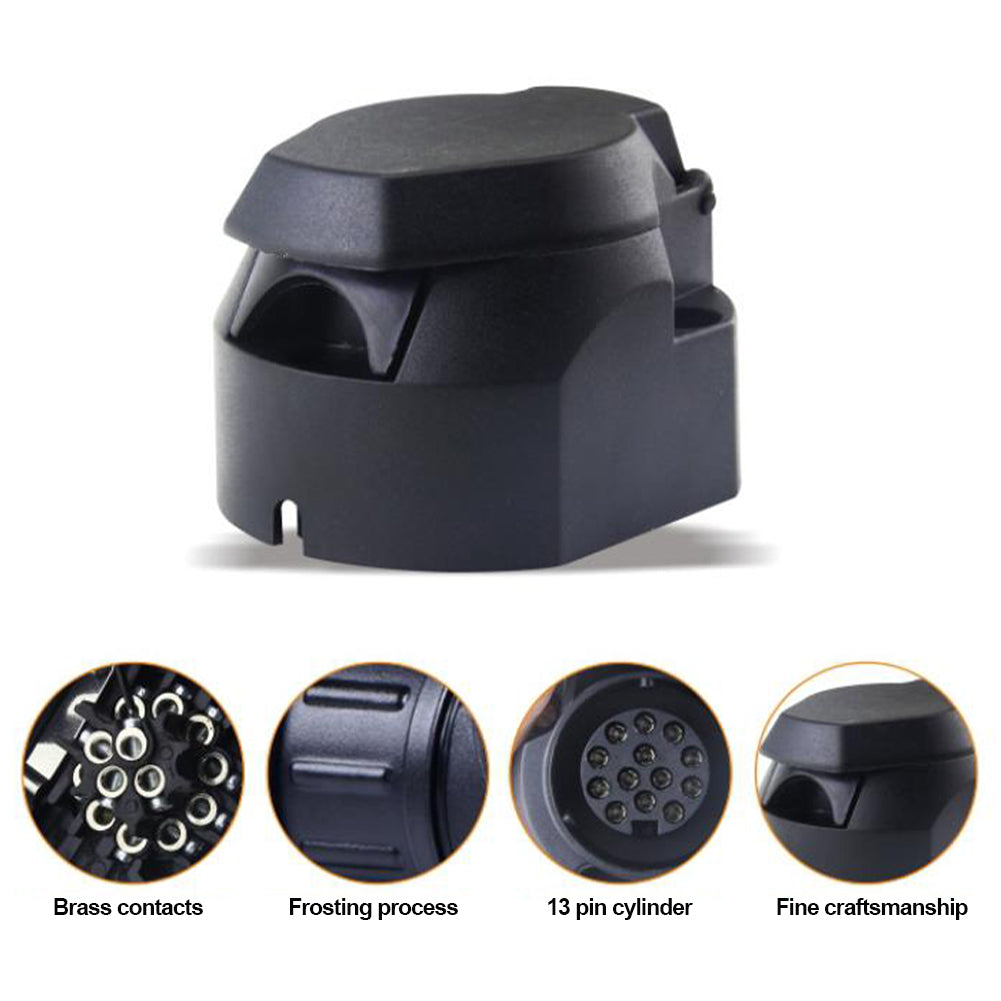

- Black plastic socket has non-corroding, shock-resistant interior design that eliminates shorting out
- Ideal for use with detachable tow bars as you can hide the sockets away with this product and not have the electrics on show when you are not using the tow bar
- A feed for the caravan interior lighting is also available in socket so you can use your car battery to operate your caravan lights while you are hitched-up
Specification:
- Number of cores:7/13cores
- Voltage:12V DC

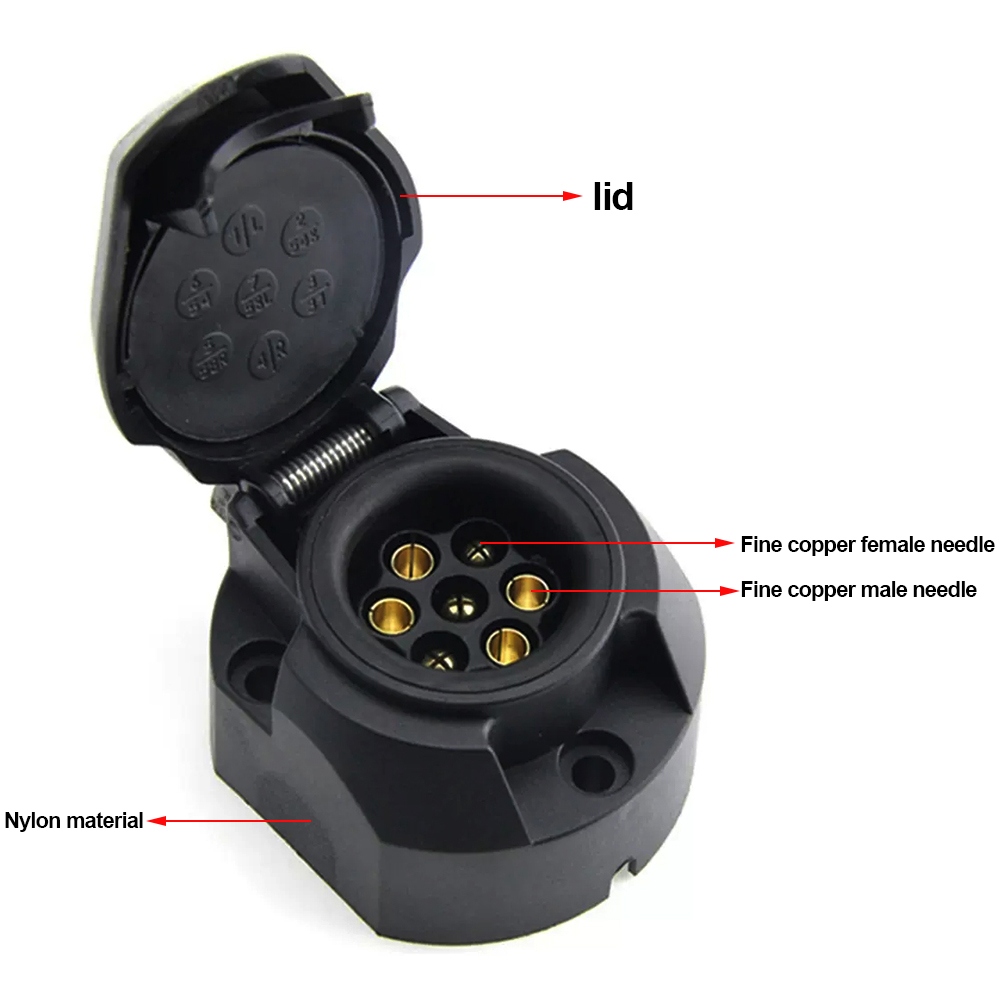

- Material:Plastic and Copper.
- Color:Black

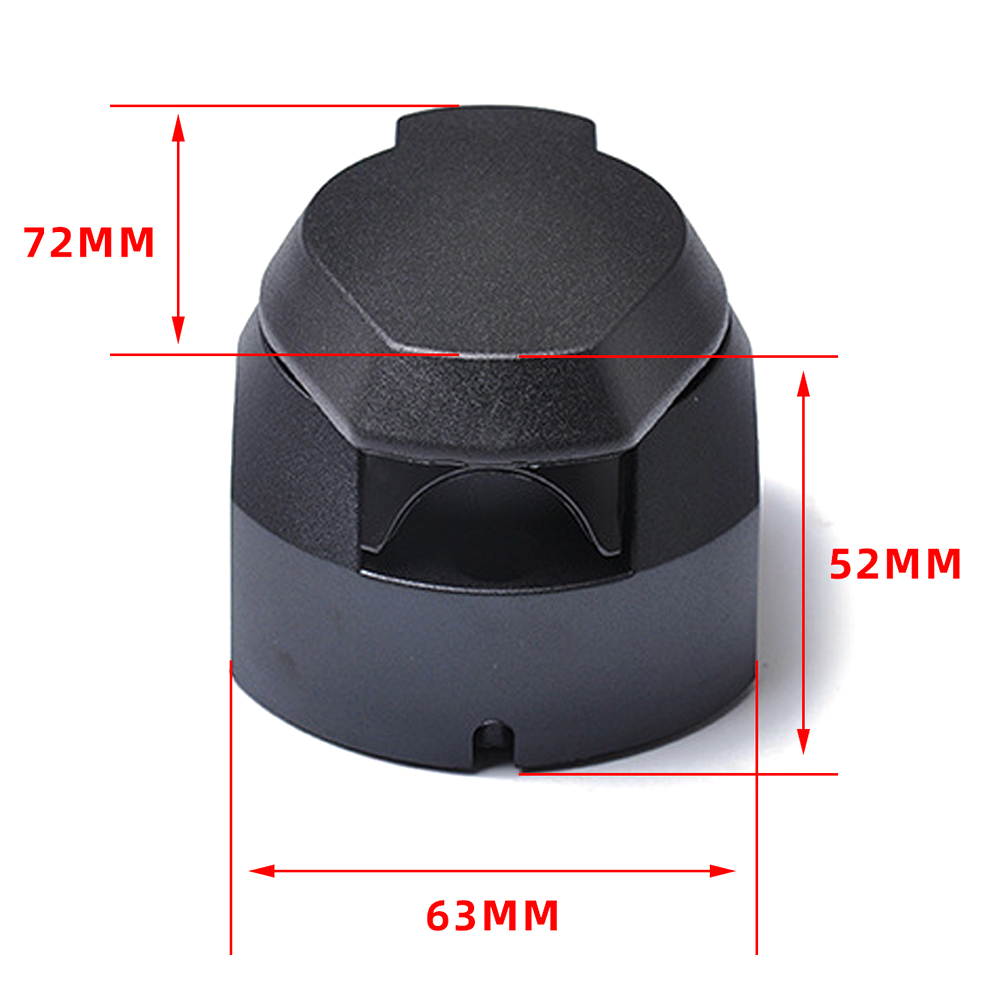

- 7Pin Size:7.3cm/2.87inch x 5.2cm/2.04inch;13Pin Size:6cm/2.36inch x 3.5cm/1.38inch x 5cm/1.97inch;

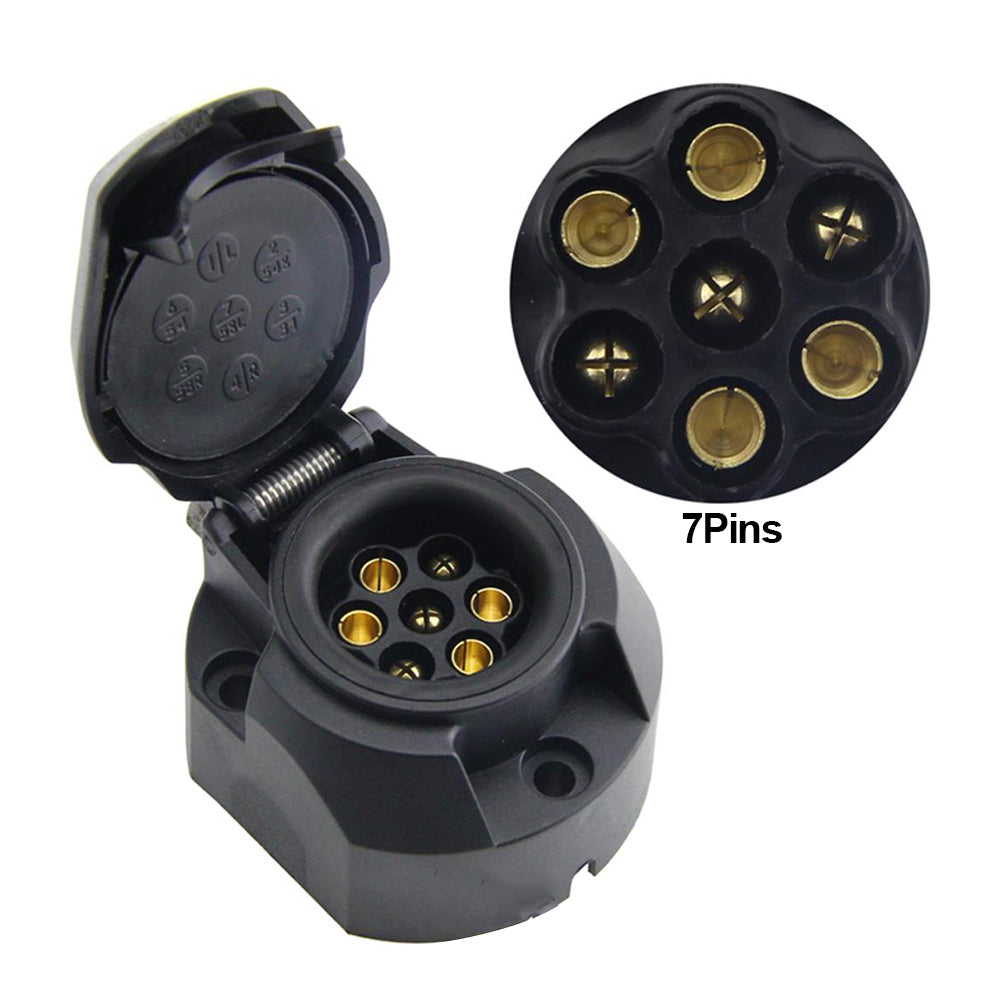

7 PinCable Function:
- PIN 1 - Yellow Wire (Left/H Direction Indicator)
- PIN 2 - Blue Wire ( Rear Fog Lamps )
- PIN 3 - White Wire ( Earth Return )
- PIN 4 - Green Wire (Right/H Direction Indicator)
- PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
- PIN 6 - Red Wire (Brake lights)
- PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )

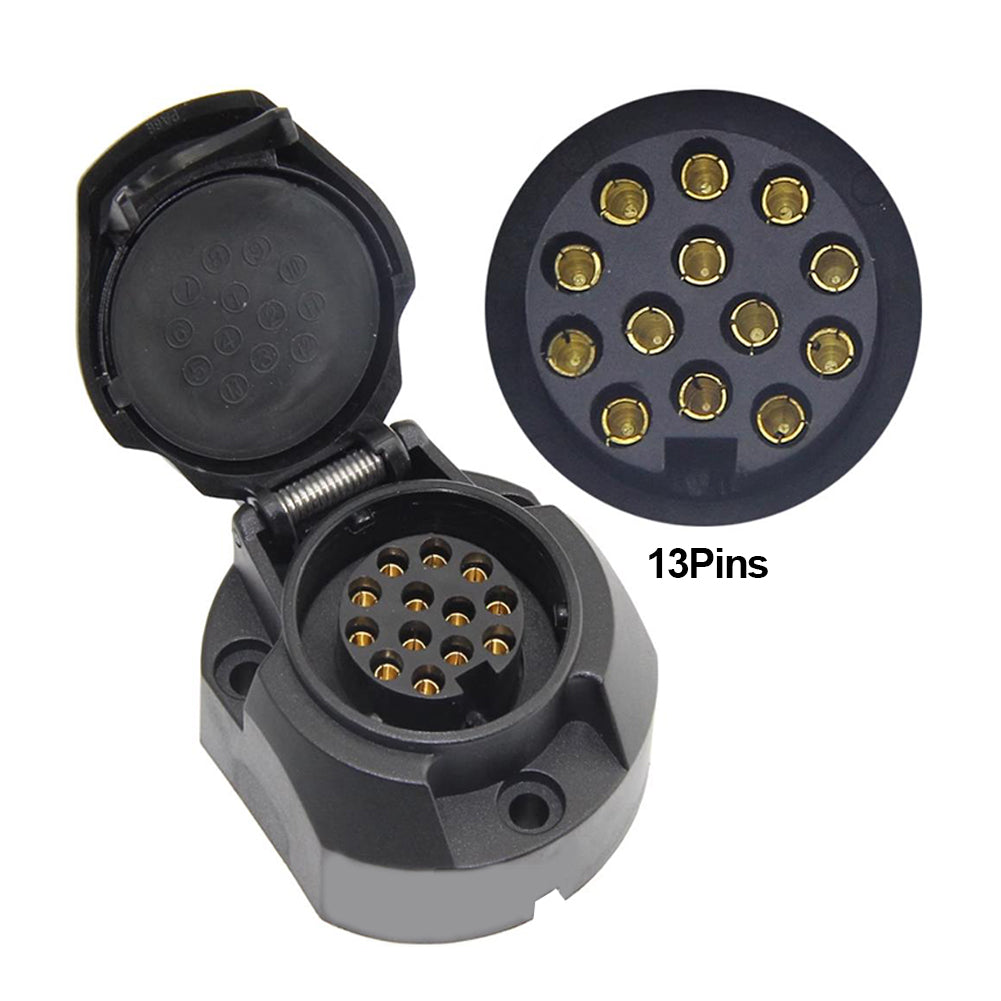

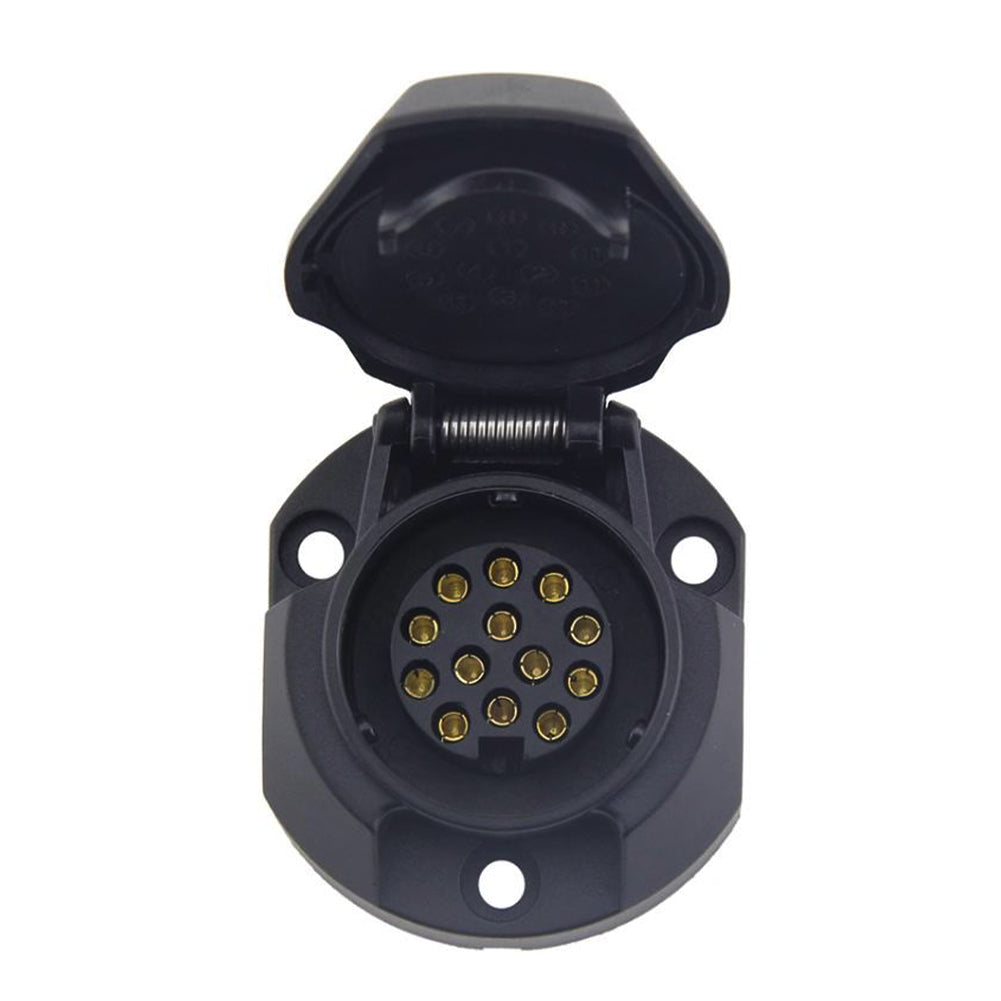

13 PinCable Function:
- Pin1 - Yellow Wire (Left Direction Indicator)
- Pin2 - Blue Wire (Fog Light)
- Pin3 - White Wire (Earth Return)
- Pin4 - Green Wire (Right Direction Indicator)
- Pin5 - Brown Wire (Right Tail & Plate Light)
- Pin6 - Red Wire (Stop Light)
- Pin7 - Black Wire (Left Tail & Plate Light)
- Pin8 - Orange Wire (Reversing Light)
- Pin9 - Red / Black Wire (12V Permanent power from battery)
- Pin10 - Blue / Red Wire (12V Ignition on ( Battery charging or Fridge)
- Pin11 - Blue / White Wire (Earth for Terminal 10)
- Pin12 - Gray Wire (NOT usually used)
- Pin13 - Green / White Wire (Earth for Terminal 9)
Package Included:
- 1 x 7/13-Pin Trailer Socket
NO Retail Box. Packed Safely in Bubble Bag.
