Features:
- The video capture can capture both HDMI-compatible video and HDMI-compatible audio, sending audio and
- video signals to computers and smart phones for preview and storage. Suitable for high definition
- acquisition, teaching recording, medical imaging, etc.
- * Support input max resolution 3840×2160@30Hz;
- * Support output max resolution 1920×1080@30Hz;
- * Support 8/10/12bit deep color;
- * Support AWG26 HDMI-compatible standard cable: input up to 15 meters,
- (1080P and below resolution);
- * Support most acquisition software, such as VLC.OBS .Amcap, etc;
- * Support For Windows.For Android and For MacOS;
- * Conform to USB Video and UVC standard;
- * Conform to USB Audio UAC standard;
- * Without external power supply, compact and portable.
Specifications:
- HDMI-compatible resolution : Max input can be 3840×2160@30Hz
- Support video format: 8/10/12bit Deep color
- Video output format : YUV.JPEG
- Video output resolution : Max output can be 1920×1080@30Hz
- Support audio format : L-PCM
- Input cable distance .: ≤15m,AWG26 HDMI-compatible standard cable
- Max working current : 0.4A/5VDC
- Operating Temperature range : (-10 to +55℃)

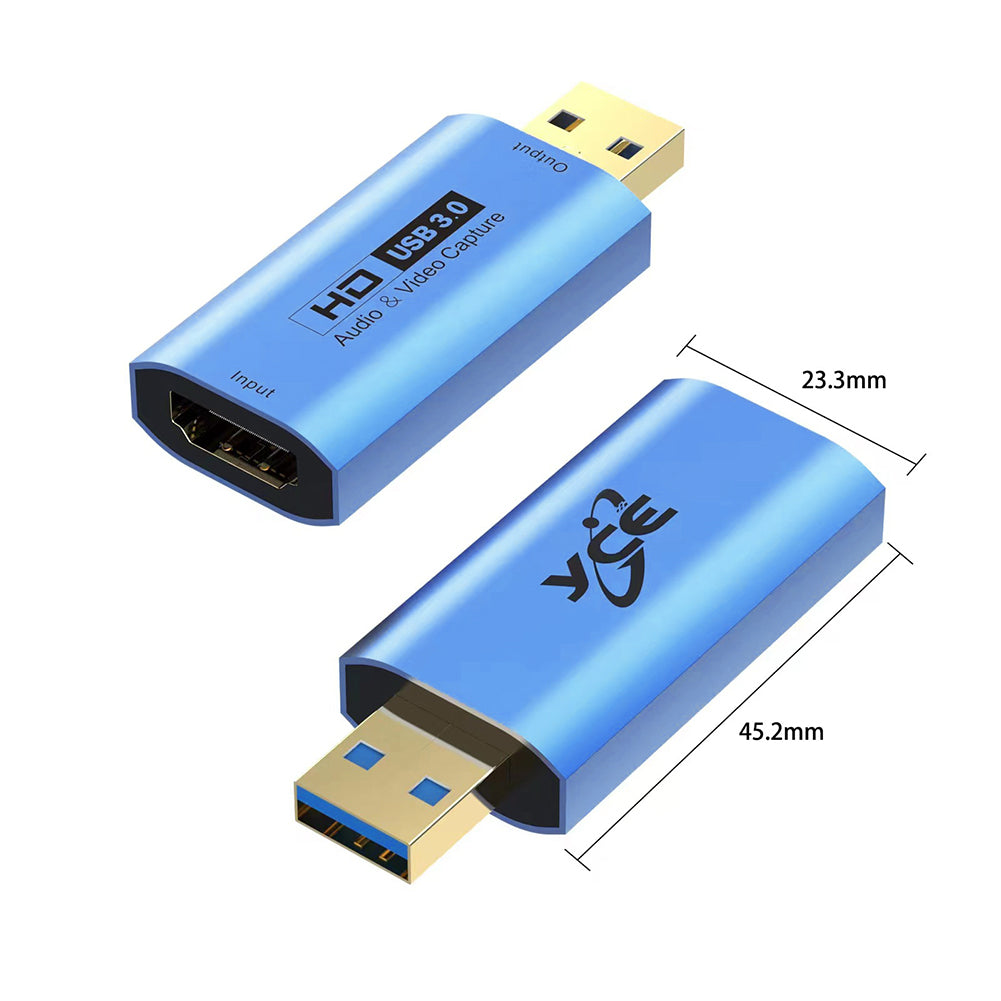

- Dimension (L x W x H) : 64x28x13 (mm)
- Computer hardware configuration requirements
- CPU: for PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above
- Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above
- Run memory: 4G RAM
Package included
- 1* Video capture
- 1* user manual
NO Retail box,Packed safely in Bubble bag.
