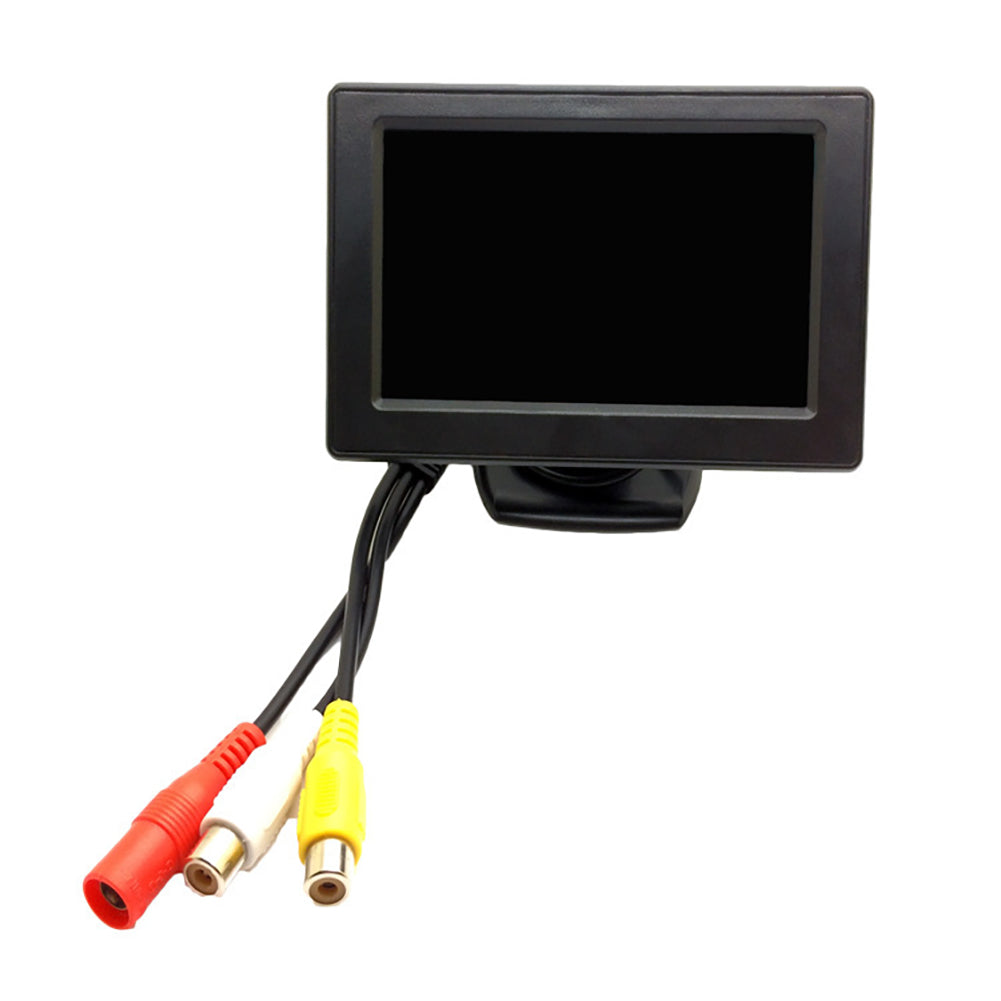

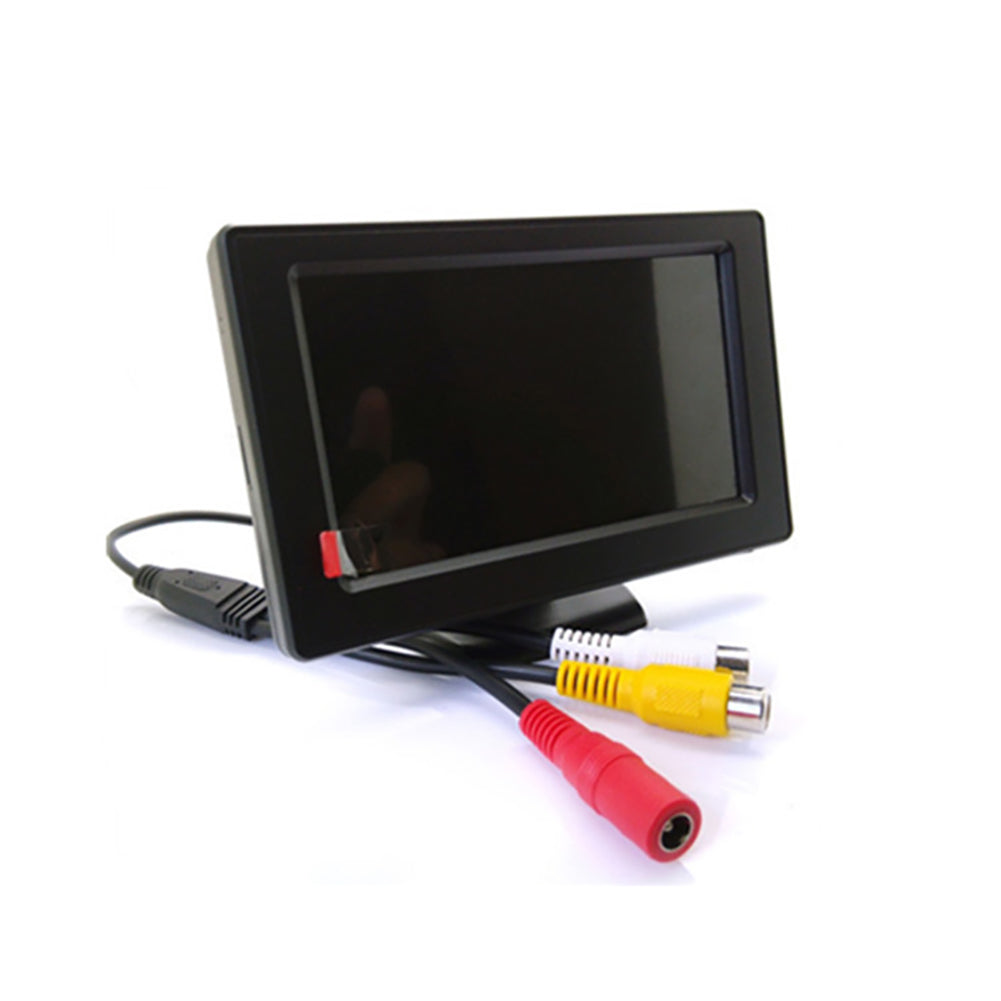

Monitor Feature:
Package Included:

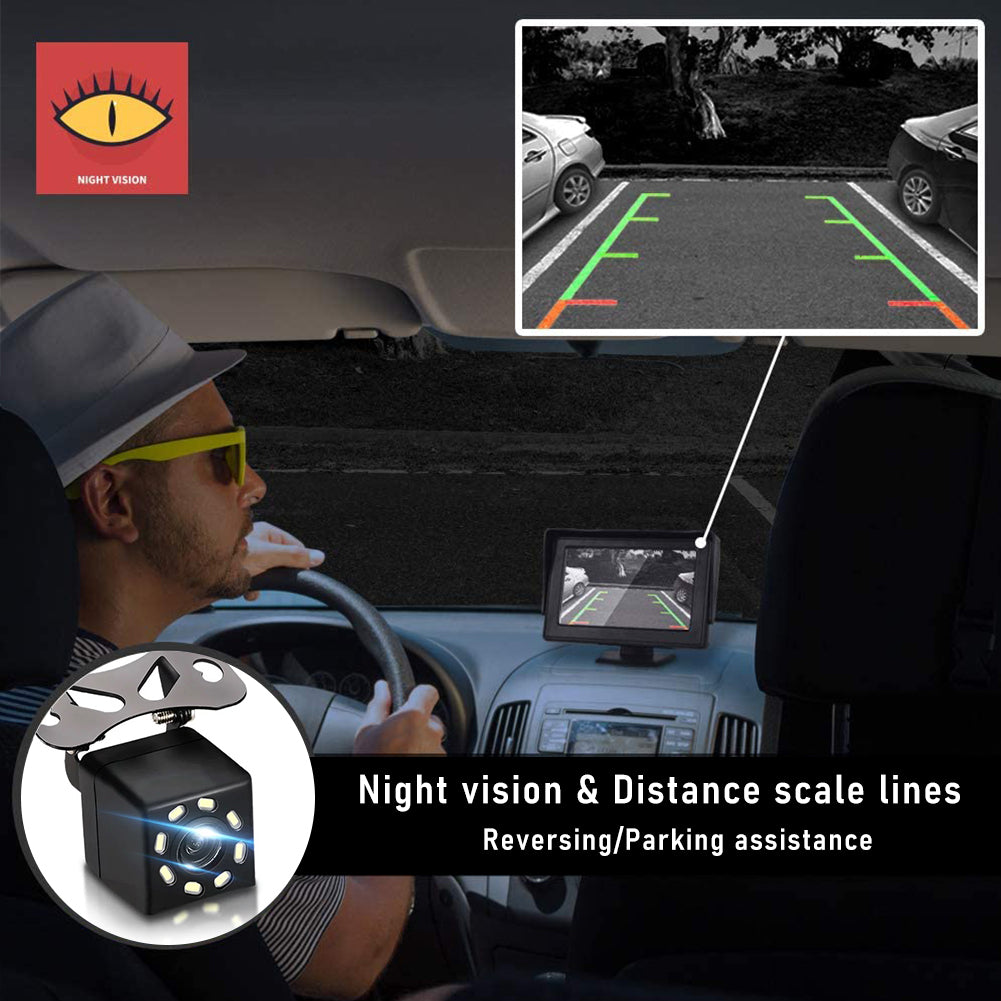

- The backup camera screen kit can provide you with a clear rear view for your driving.
- Full color TFT LCD display, Low power consumption.

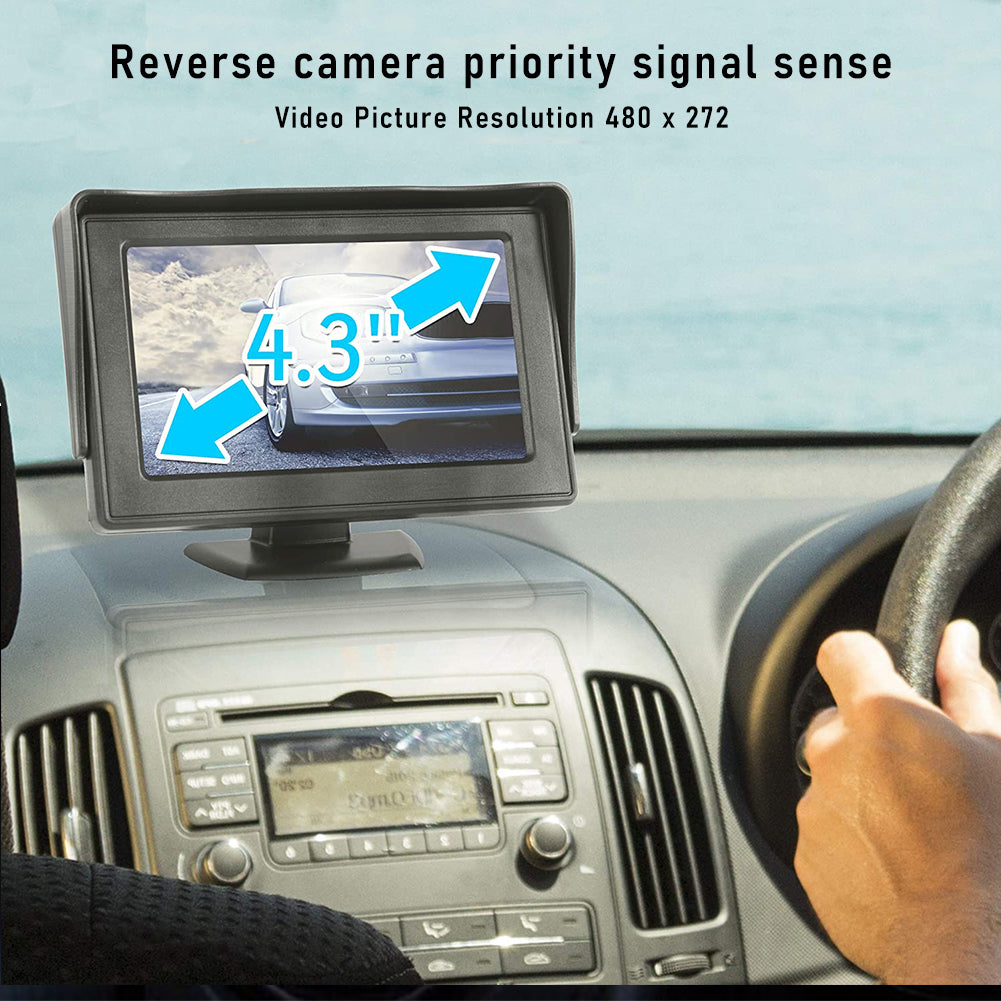

- Parking rearview priority, The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car.
- The monitor will close itself after backing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that.
- Supports Car Camera, DVD, VCD, STB, Satellite receiver, and other video equipments.

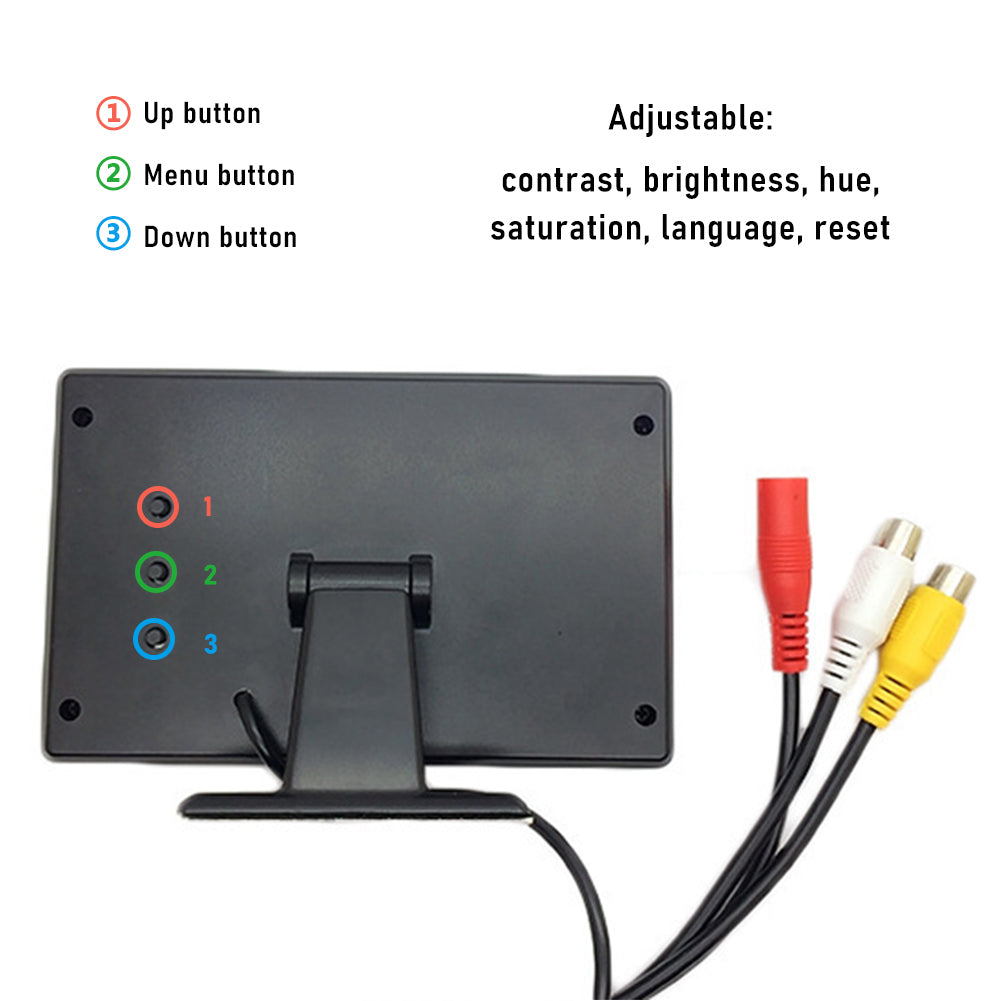

- Designed menu buttons, the brightness/contrast/hue/language is adjustable.

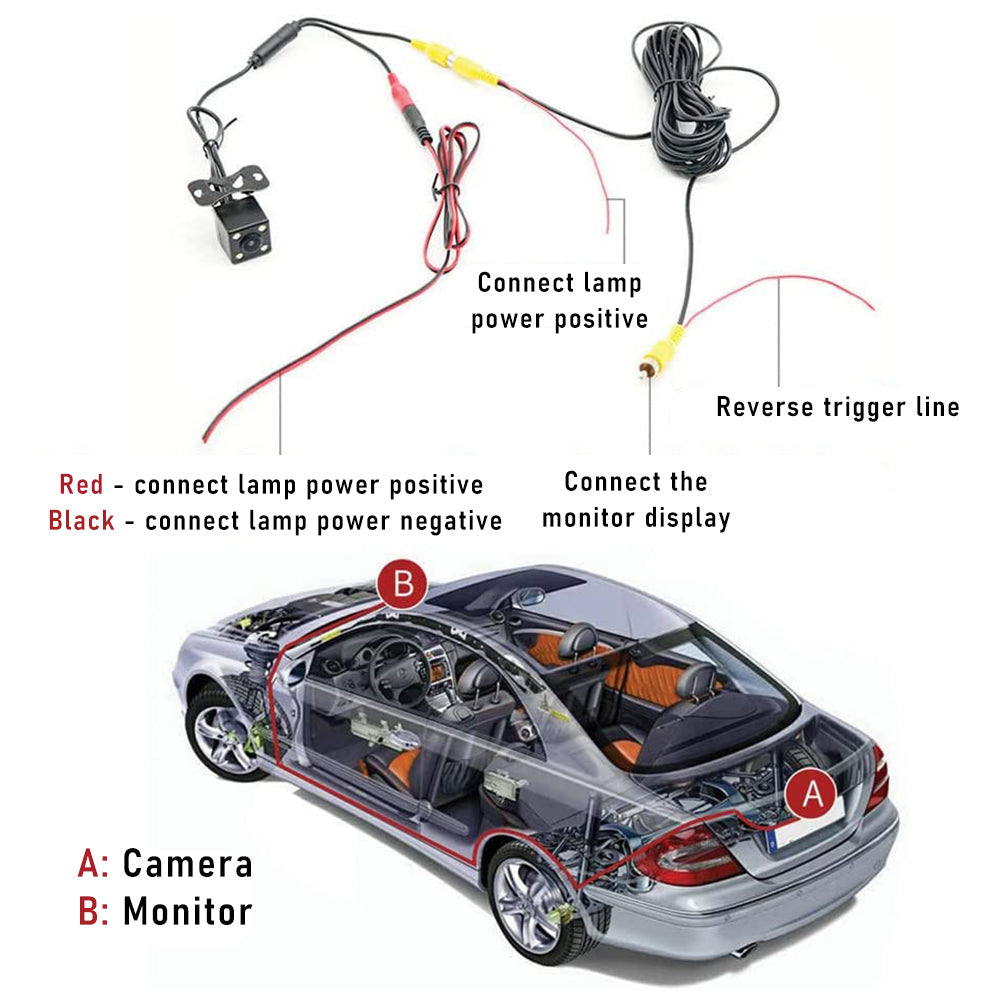

- With 2 road video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD, White video cable is priority signal input, when 2 road has signal input, the machine will prioritize the white end signal.
- No Audio input or output.
Specifications:
- Material: ABS
- Resolution: 480*272
- Aspect Ratio: 4:3
- Power Supply: DC 12V-24V
- Power:2W
- Resolution: 1440(H) x RGB x 272(V)

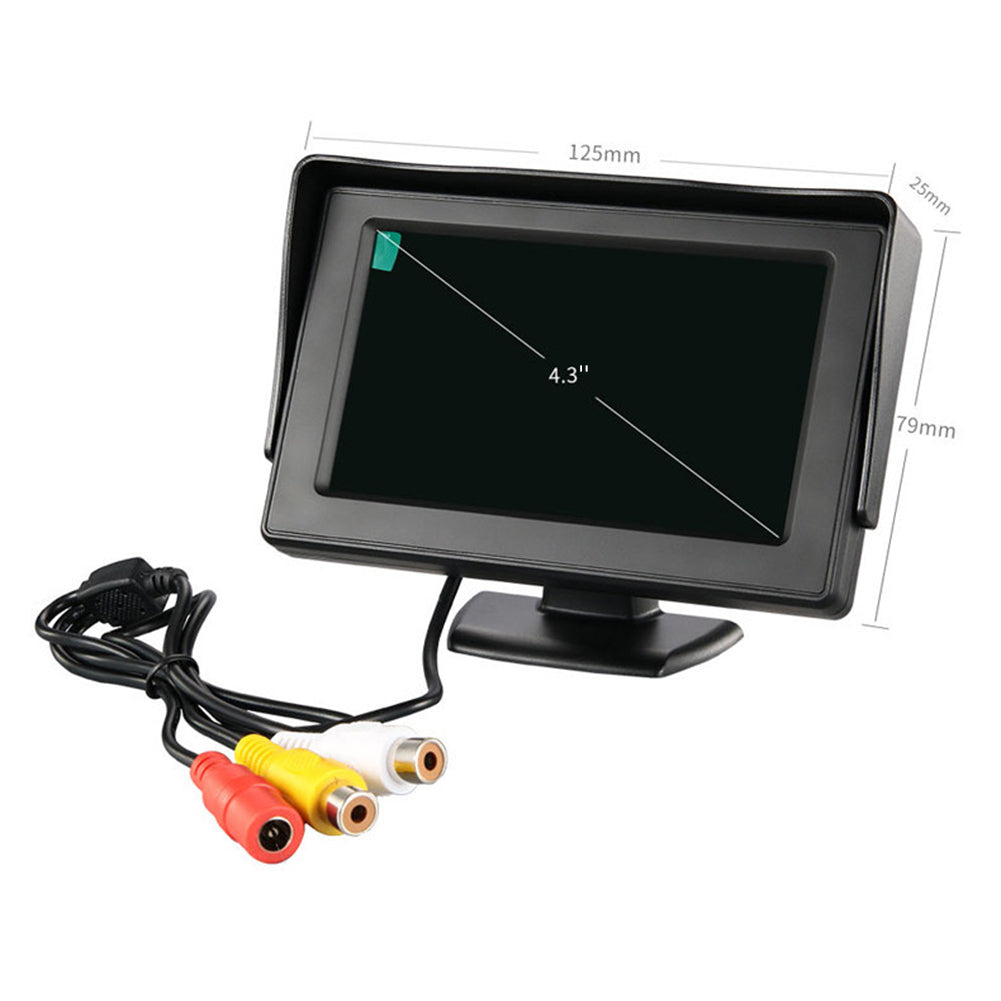

- Screen Size: 4.3 inch(16:9)

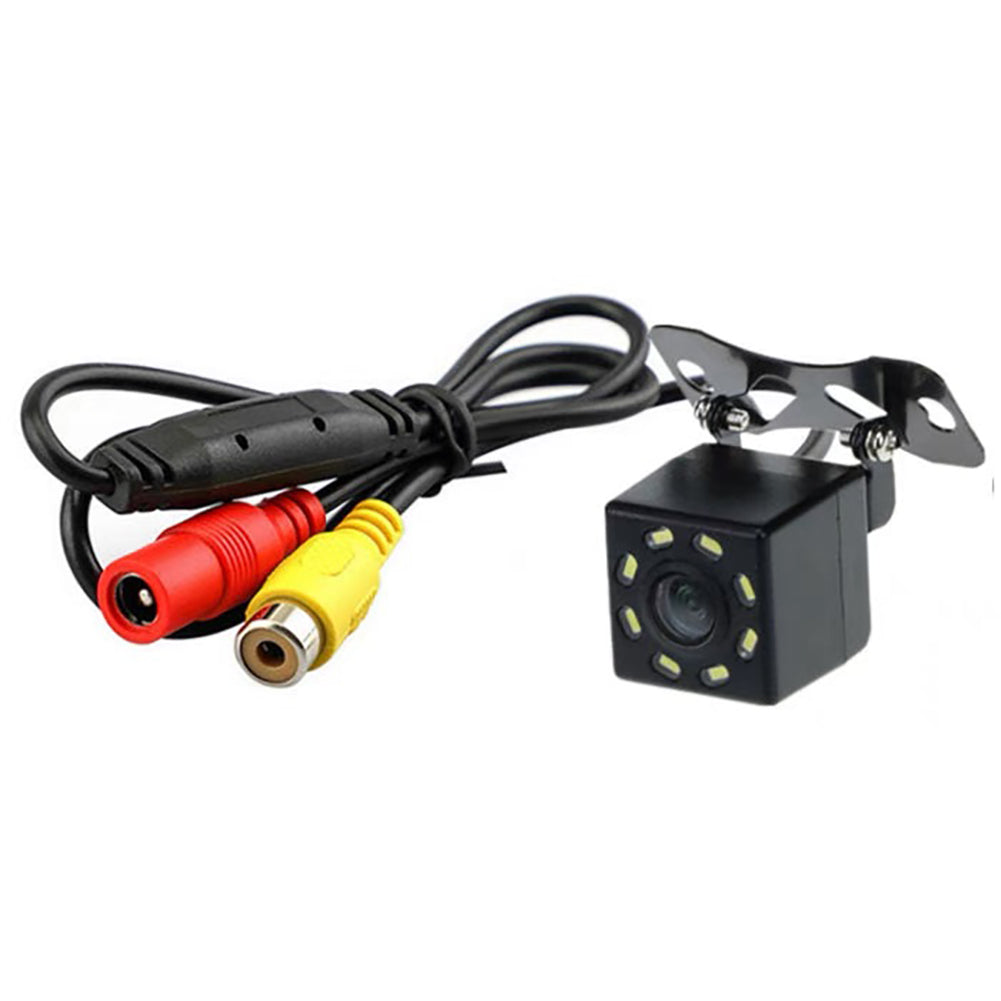

Rear View Feature:

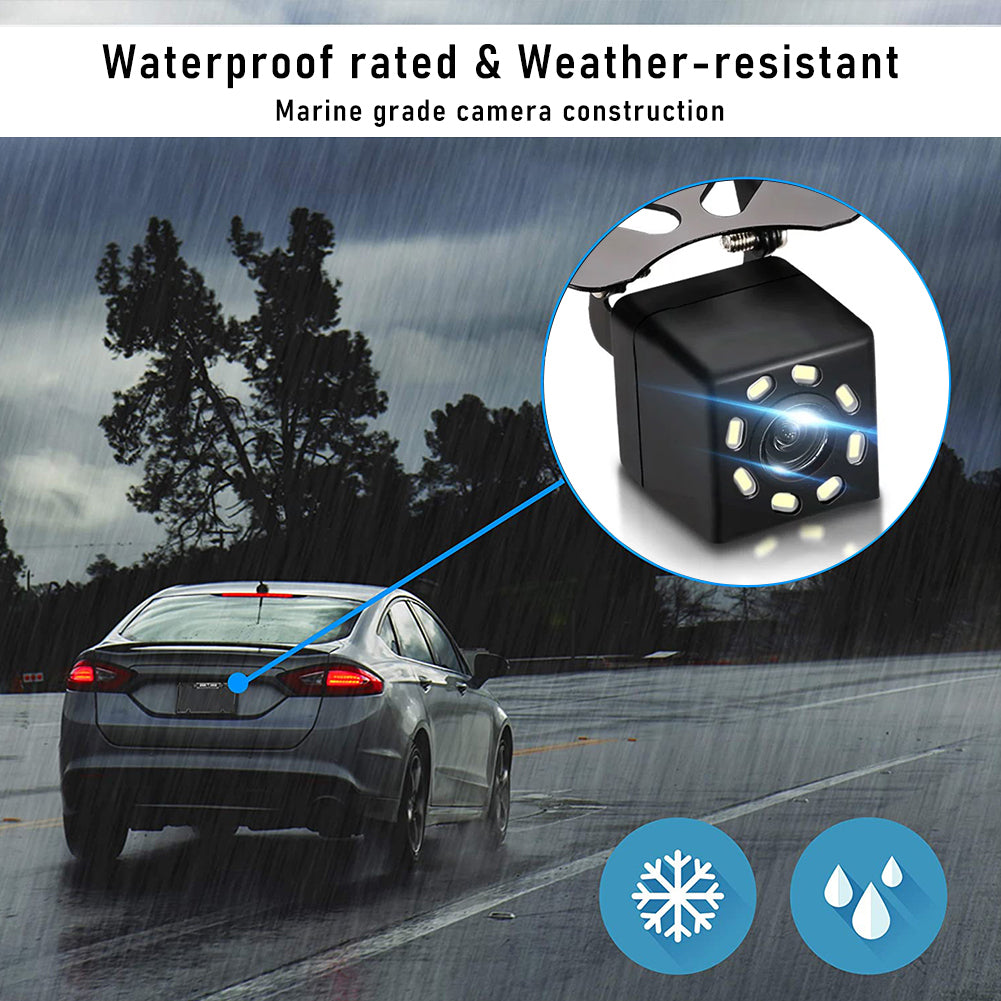

- Waterproof Rear View Night Vision Camera for car.

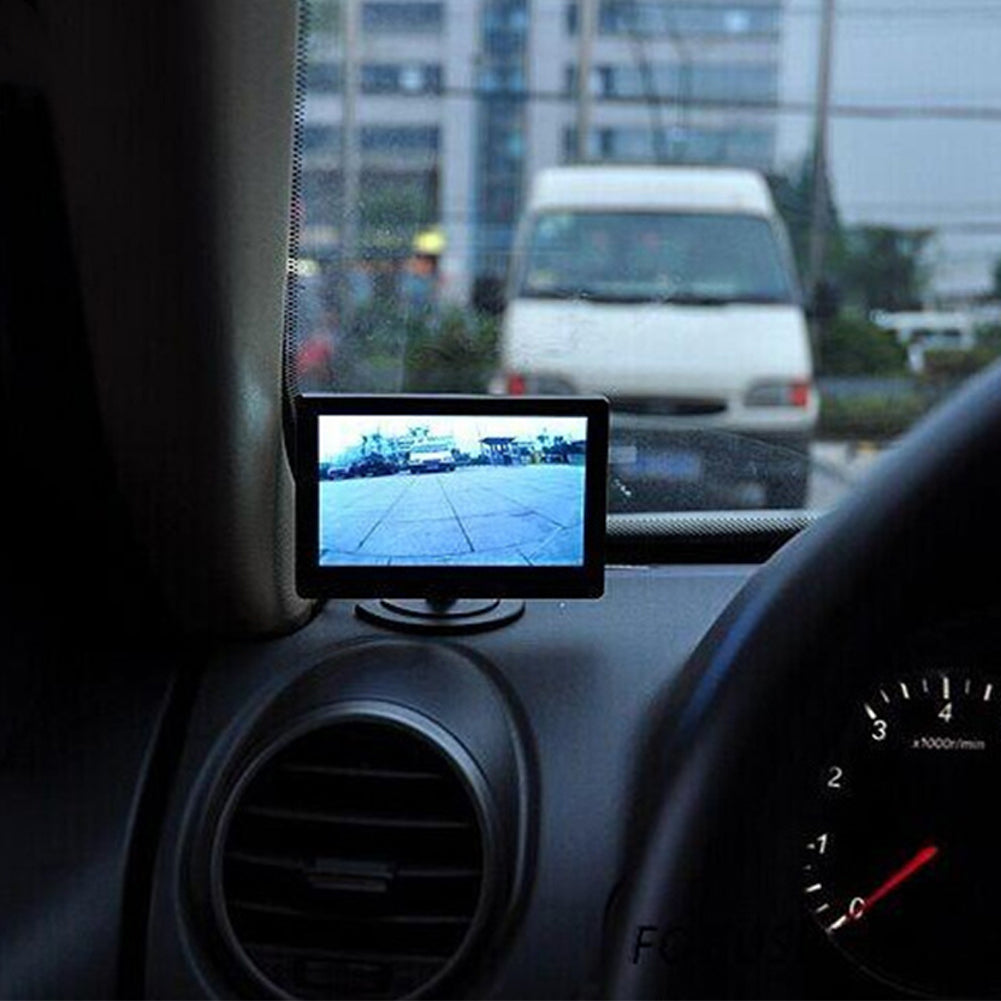

- Used with connected to LCD monitor ,DVD Player, rearview mirror with LCD monitor etc, show the rear view on the LCD screen, make you reverse car more easily and safely.

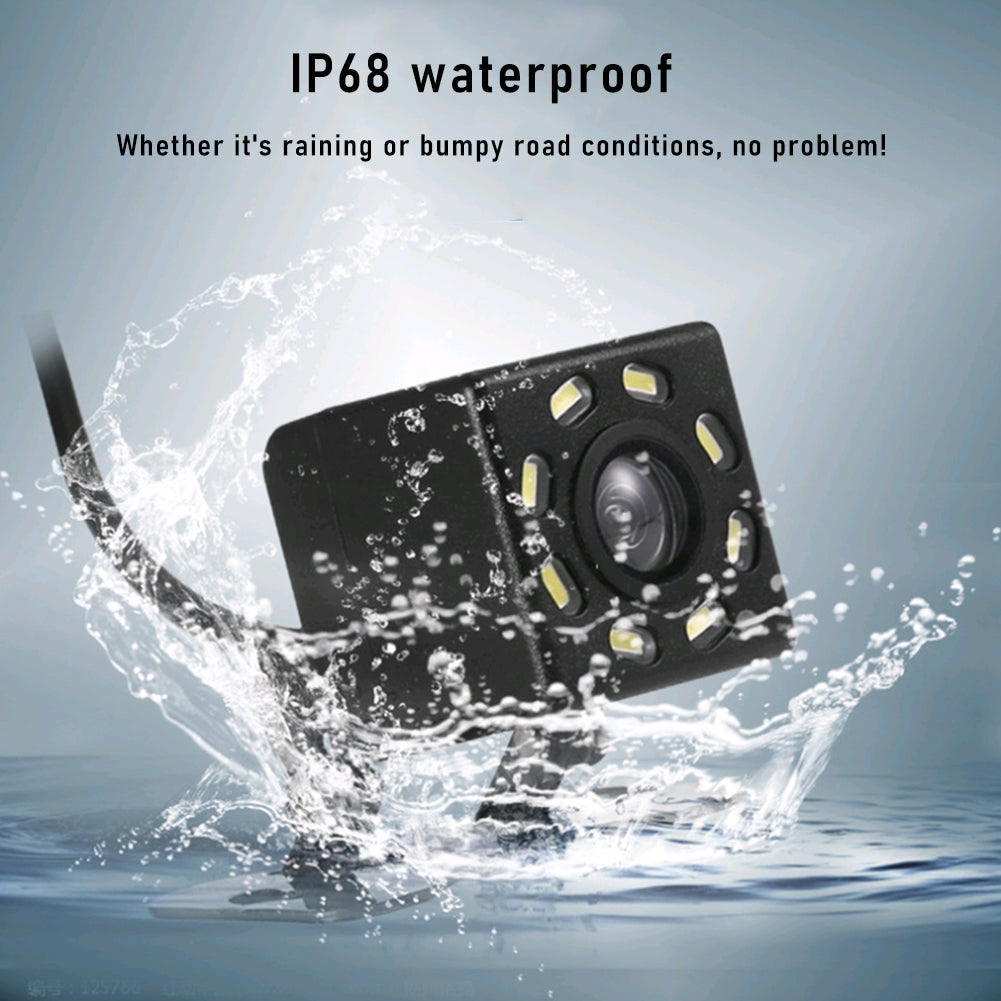

- IP67 waterproof level for outdoor and rainy use.
- Easy to install and use.
Specifications:
- Material: ABS

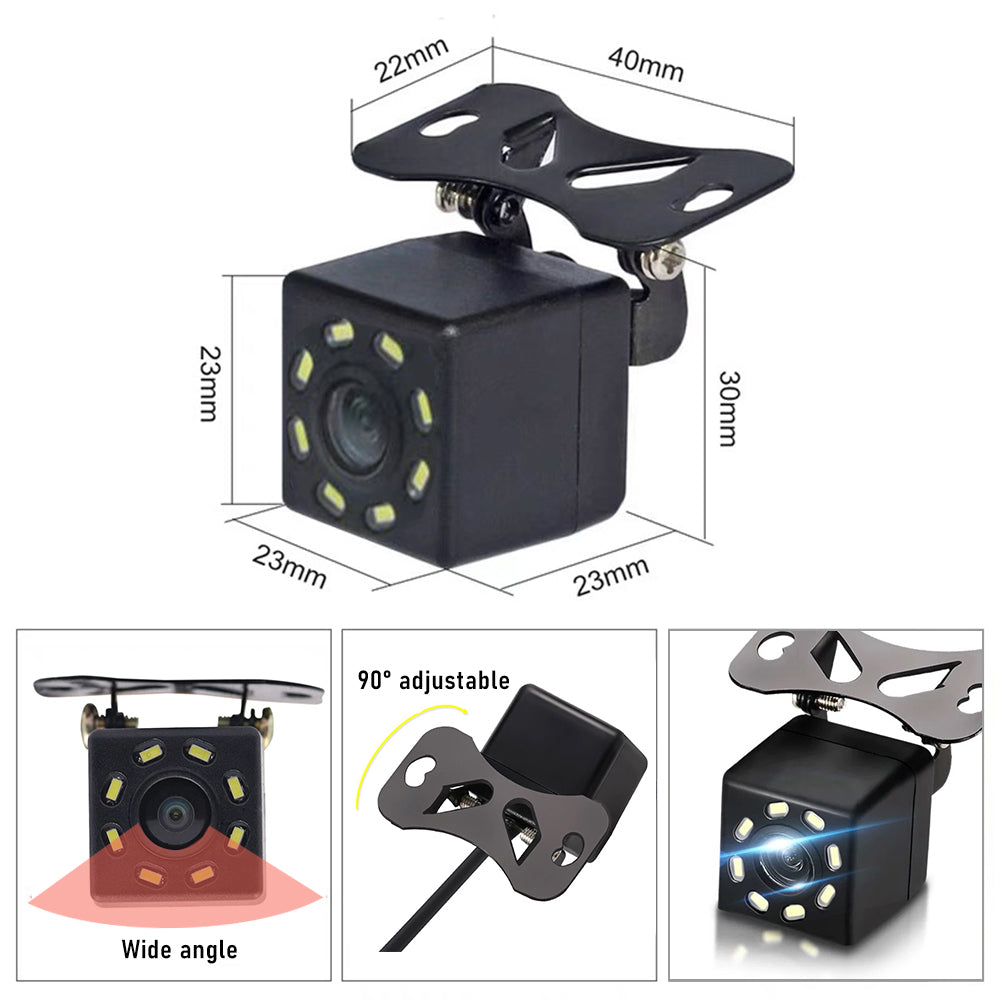

- Reverse camera with wide view angle 120°
- The length from interface to camera: 6M
- Image Sensor: CMOS 7080
- TV system: NTSC
- Horizontal Resolution: 480 TV lines
- Effective pixels: 720(H)×576（V)
- Minimum illumination: 0.1Lux

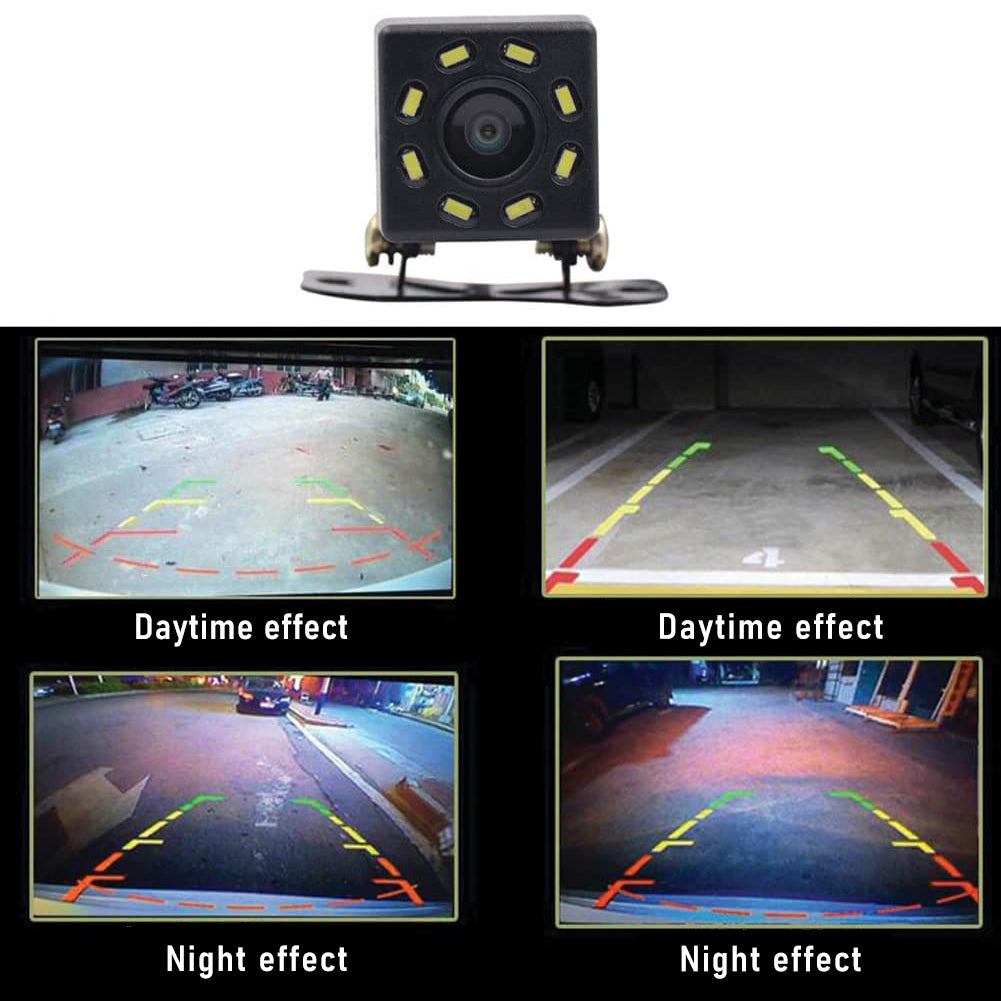

- Night Vision: 5 meters
- Diagonal Viewing Angle: 120 degree
- Synchronization: Internal synchronization
- Signal to noise ratio: >48db
- Working current: 0.1a-03A
- White Balance: Auto
- Power: DC 12V
- Water-proof: IP67
-
Storage temperature: -20°C~70°C RH95% MAX

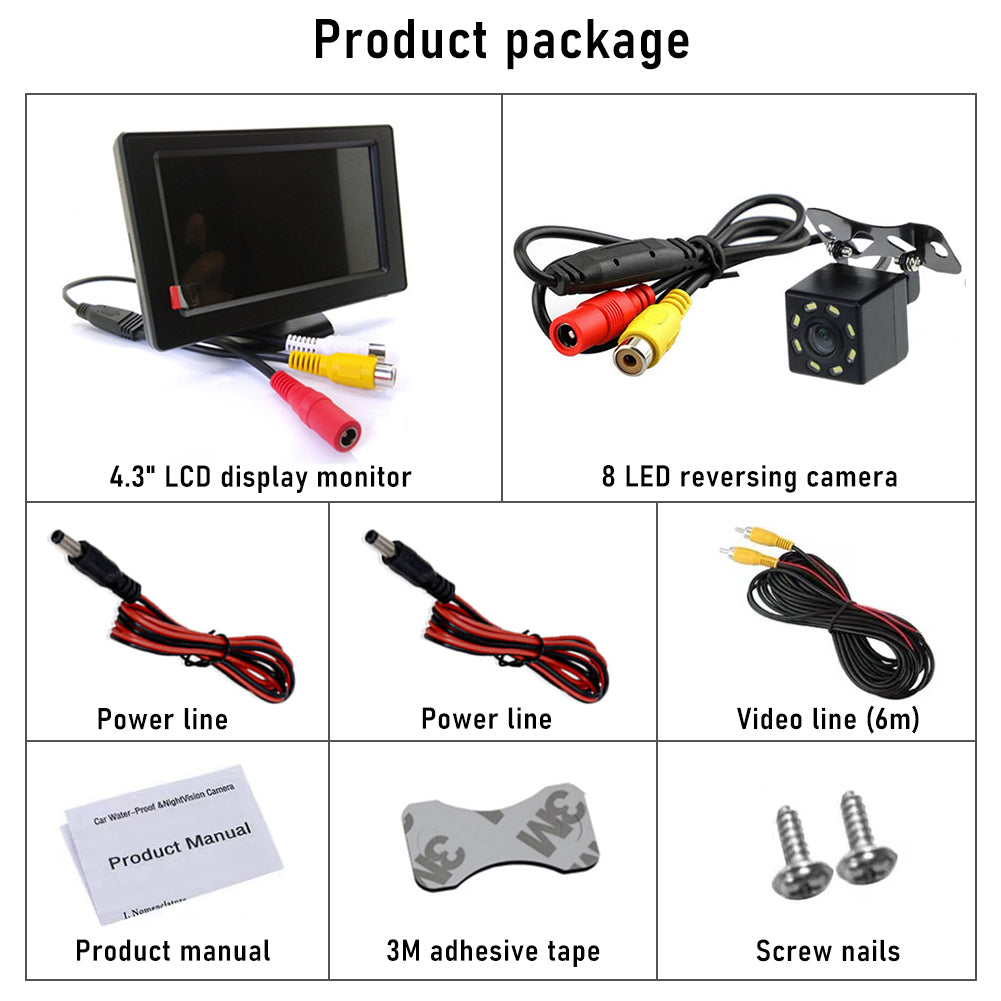

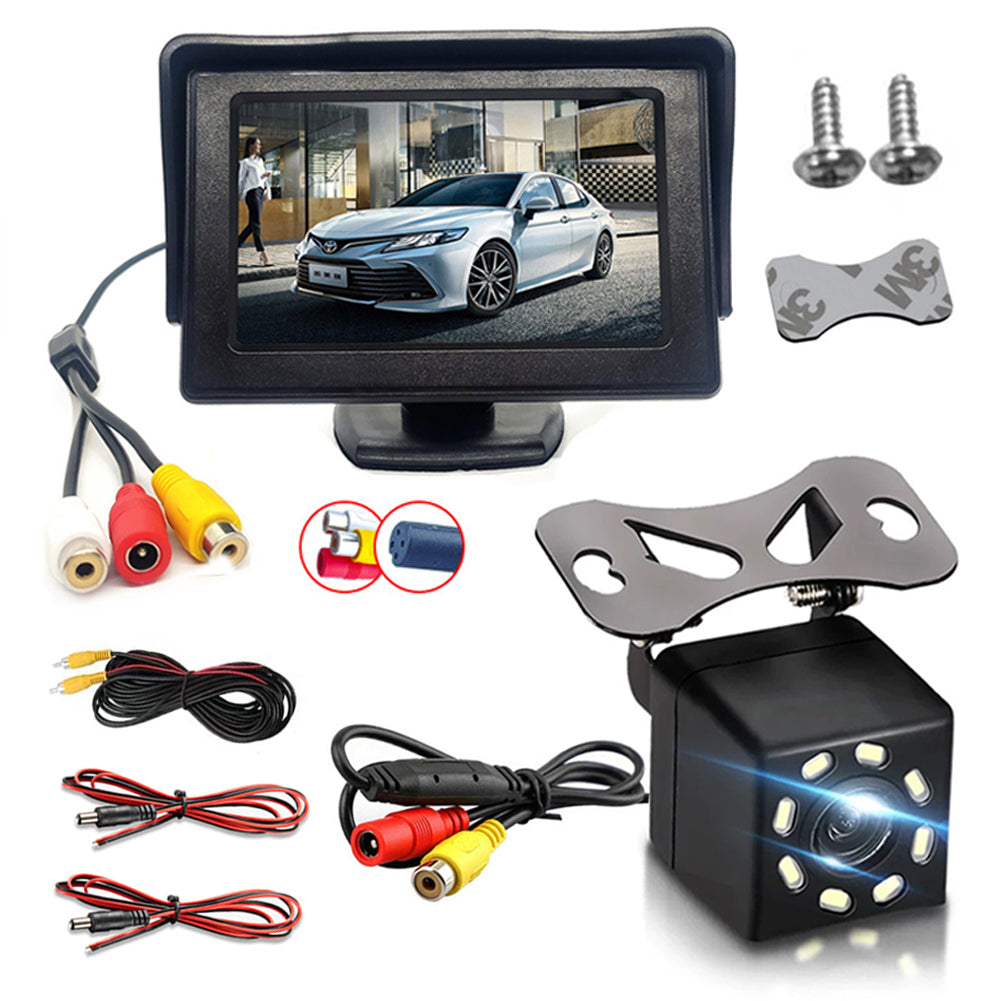

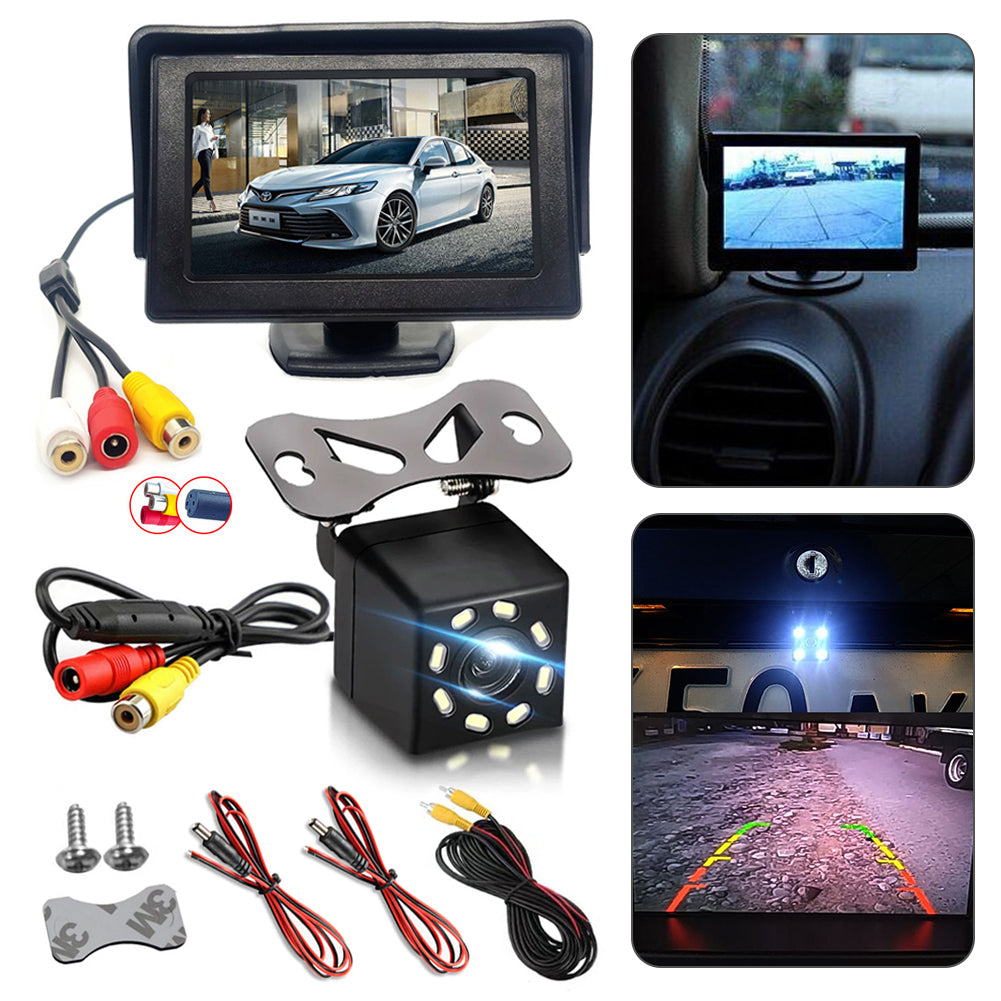

Package Included:
- 1Pc x Rear View Camera LCD Monitor
- 1Pc x Rear View Reverse
- 1Pc x Video cable (6 meters)
- 1Pc x Power cable
- 1Pc x 3M adhesive tape
- 2Pcs x Screws
- 1Pc x Manual
- Please allow 1-3cm differences due to manual measurement.
- Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!
