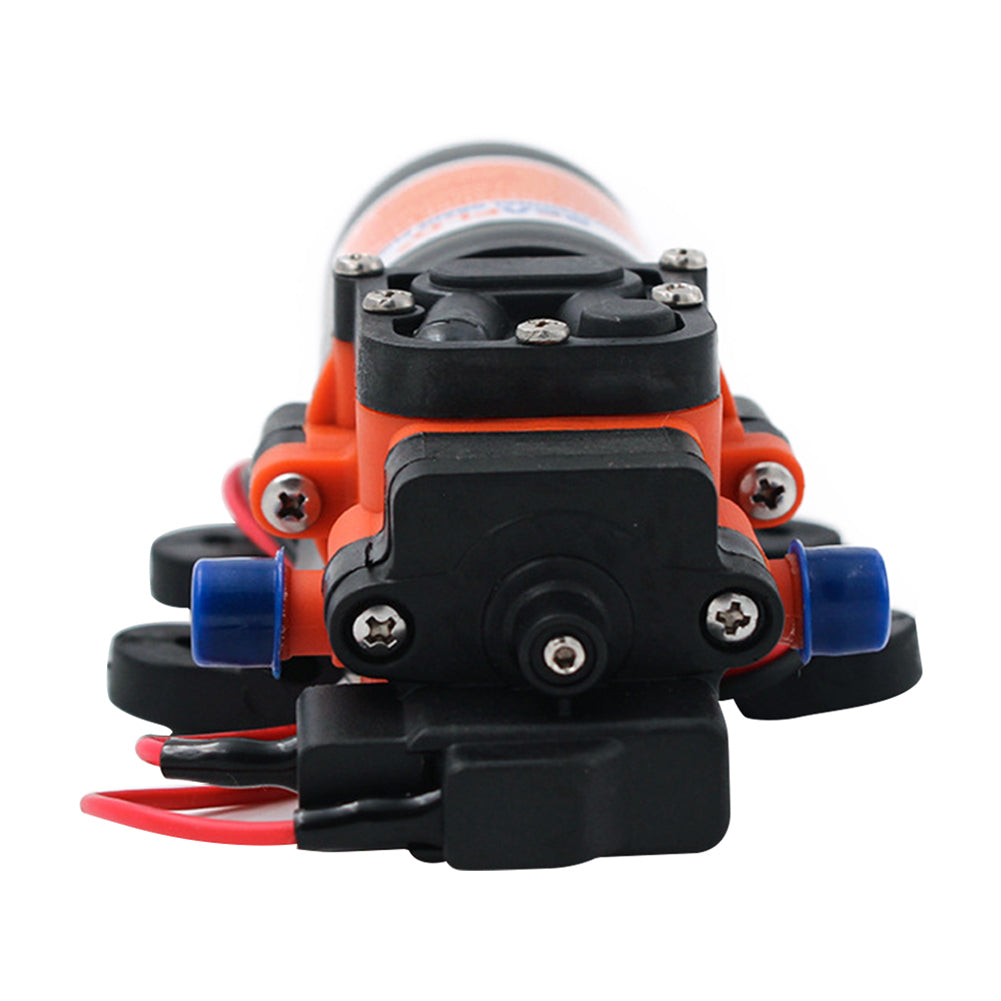

Main Features:

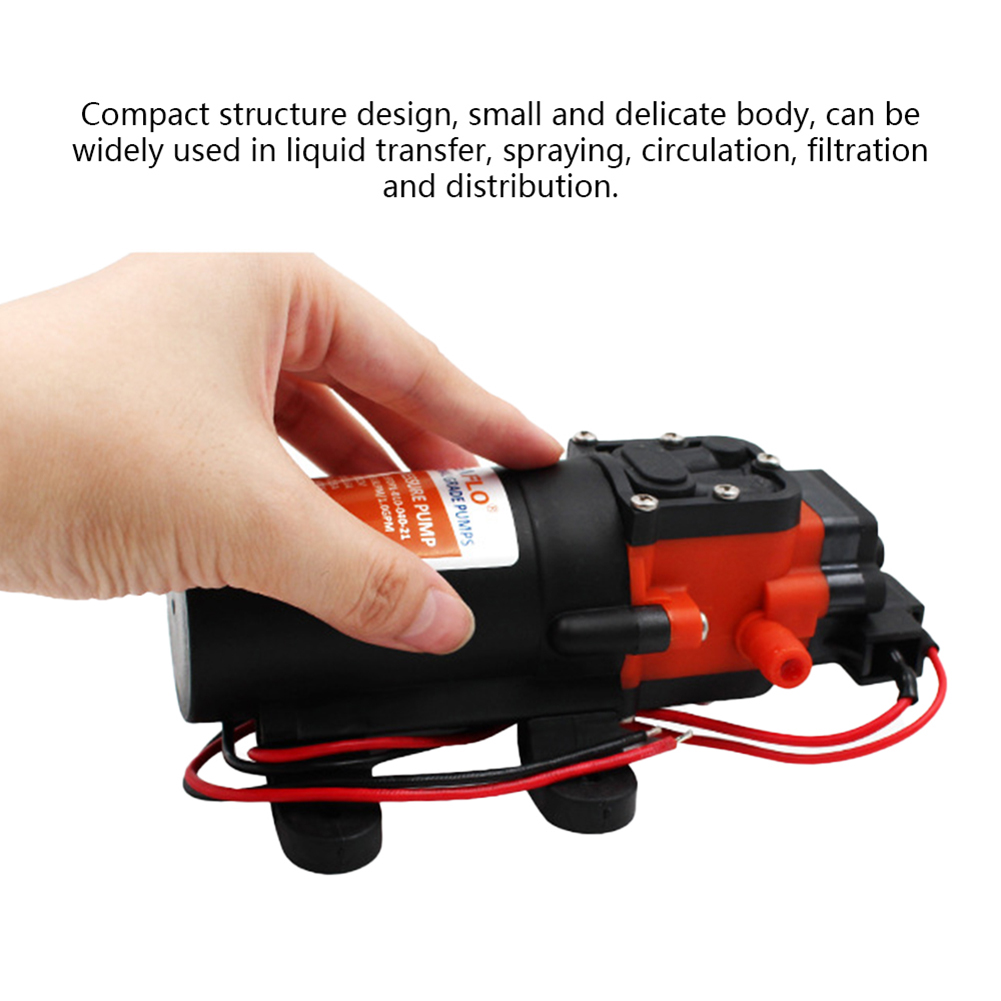

- The diaphragm pump has a compact structural design and a small and delicate body, which can be widely used in liquid transfer, spraying, circulation, filtration, and distribution.
- Equipped with self suction and pressure boosting functions, capable of short-term dry operation.
- This diaphragm pump with a fully automatic pressure switch can automatically start when the faucet is turned on,pump automatically stops working when the faucet is turned off.
- On-demand, automatic water pump for small boats, campers, and vans
- Built-in 40 PSI pressure switch for automatic stop/start
- Self-priming--allows it to be mounted above tank; able to run dry
- Built-in thermal protector; 3/8-inch hose barb ports
- 1.0 Gallons per minute (3.8 Litres per minute)
- Compact design,Heavy-duty demand switch,can run dry.
- Applications :Marine/RV,Water Treatment/Ro,Beverage/Food Service,Distillation Equipment,Agricultural Spraying,General Industrial.

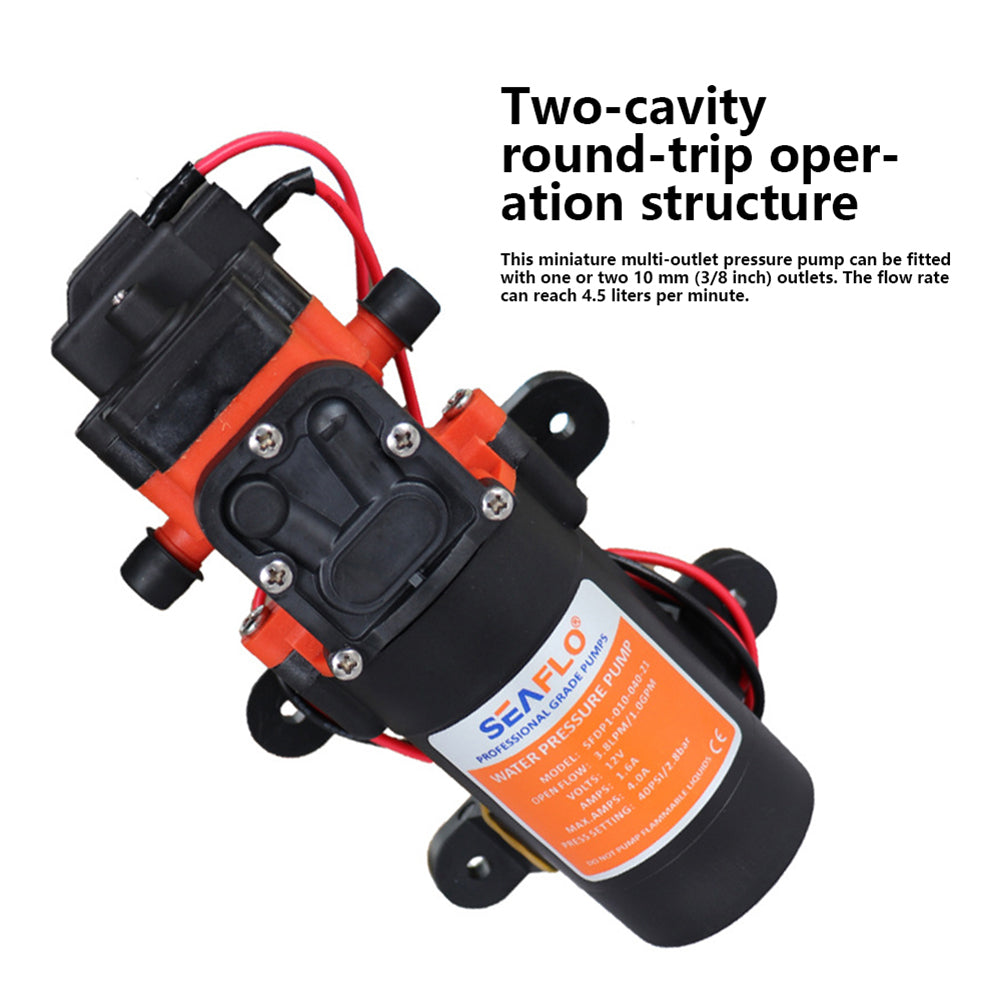

- 2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry.
Specifications:

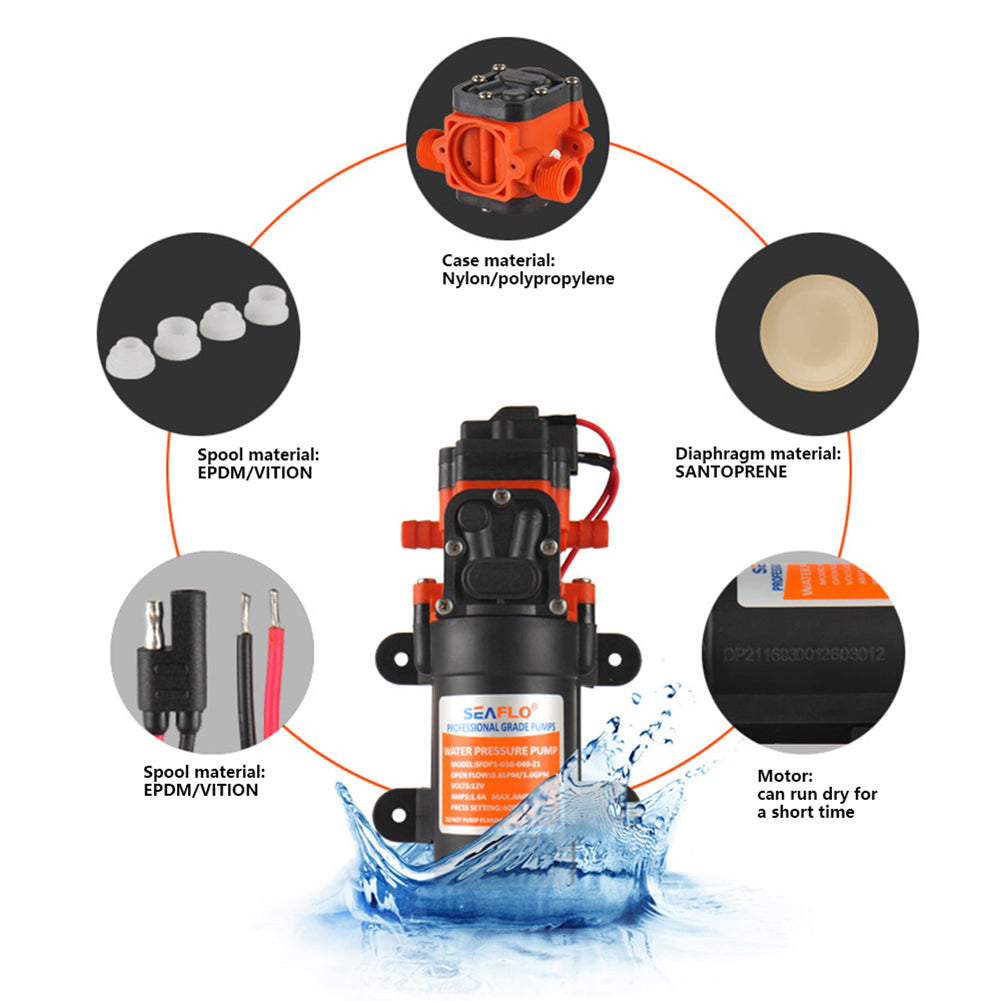

- Material:Engineering Plastic
- Color:Black

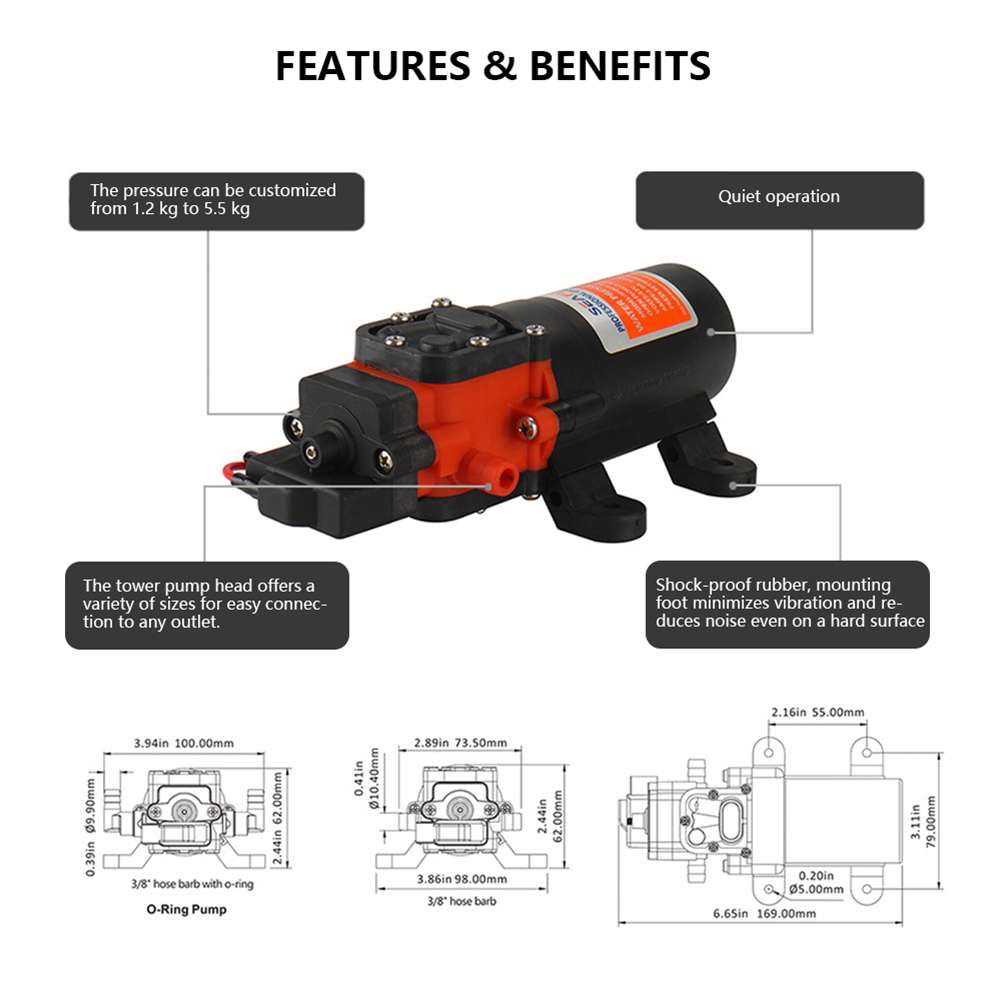

- Size:169mm/6.65inchx79mm/3.07inch
- Voltage: 12v
- Max Recommended Temperature: 110 Fahrenheit (43 Celsius) Max.
- Priming Capabilities: 4 feet (1.2 m) suction lift
- Max Pressure: 40PSI (2.8bar)
- Inlet/Outlet Ports: 3/8" hose barb
- Weight: 1.25 lbs (0.57 kg)
- Intermittent Leads: 18 AWG, 13.78" long with 2-Pin connector/Leads
Package Includes:
- 1Pc x Water Pressure Diaphragm Pump
Note:
- Please allow 1-3cm differences due to manual measurement.
- Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!
No Retail Box,Packing Safely in Bubble Bag.
