Main Features:

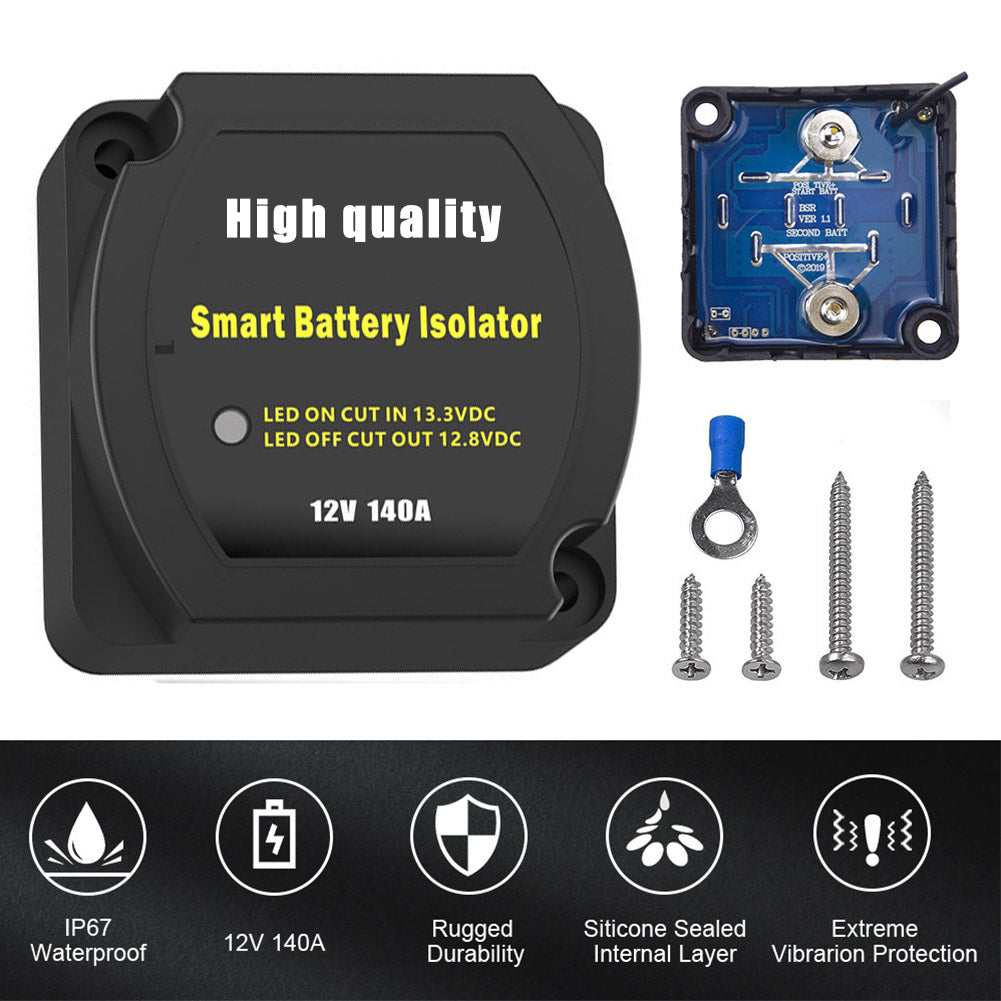

- Strong waterproof, low loss, good heat dissipation, high efficiency.
- A Voltage Sensitive Relay (VSR) allows two batteries to be charged simultaneously. When the engine starts and the starter battery reaches 13.3 volts, the VSR kicks in, allowing two battery packs (starter and residential) to be charged simultaneously.
- When the voltage drops below 12.8 volts (such as when the engine is stopped), the VSR disengages and the battery disengages. The system eliminates the possibility of depleted starting batteries and protects sensitive electronics powered by household batteries from harmful engine starting spikes..

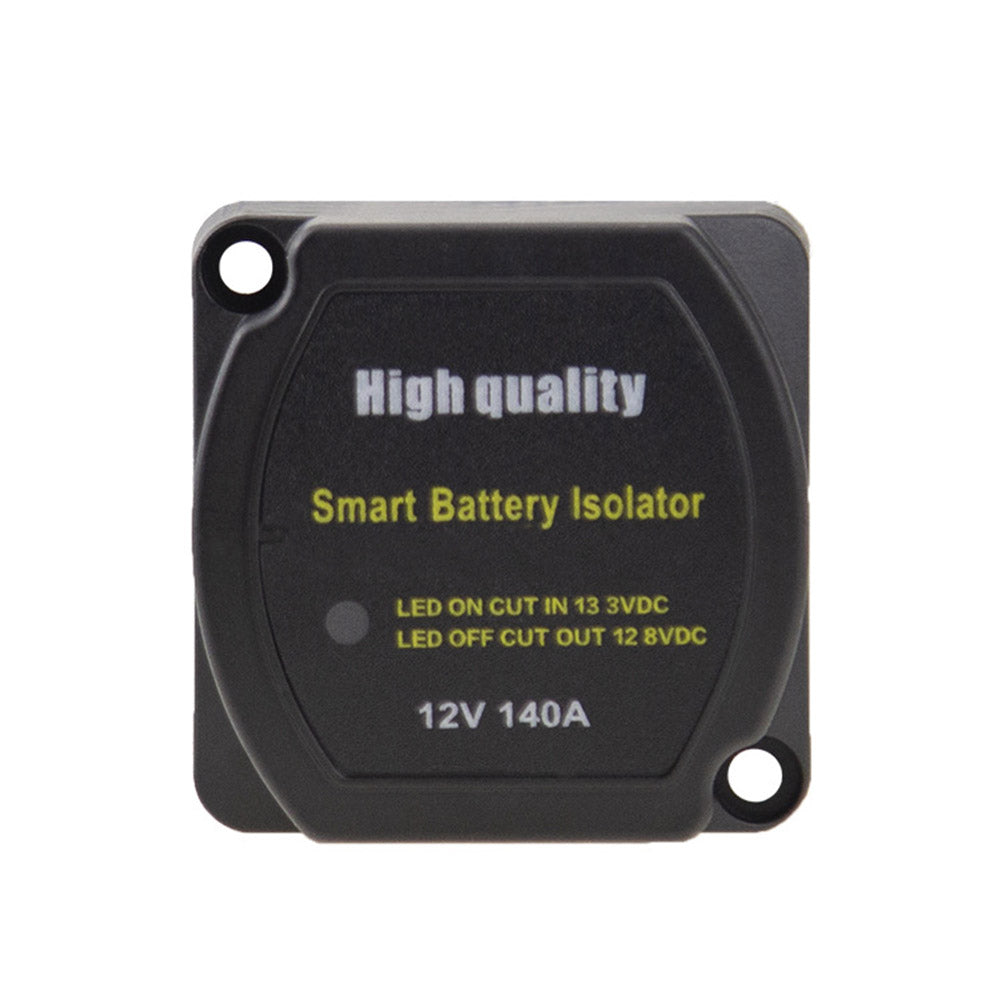

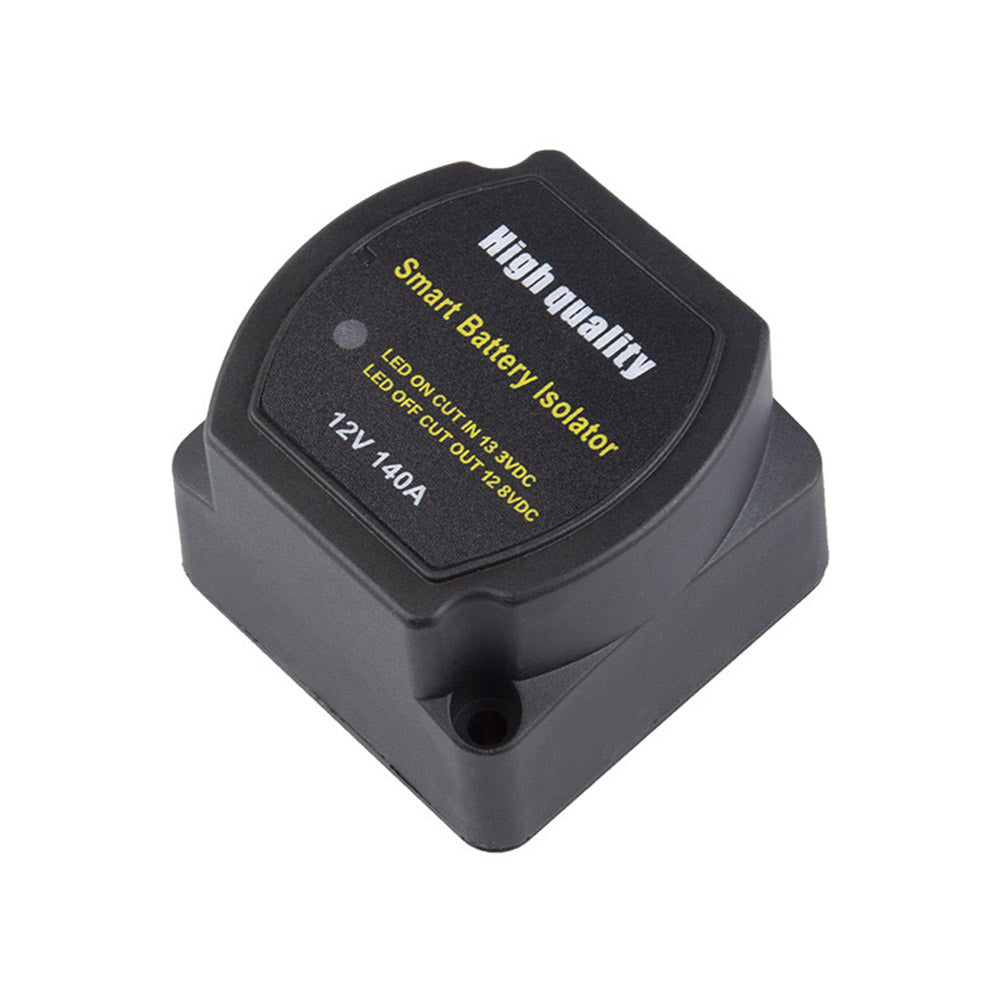

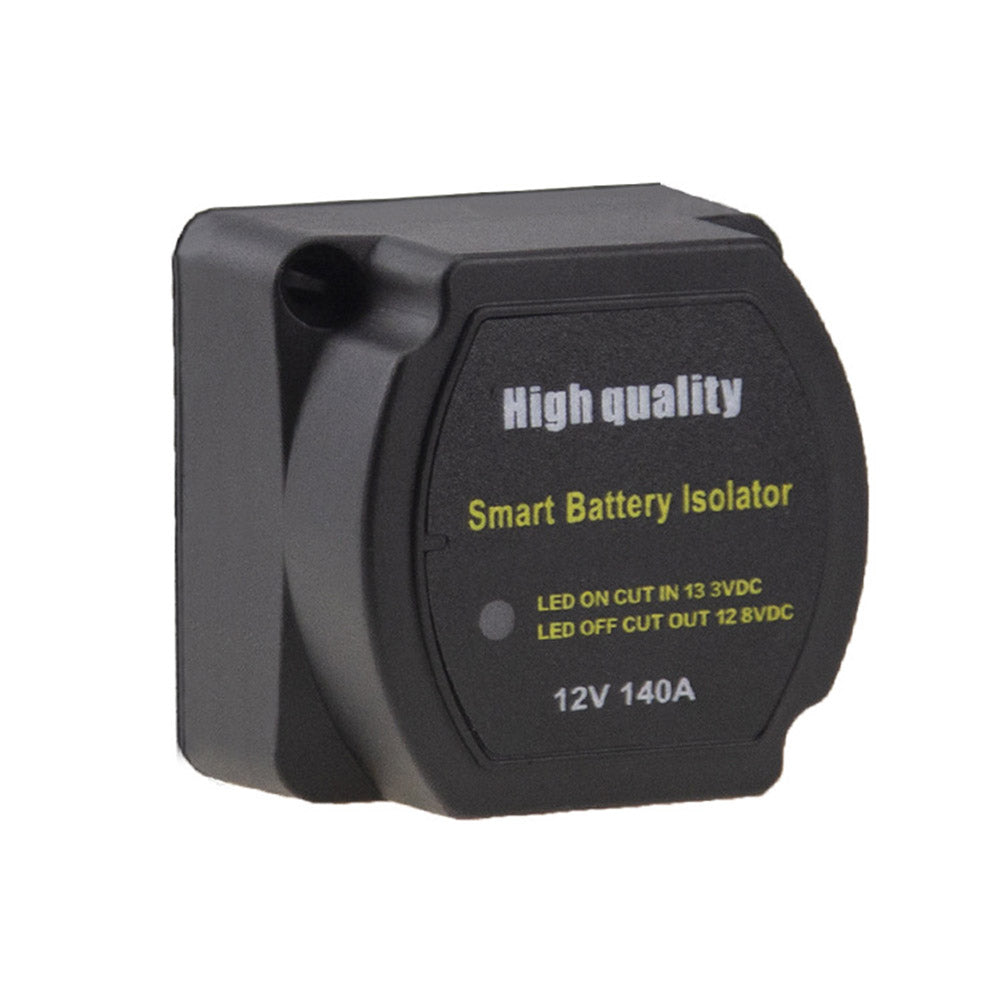

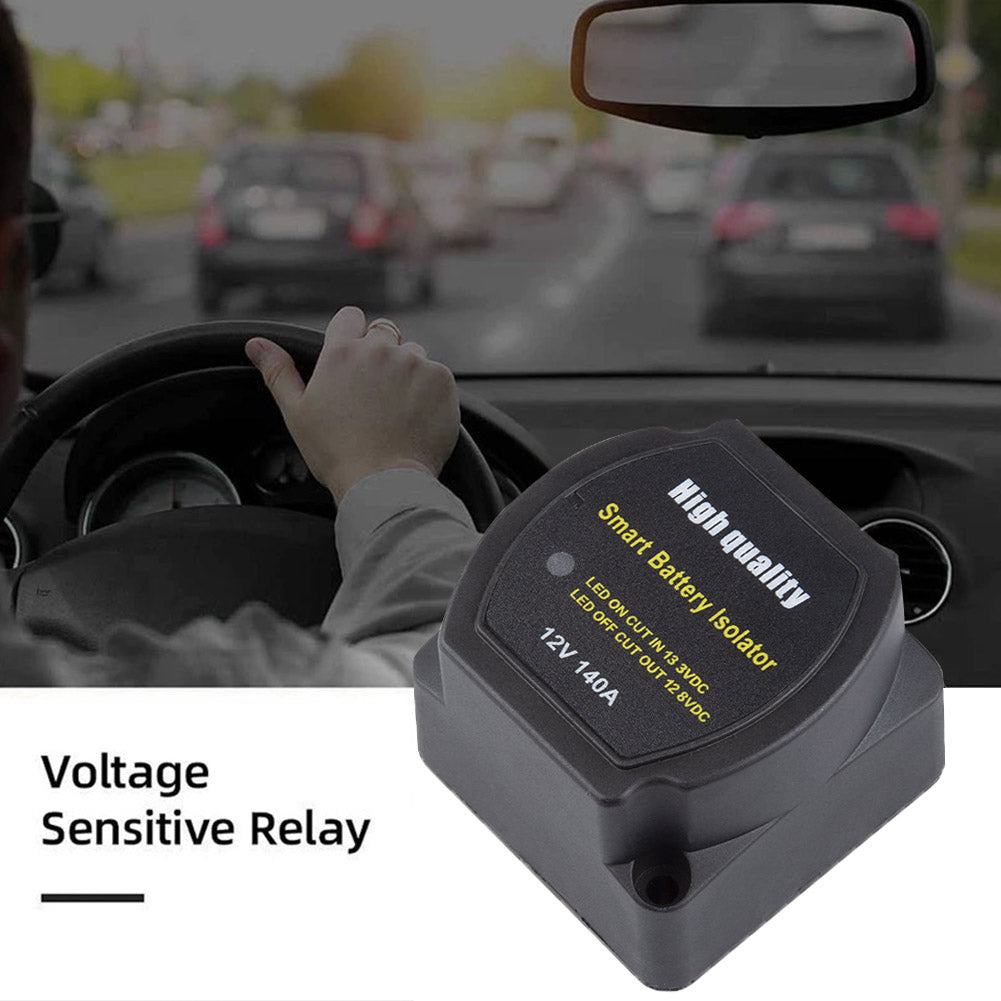

- Voltage Sensitive Relay 12V 140A Red LED Indicator. Allows split charging of the second battery pack without discharging the main/starting battery. The relay turns on at 13.3 volts and turns off at 12.8 volts.

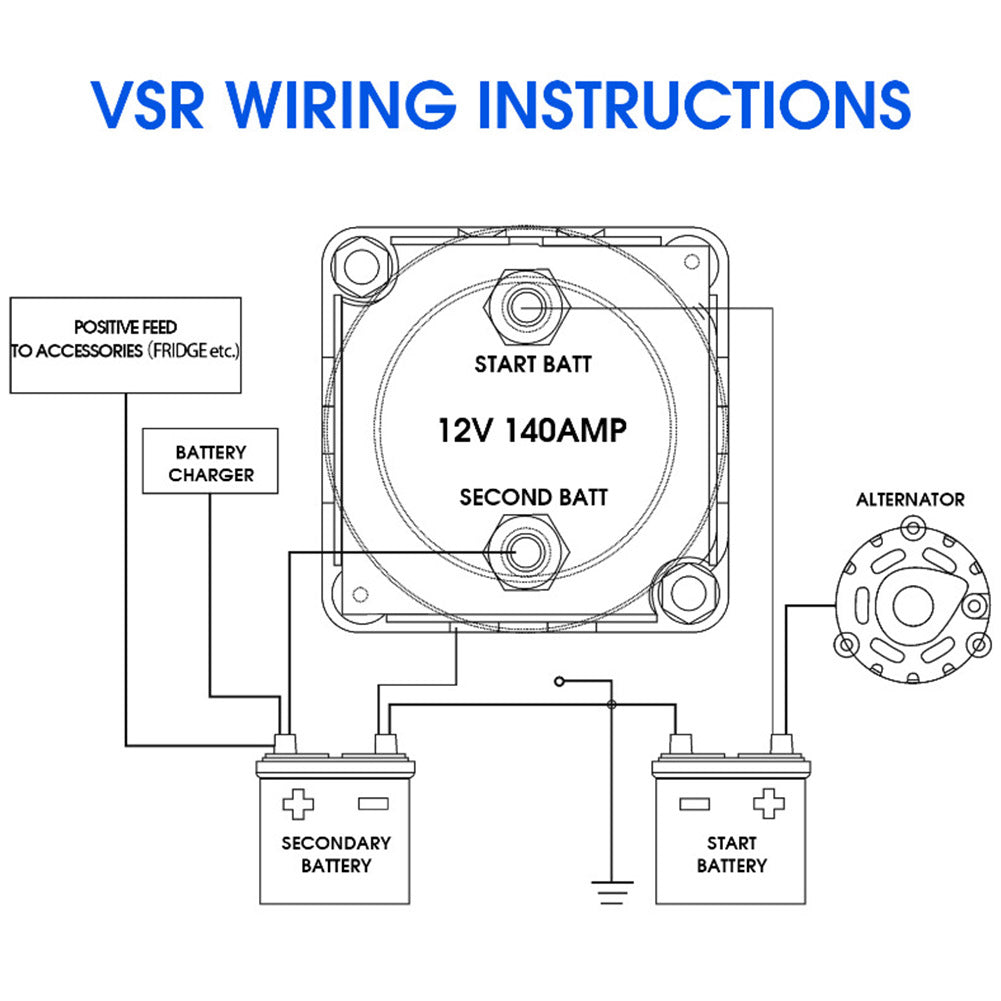

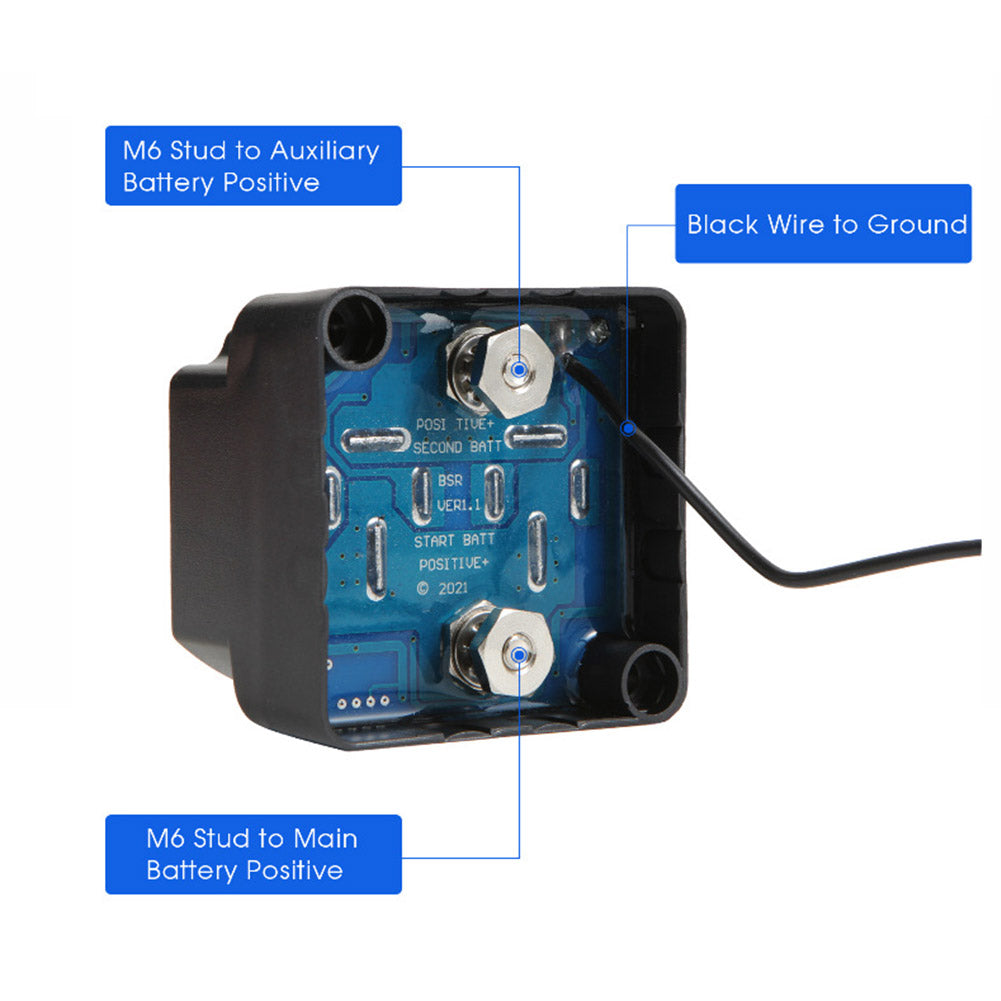

- Advantages of installing VSR compared to traditional charge (diode isolator). Easy 3-wire connection at the battery. No need to bypass existing alternator wiring. VSR has no voltage drop. Conventional diode isolators produce a voltage drop of at least 0.6 volts. Compact size - no need for large heat sinks Cost-effective solution Premium product.
Specification:
- Material:ABS+Metal
- Color:Black

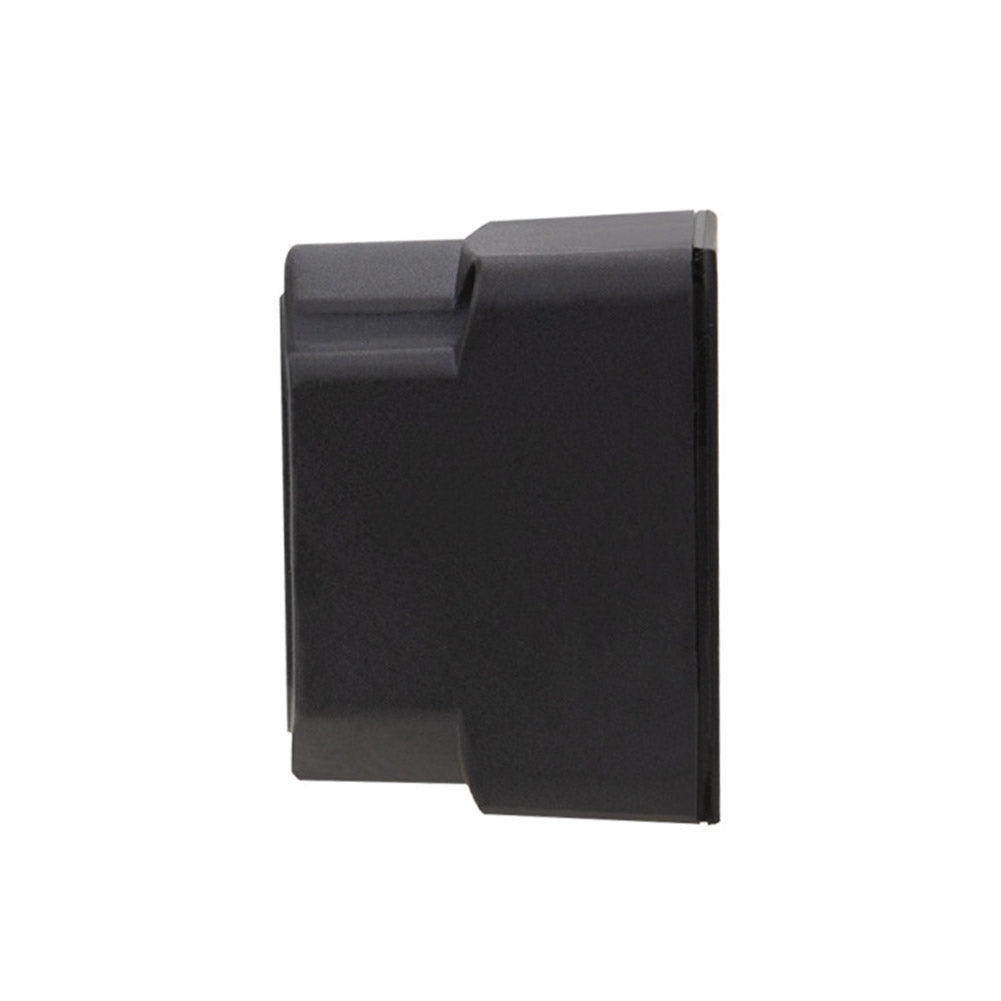

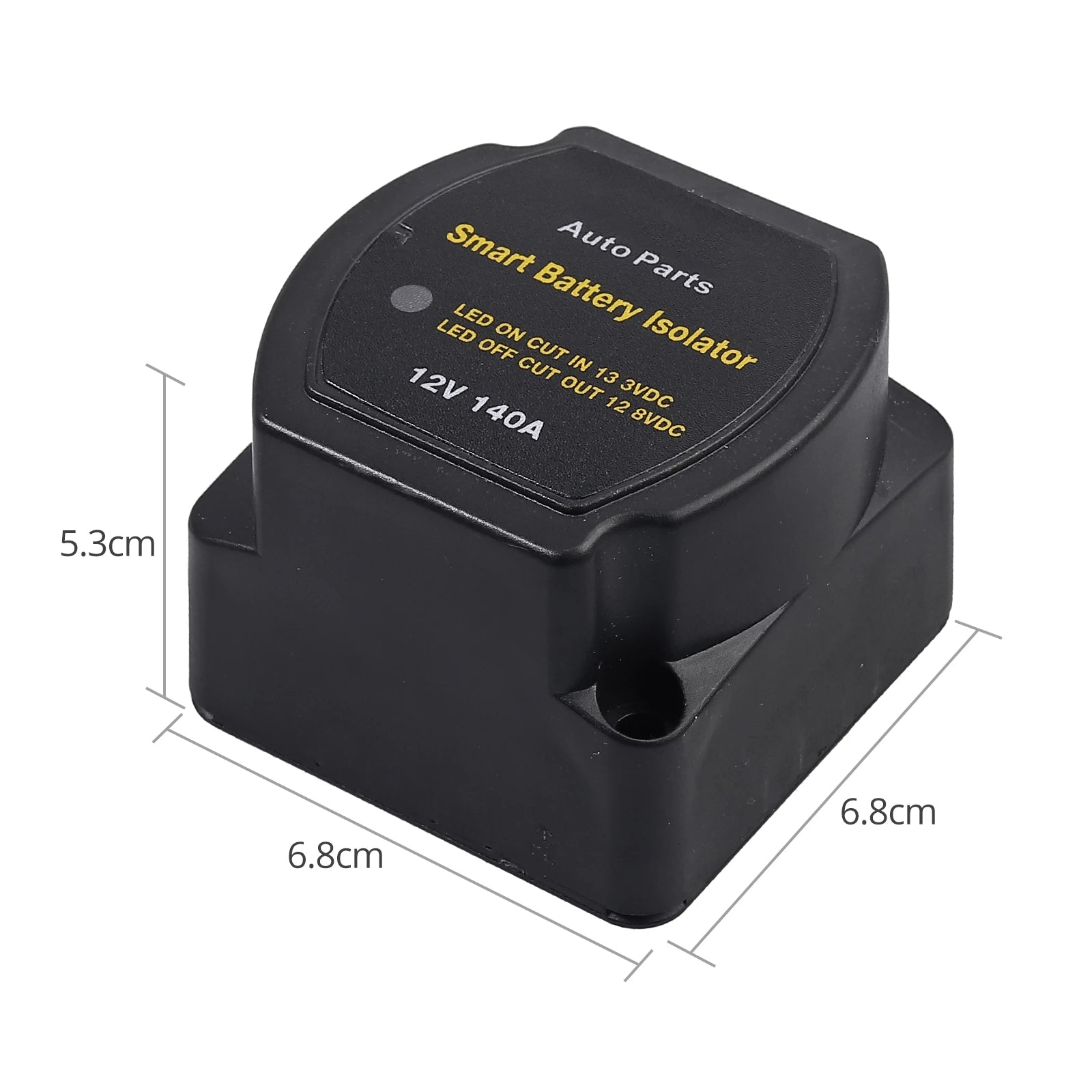

- Size:6.8x6.8x5.3cm
- Continuous current: 80-100A
- Instantaneous current: 125A
- Current consumption - charging: 240mA
- Current Consumption - Standby: 8mA
- Breakaway Delay: 5-10 seconds
- Recommended fuse: 80Amp
Package Included:

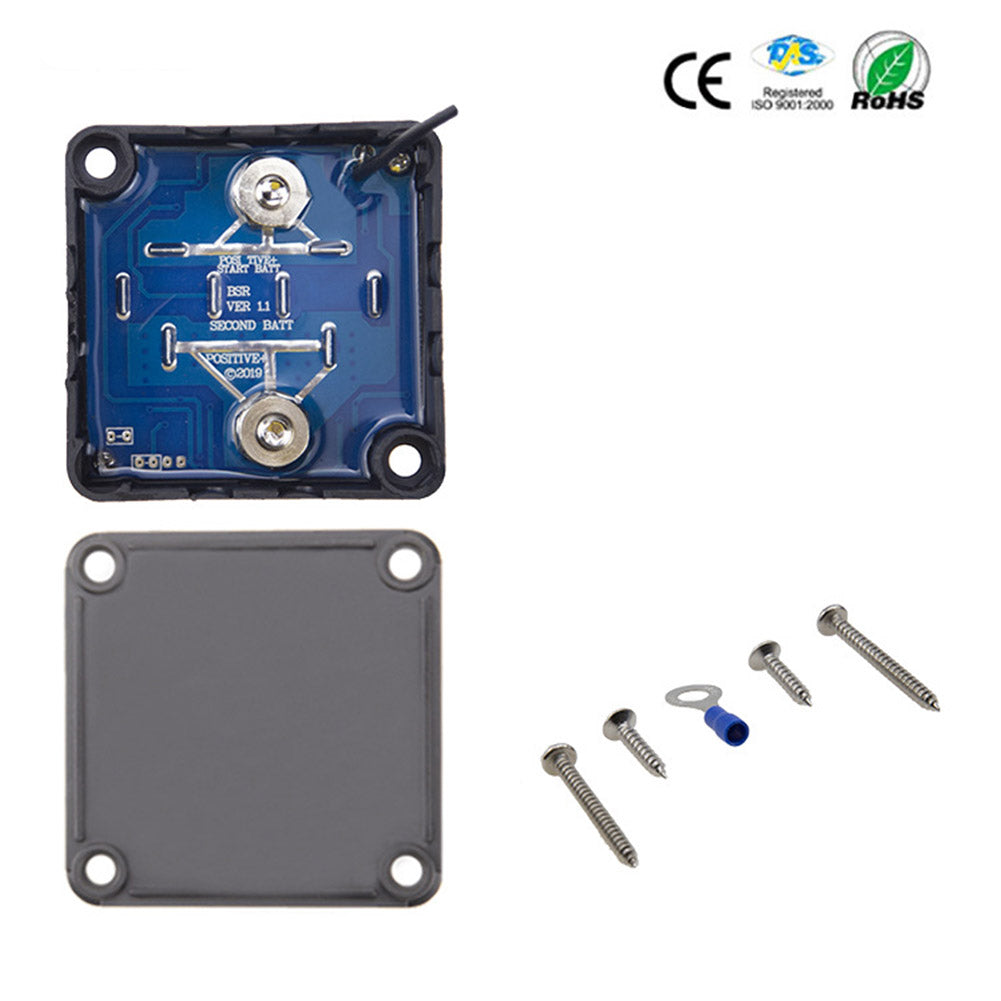

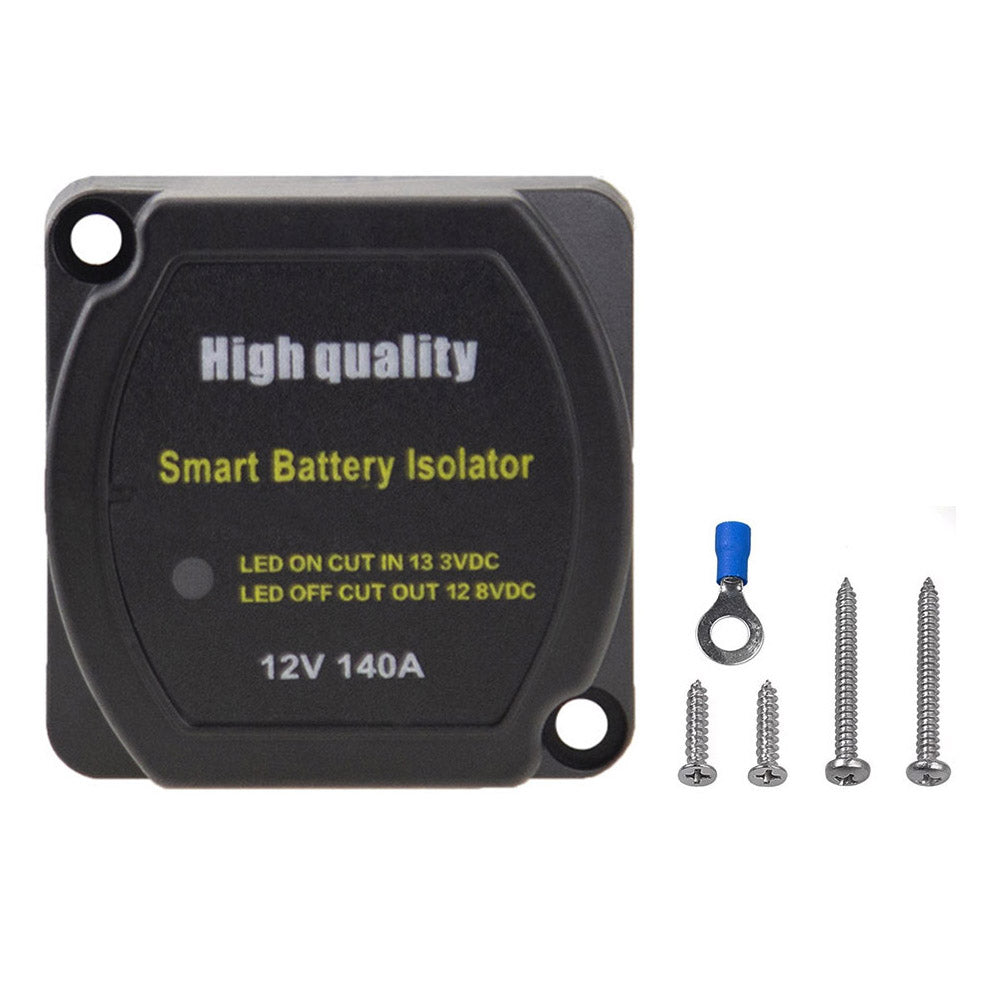

- 1Pcx 12v Voltage Sensitive Relay
Note:
- Please allow 1-3cm differences due to manual measurement.
- Due to the difference between different monitors,the picture may not reflect the actual color of the item.Thank you!
No Retail Box,Packing Safely in Bubble Bag.
