Features:
- Large capacitance.The chip capacitor and the base plate are soldered.

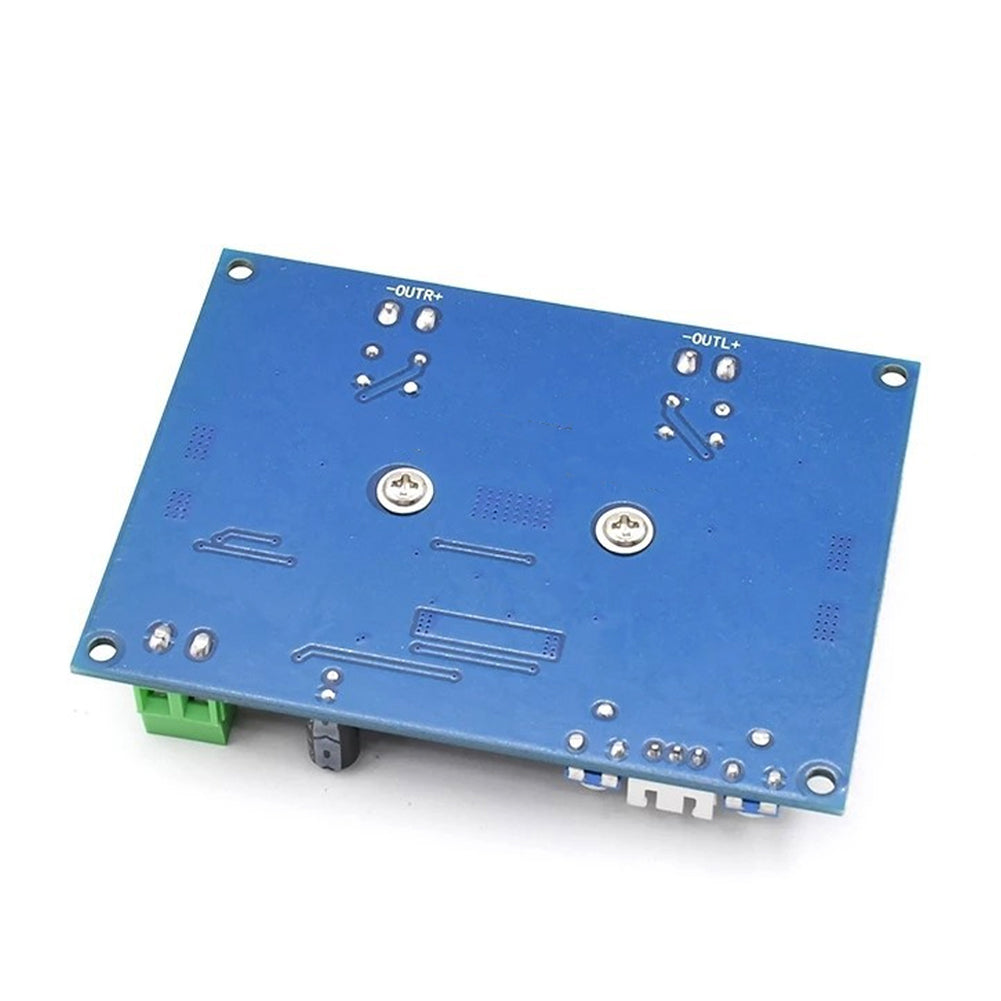

- There are no solder joints on the back of the circuit board,so there is no possibility of short circuit.
- Chip capacitors are higher than ordinary capacitors in term of component selection and production process cost.
Specification:
- Chip:TPA3116D2
- Condition:XH-M543
- Amplifier type:Class D
- Supply Voltage:DC12V-26V
- Dissipation Power:120W*2
- Channels:2(2.0)
- Output impedance:4-8ohm
- Current:more than 3A
- Signal to noise ratio:100db
- Color:Blue&Black

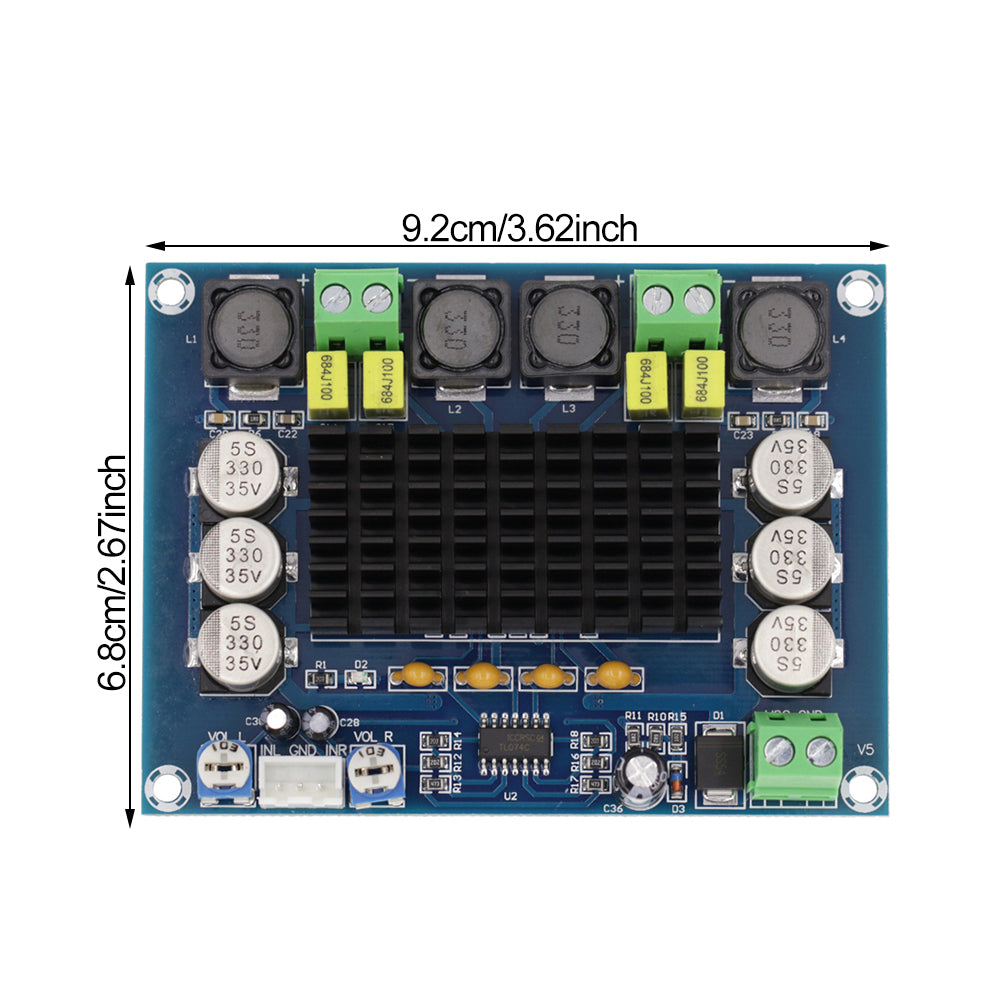

- Size:9.2cm/3.62inch x 6.8cm/2.68inch x 1.6cm/0.63inch.
Package Included:

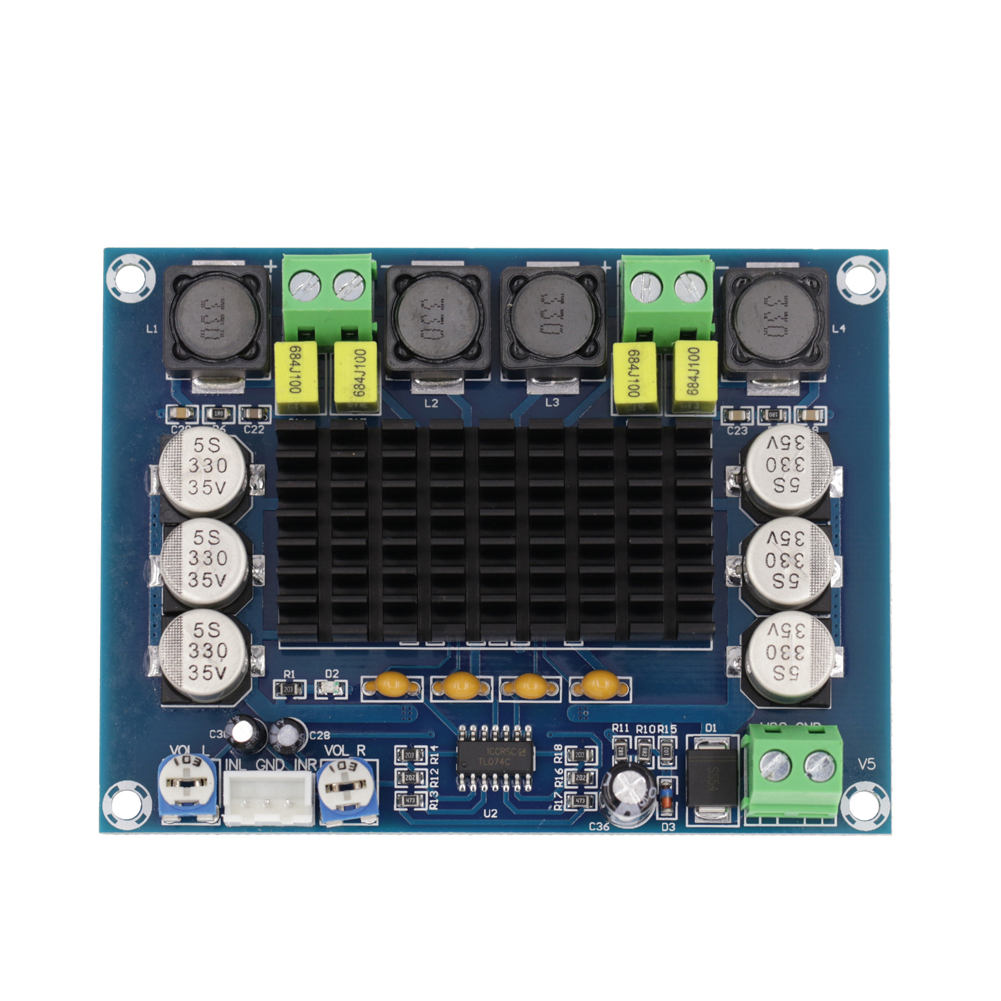

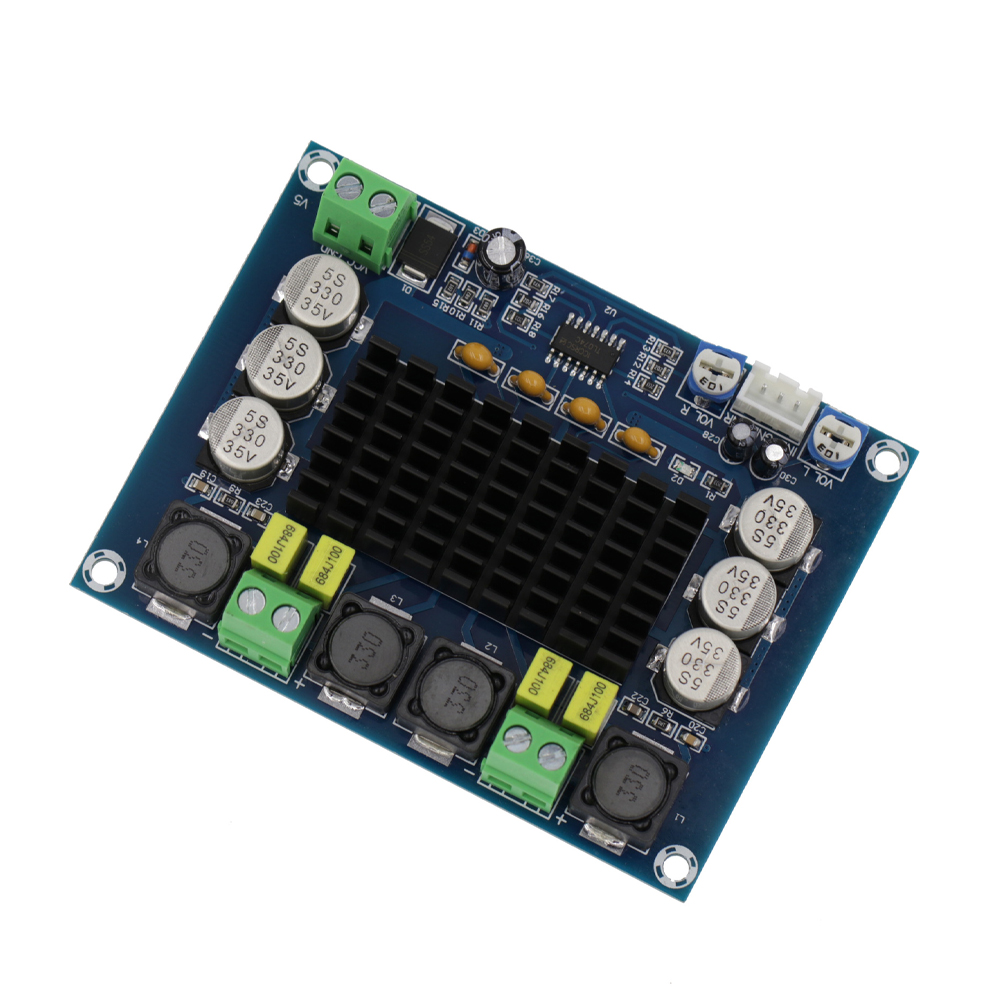

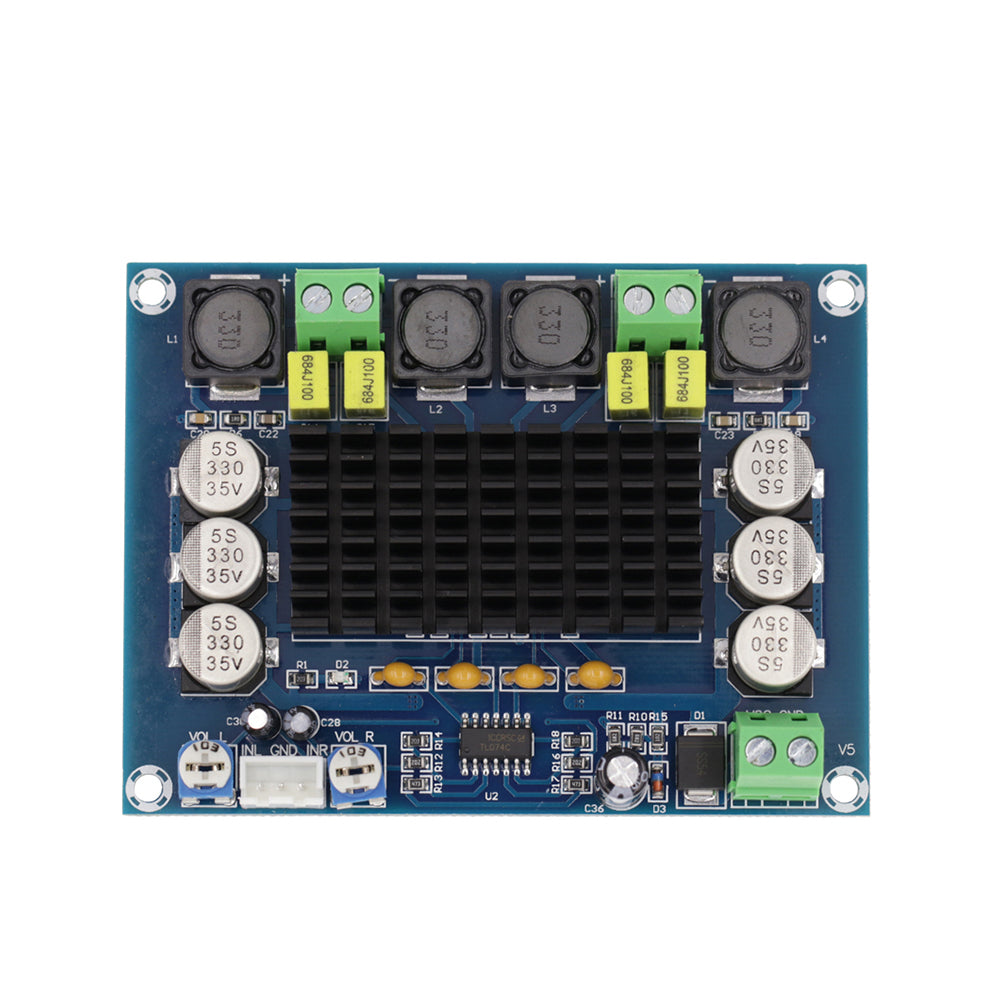

- 1 x Digital Power Audio Amplifier Board

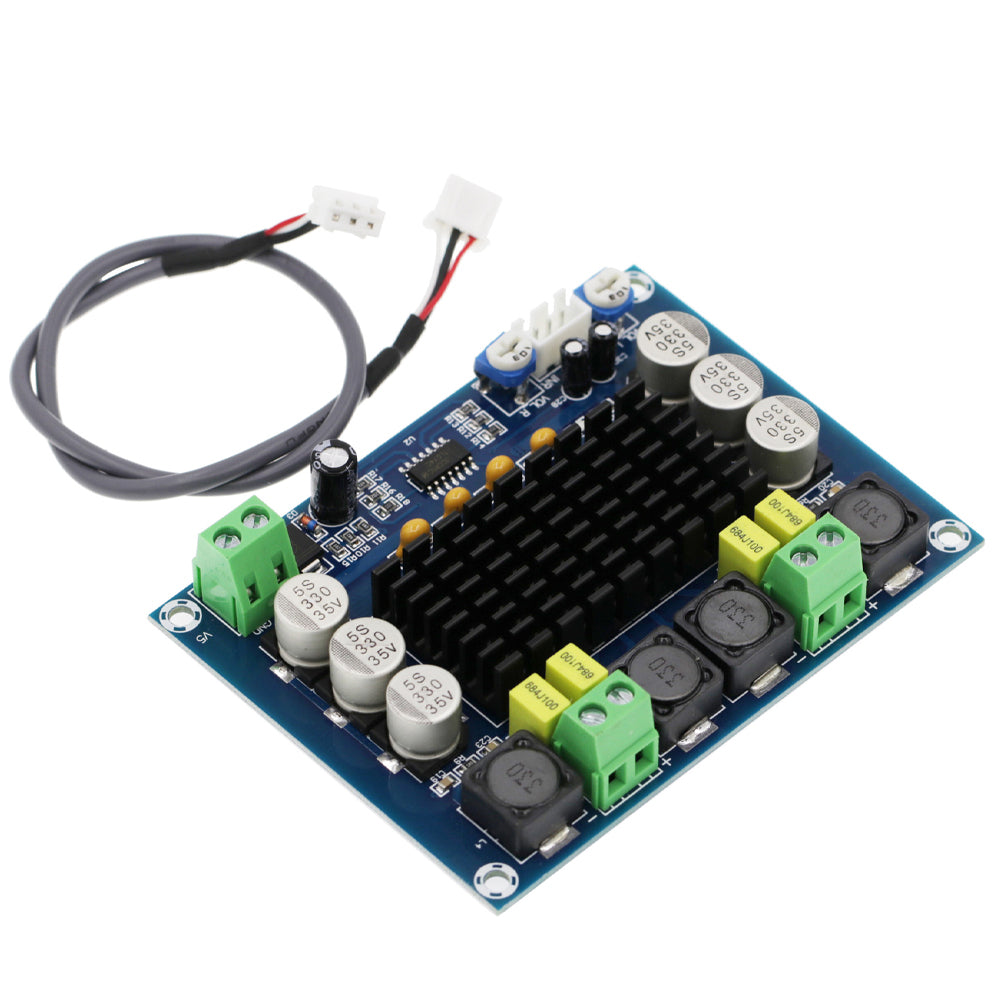

- 1 x Cable
NO Retail Box. Packed Safely in Bubble Bag.
