Features:
- high-accuracy voltage detection circuit;
- terminal of the charger using high voltage device;
- Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
- MOS transistor can control the battery charge and discharge;
Specifications:
- Over charge voltage: 4.25±0.05V
- Over charge release voltage:4.23±0.05V
- Over discharge voltage:2.54±0.1V
- Maximal continuous charging current: 2A
- Maximal continuous Discharging current: 2A
- Over current protection: 3A

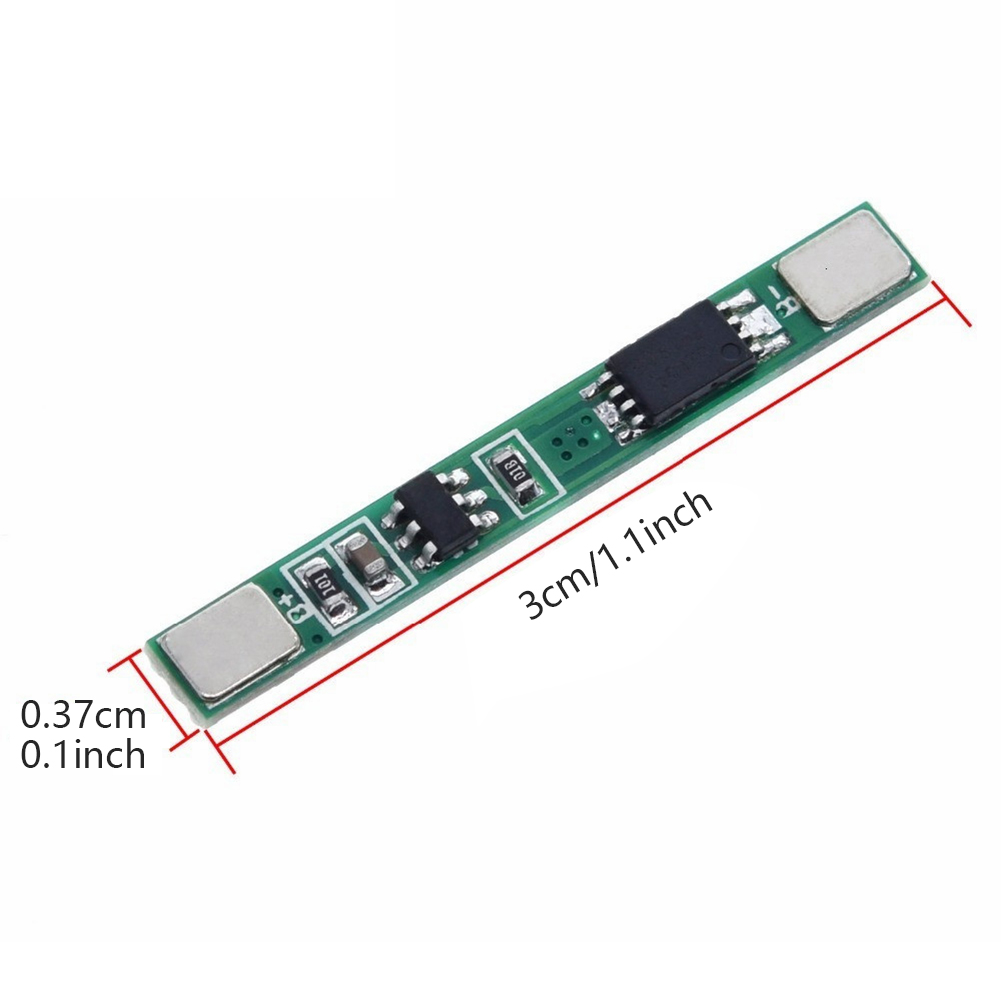

- Size: L40*W4*T3mm
- Weight: 10g
Package List:

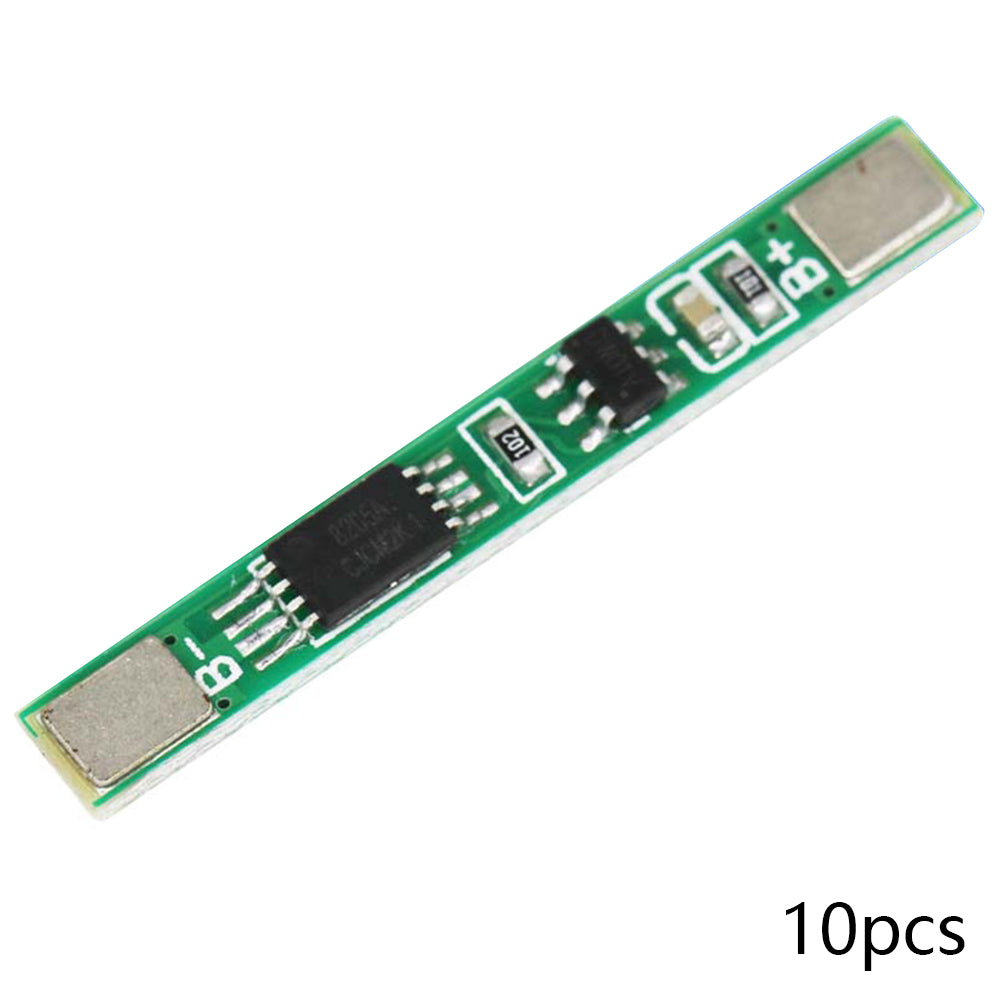

- 10 * protection board
NO Retail box,Packed safely in Bubble bag.
