- The controller automatically ADAPTS to 12V/24V by default. Before installing the controller for the first time, ensure that the battery is connected and secured. There is enough voltage so that the controller can recognize the correct battery type.
- Install the controller as close to the battery as possible to avoid voltage drop caused by too long cables, which affects the normal voltage judgment.
- This controller is only applicable to B1 lead-acid batteries, B2 lithium batteries, B3 lithium iron phosphate batteries,Lithium batteries / Lead-acid batteries / Lithium iron batteries.
- This controller can only use photovoltaic panel as charging power supply. Do not use DC or other power sources as charging power sources.
- The controller will be hot when running, please pay attention to install the controller on a flat and well-ventilated surface.

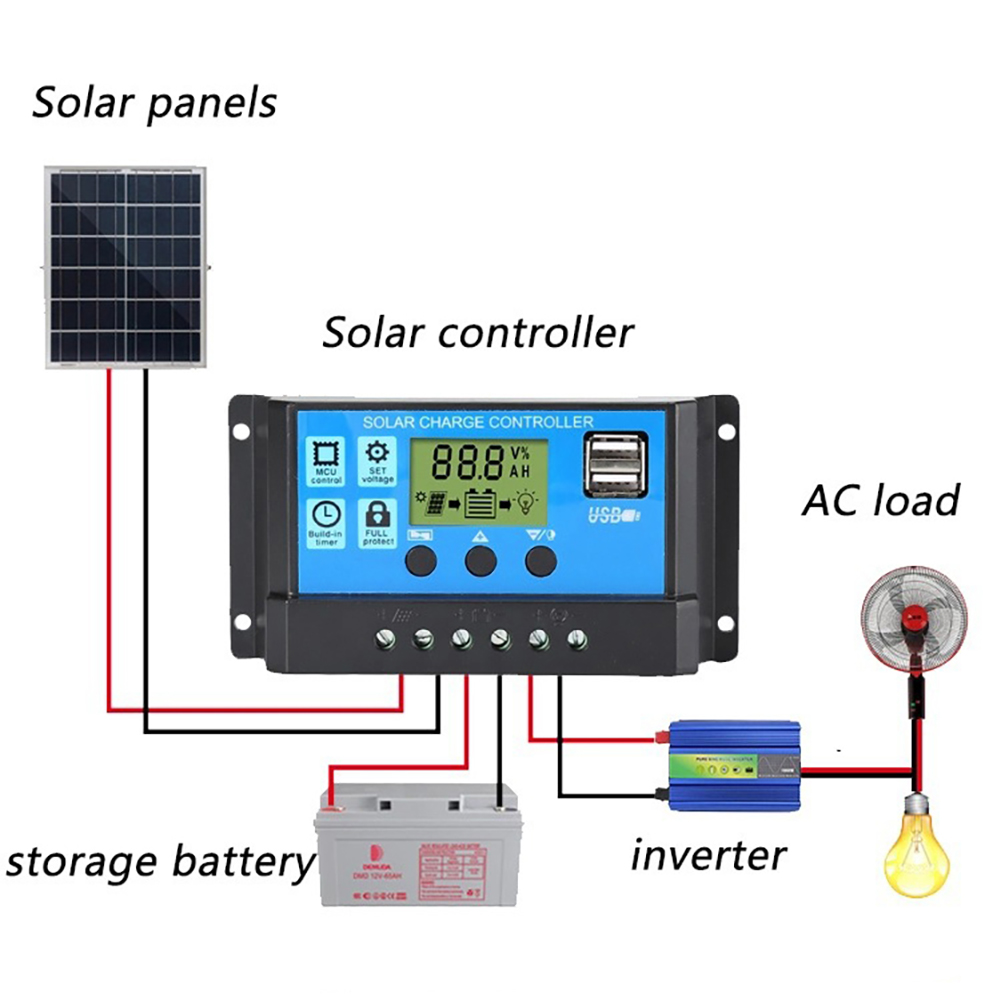

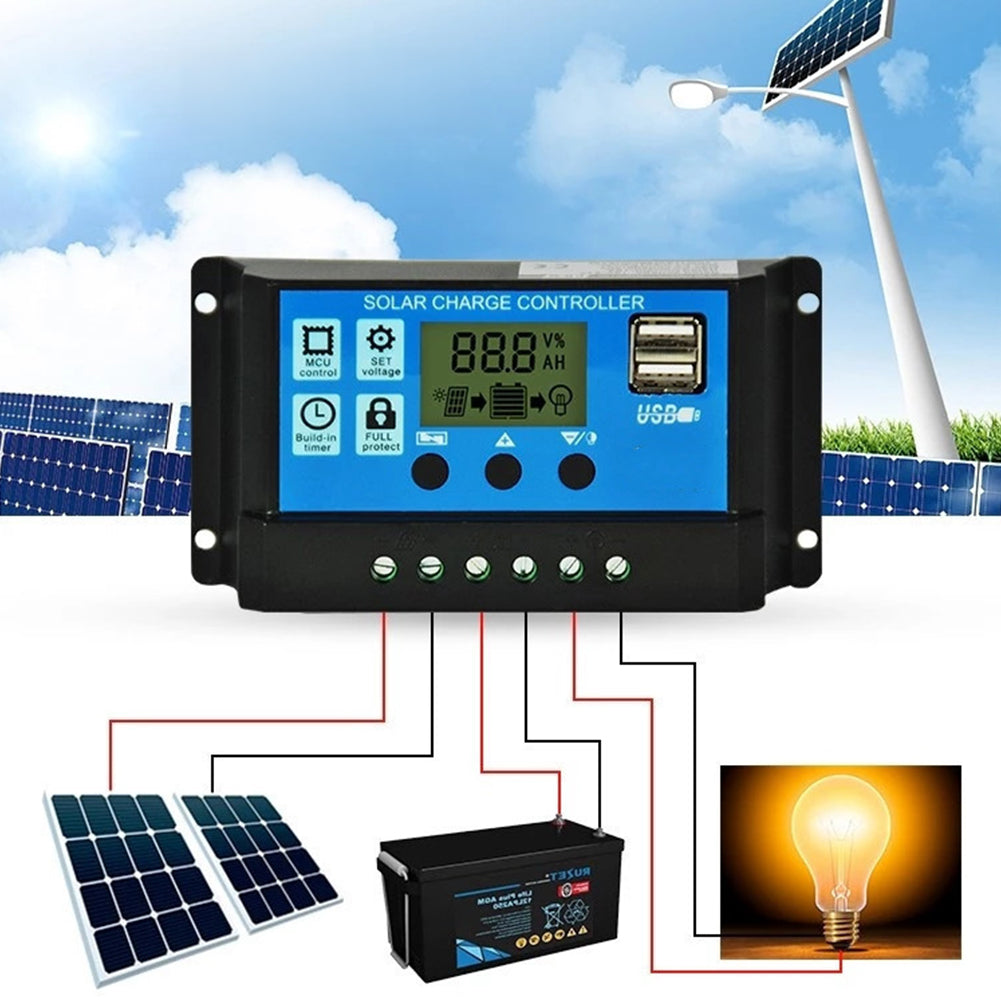

- Connect the battery to the charge regulator-plus and minus.
- Connect the photovoltaic module to the regulator-plus and minus.
- Connect the consumer to the charge regulator-plus and minus.
- The reverse step applies when uninstalling!
- An incorrect sequence step can damage the controller!
Specifications:
- Material:ABS
- Color:Blue
-
Box Size:13.7*7.7*4cm/5.39*3.03*1.57inch
Note:
- There could be some slight differences in the color tone of the pictures and the actual item.
- Please allow 1-3cm differs due to manual measurement, thanks.
Package Included:

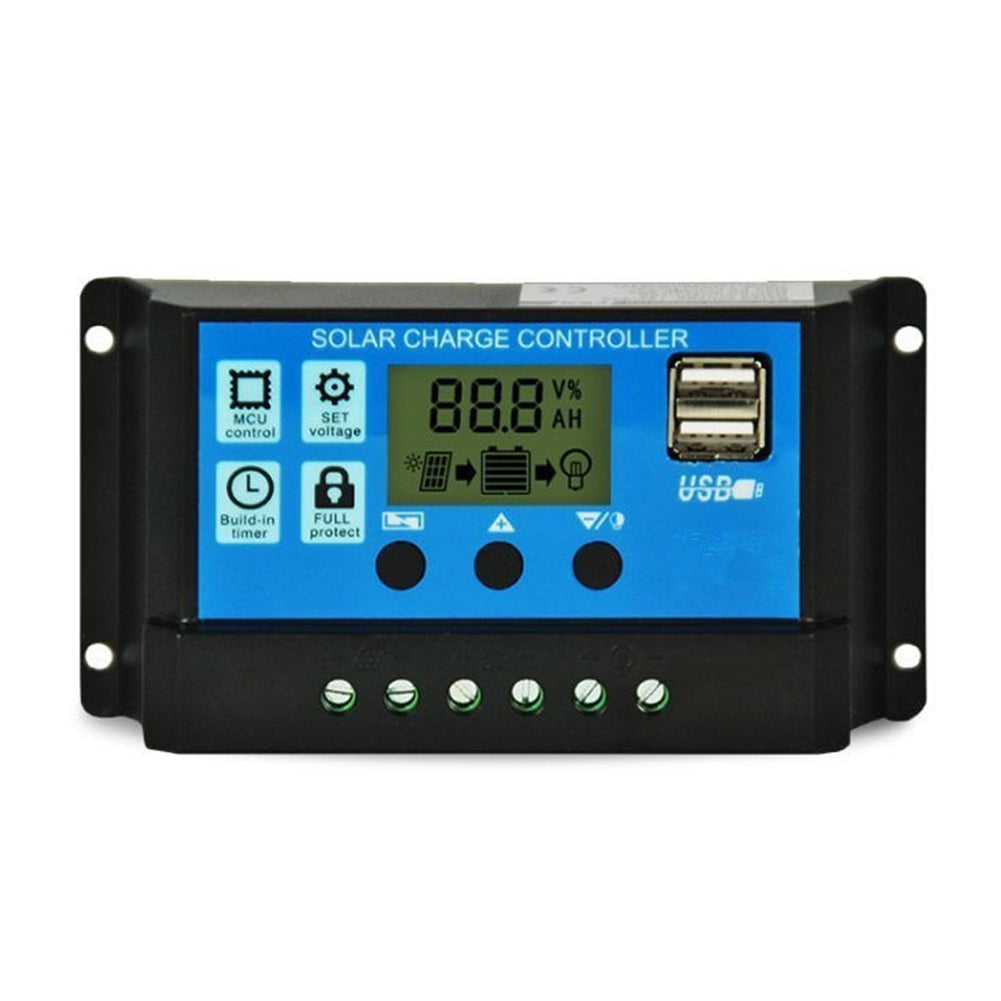

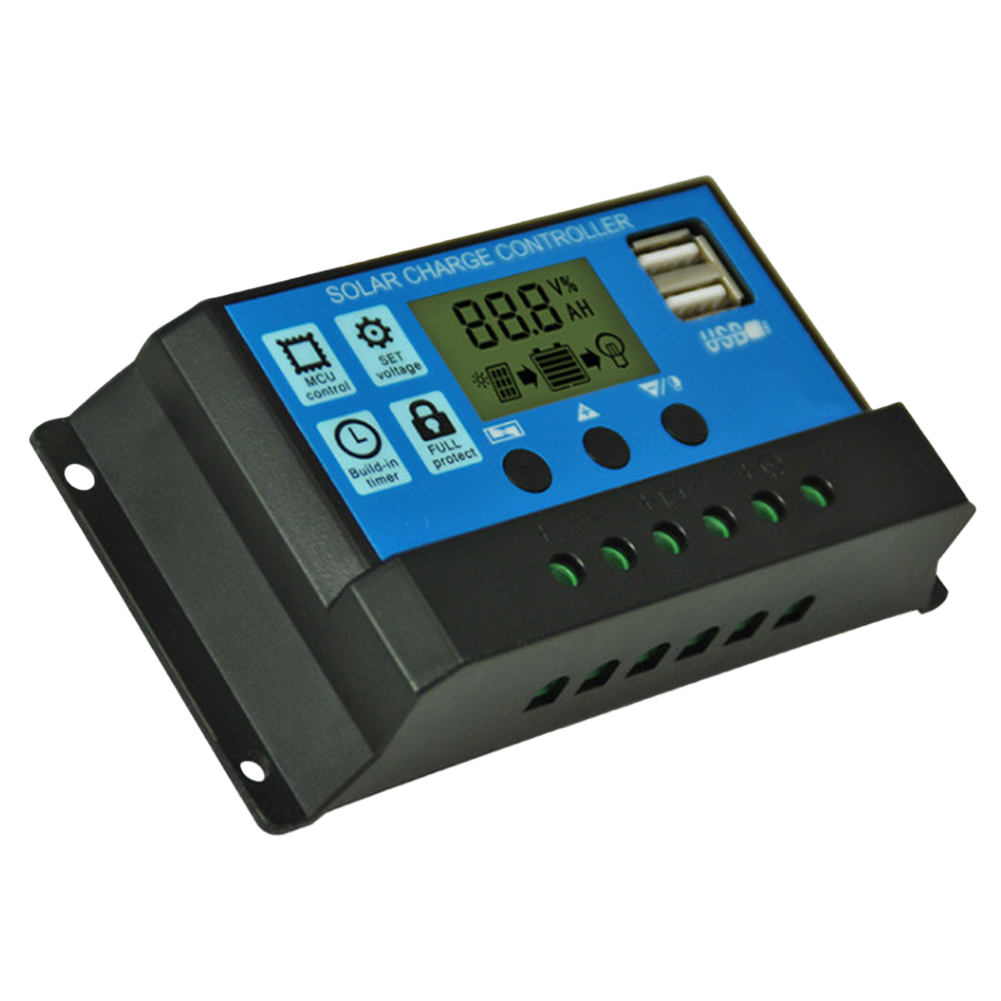

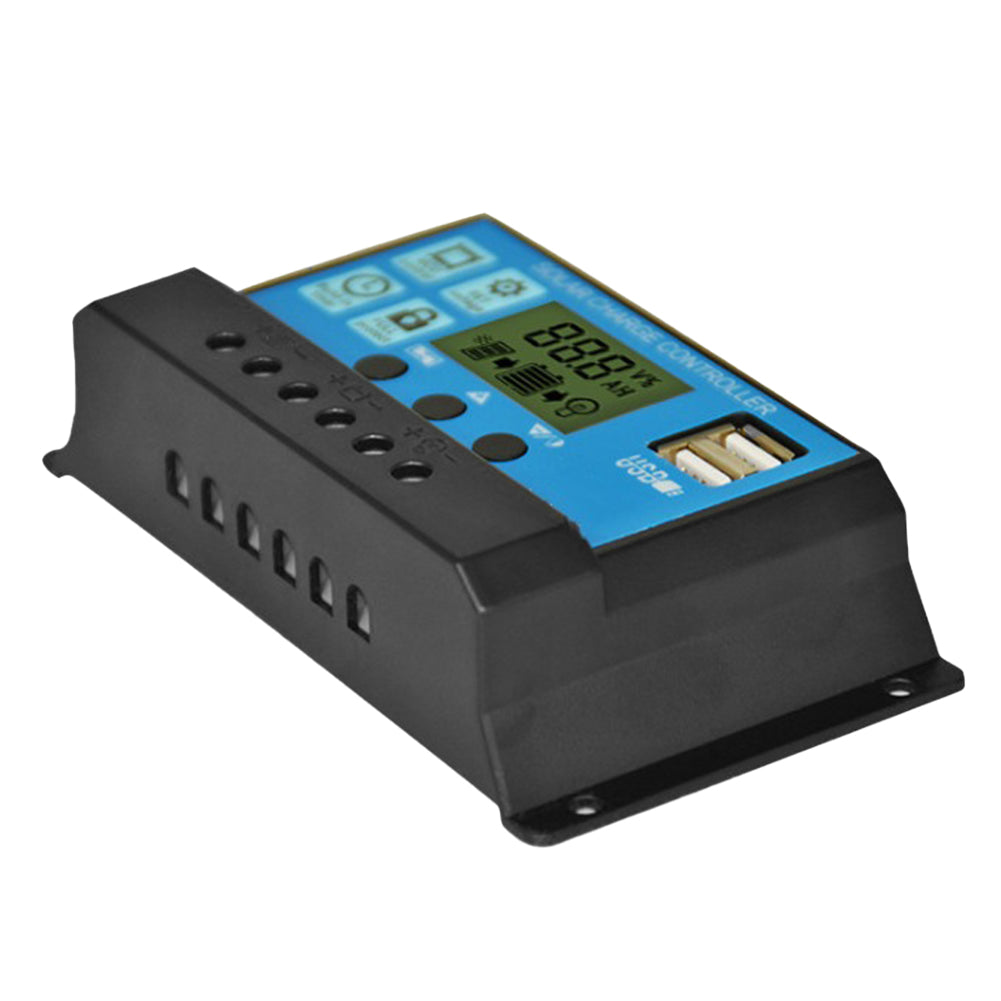

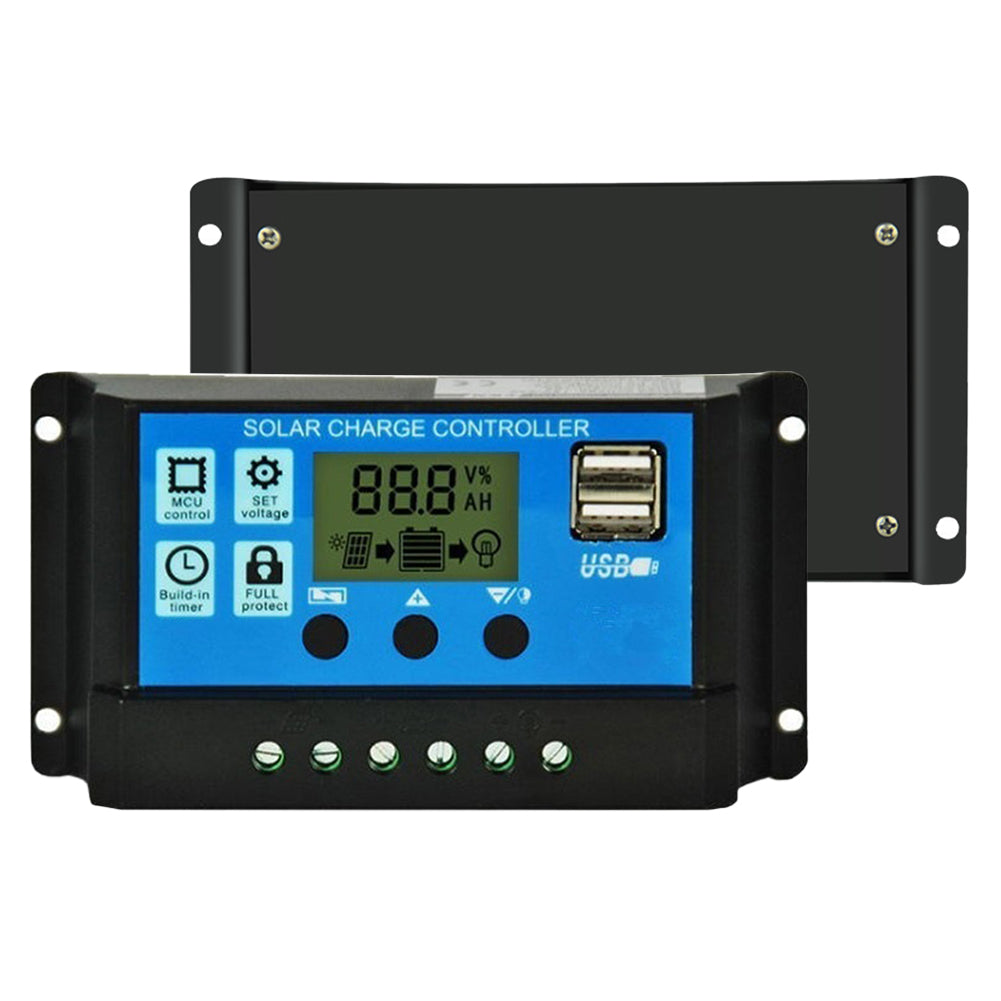

- 1PC x Solar Charge Controller
